Description
Overview:

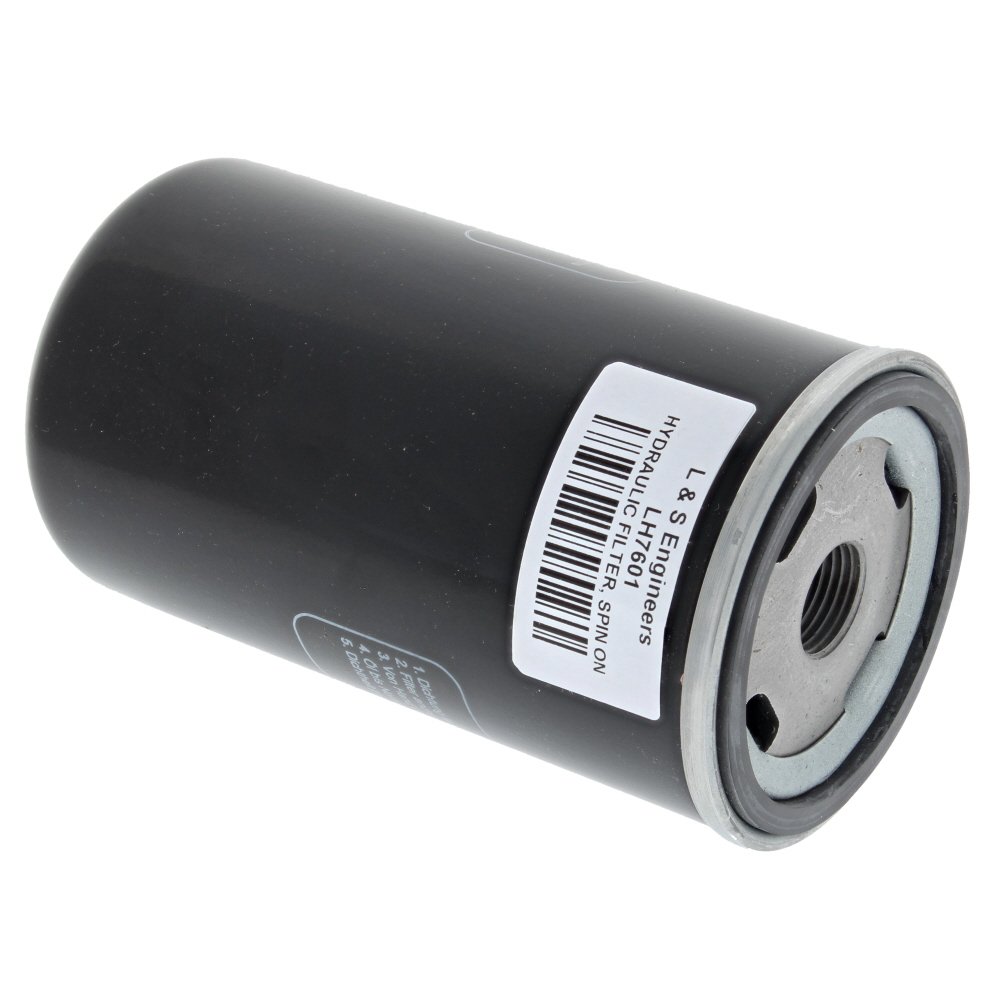

The Hydraulic Filter Spin On with dimensions 118 x 76mm, OEM number Baldwin BT8384, is a Genuine part for Liebherr machinery. It filters hydraulic fluid to remove contaminants, protecting the hydraulic system from wear and damage. It is located in the hydraulic circuit and is essential for fluid cleanliness. This filter fits a wide range of Liebherr models, including LR611, PR711, and SX3000H.
Key Features:
- Genuine OEM part
- Dimensions: 118mm height x 76mm diameter
- Replaces Baldwin BT8384
- Protects hydraulic components by filtering out particles
- Compatible with multiple Liebherr models
Typical Applications:
Used in construction machinery to maintain clean hydraulic fluids, essential for the smooth operation of the hydraulic system in various Liebherr machines.
Also known as:
Spin On Hydraulic Filter, Baldwin Spin On Filter, Hydraulic Fluid Filter BT8384
Fits Models:
LR611 LH, LR611LH, LR611M, LR621B, LR621C, Liebherr LR611, PR711, PR721C, SXR 3500 H, SX3000, SX3000H, 3500 PS H, 2304, 2310 S SD SDO SSD, 2311 SD, 2315 SD SDO, 2320 D, 2410 S SD SS SSD, 2411 S SD, 2414 SD, 3011 D, 3012 DS, 4010, 4011, 4012, DV 2, DV 3, DV 3 K, DV 6 K, DV 6 21, DV 6 4K, DV 8 D D K S D TANDEM, DV 8 21, HD 85 K, 5000 H, 5002 H, 8000H, MACH 078 2, MACH 079 2
Alternate Part Numbers:

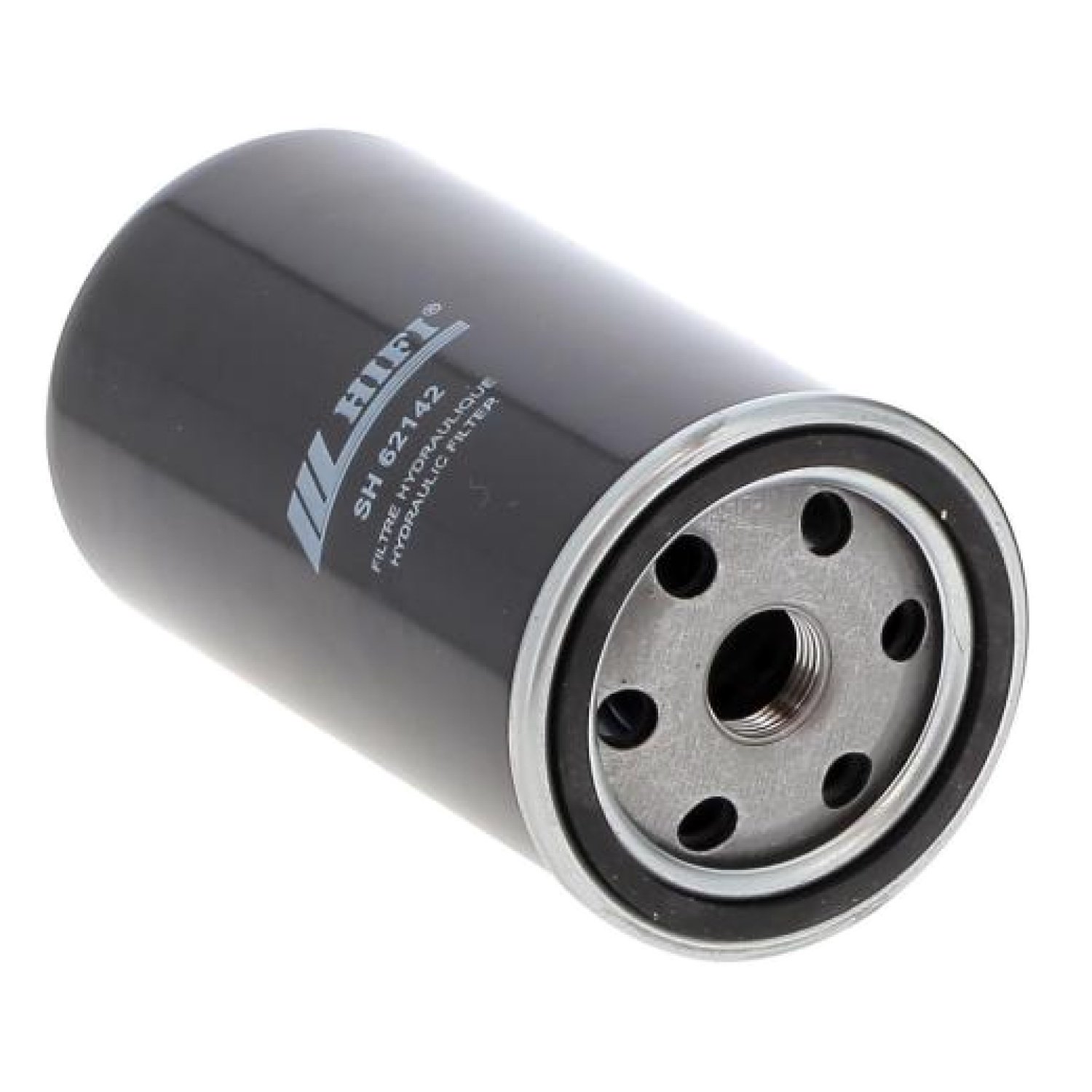

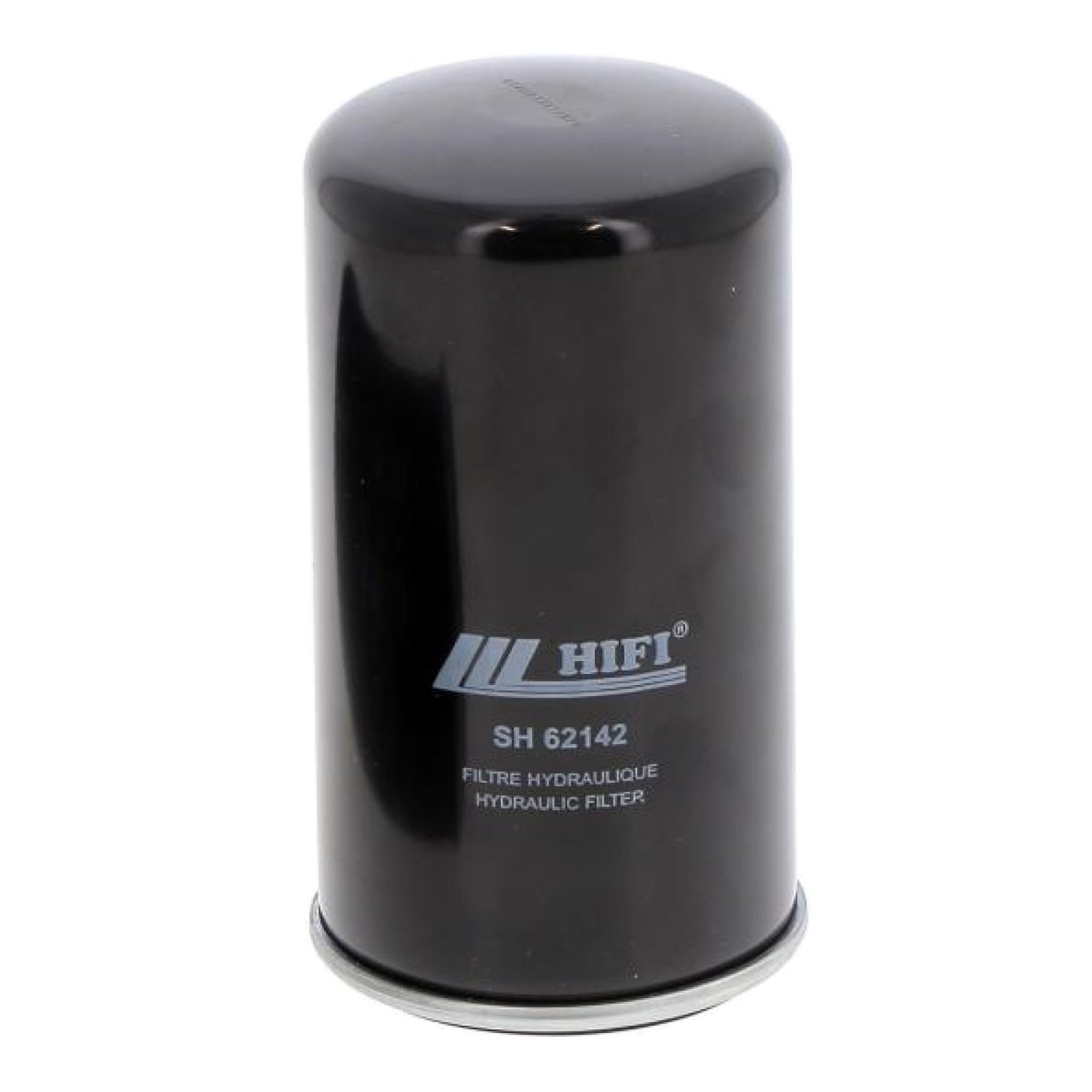

000.983.06.23, FIN-FH50811, 0009830613, 0009830623, 6740358100, 6740359966, FINFH50811, 6740358010, 9624251000, 0009830618, FBW-BT8384, 0009830628, SF SPH9268, FBWBT8384, HFR835077, SFSPH9268, D45144600, SPH 9268, 21917019, SH 62142, 45144600, 2191700, SH62142, FH50811, 7003036, SH62037, WD724/3, LFH5896
Product Specifications
| L&S Part No. | LH7601 |
|---|---|
| Unit of Sale | 1 |
| Size | Size: 118 x 76 x 76mm x Thread: 3/4-16 UNF |
| Fits Brands | Atlas Copco, Baldwin, Barford, Benford, Fleetguard, Greyfriars, Hamm, Linde, Mann & Hummel, Schuup, Sullair, Thwaites, Woodgate |
| Key Features | - Spin-on hydraulic filter measures 118 x 76mm - Replaces Baldwin BT8384 filter - Compatible with multiple Liebherr models - Matches OEM numbers like 000.983.06.23 - Genuine OEM replacement part |

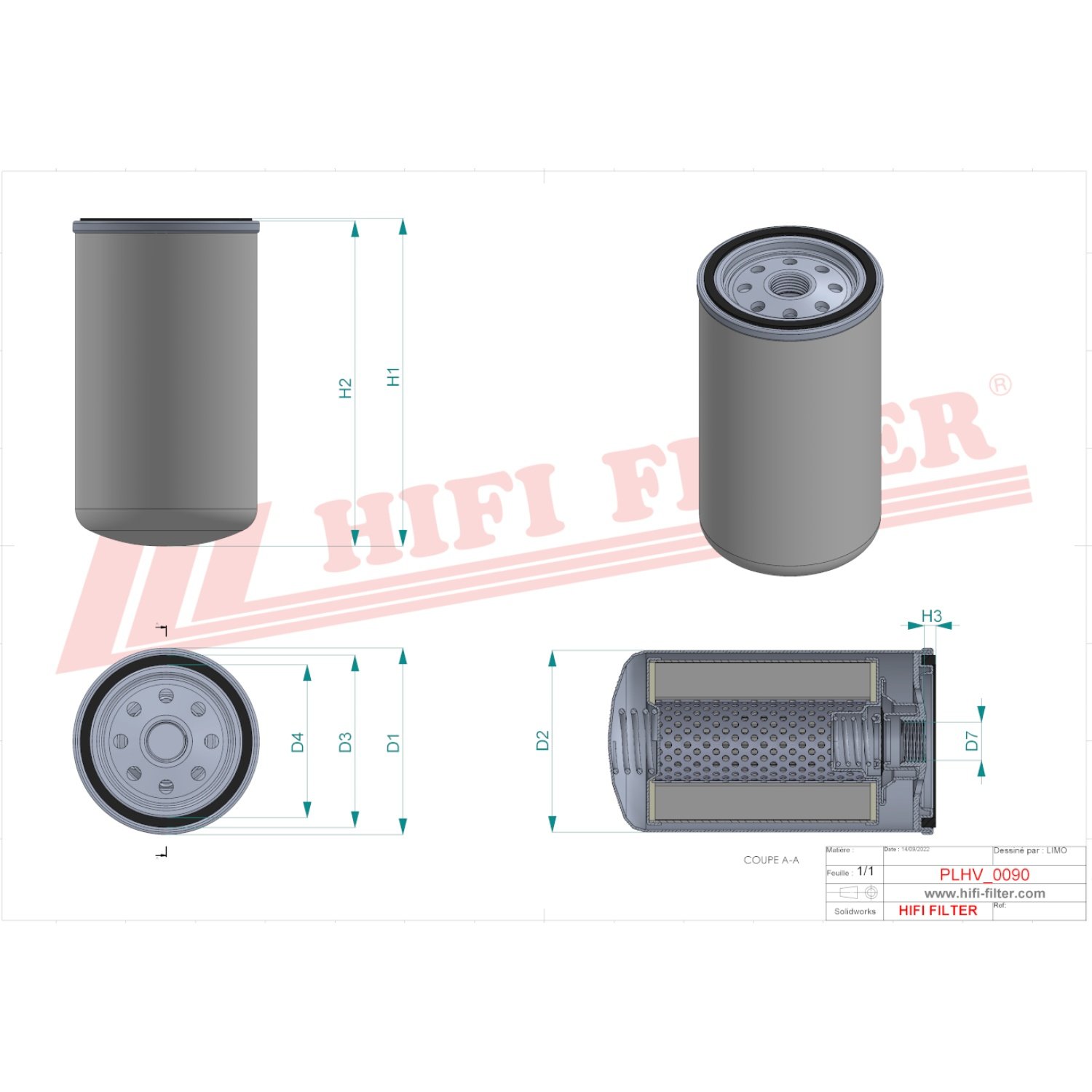

| Filter Specifications | D1: 78.5mm D2: 76.5mm D3: 72mm H1: 141mm H2: 139.5mm H3: 5mm Thread: 3/4"-16UNF By-pass valve: 1 |
| Fits Models | SX3000 |
