Description
Overview:

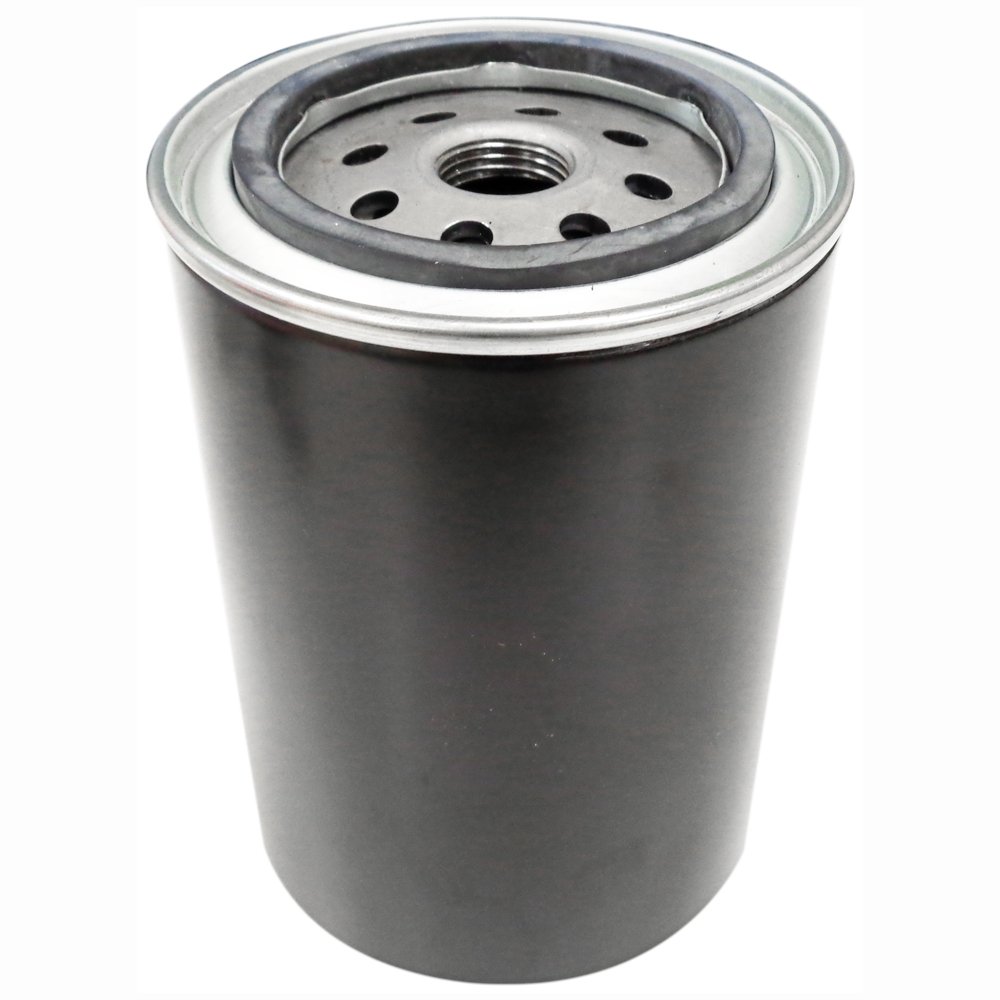

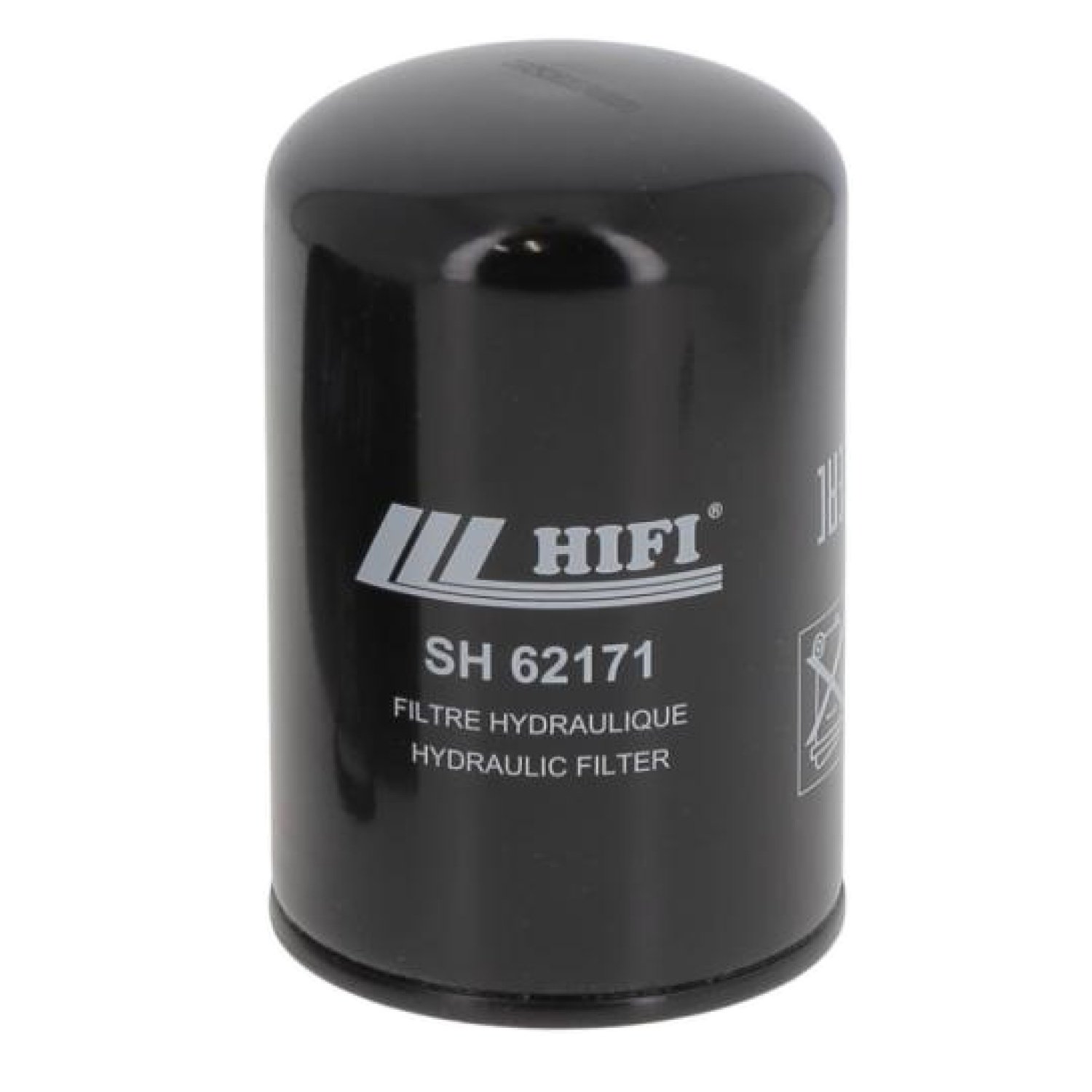

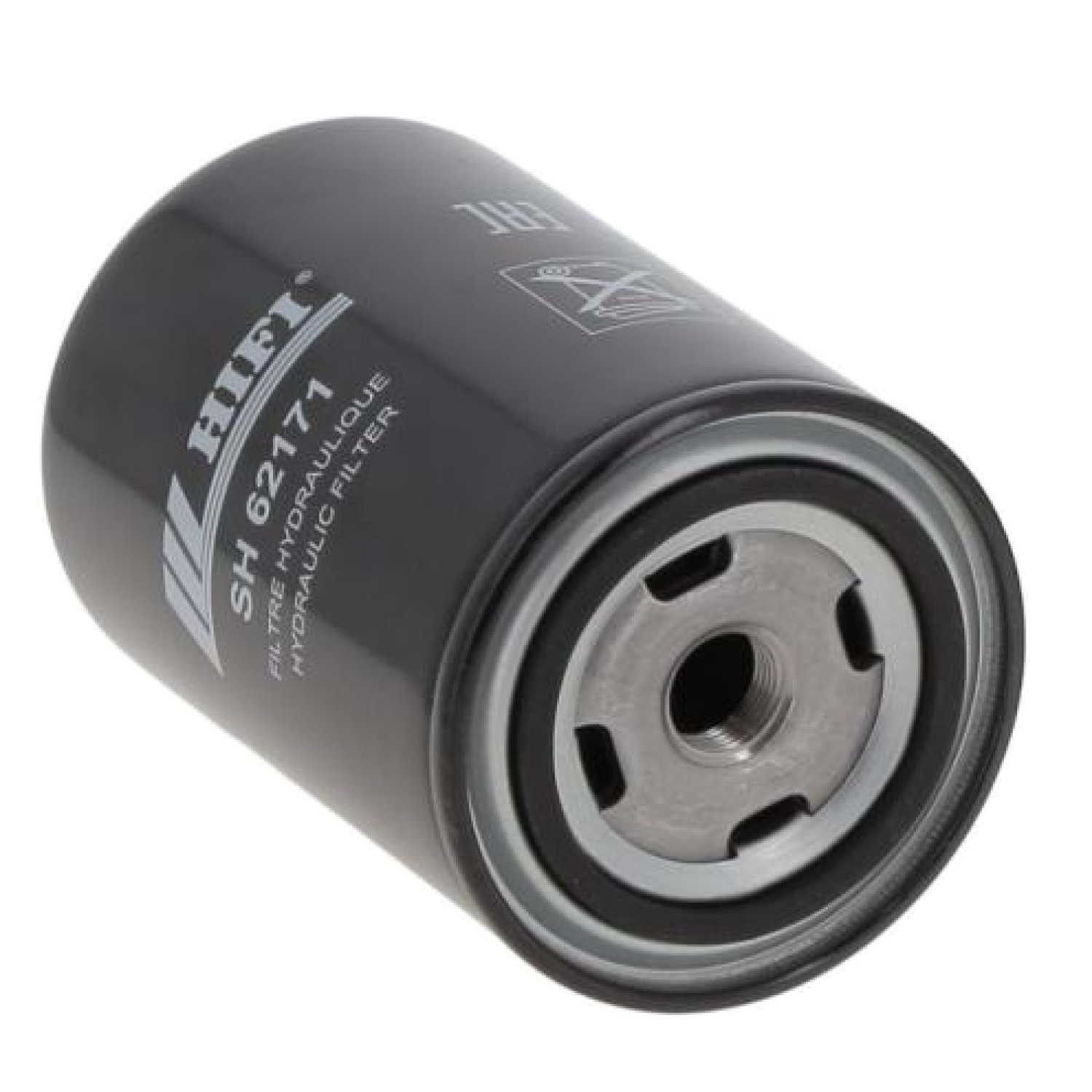

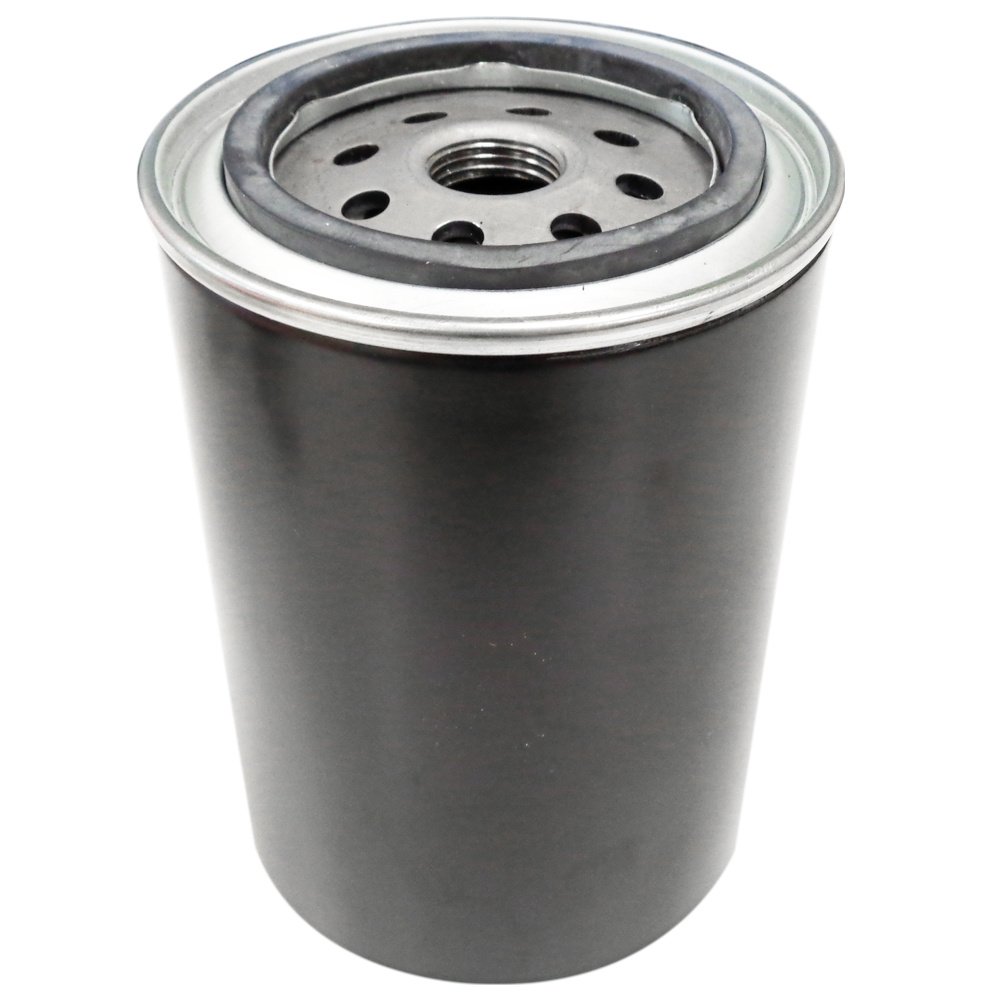

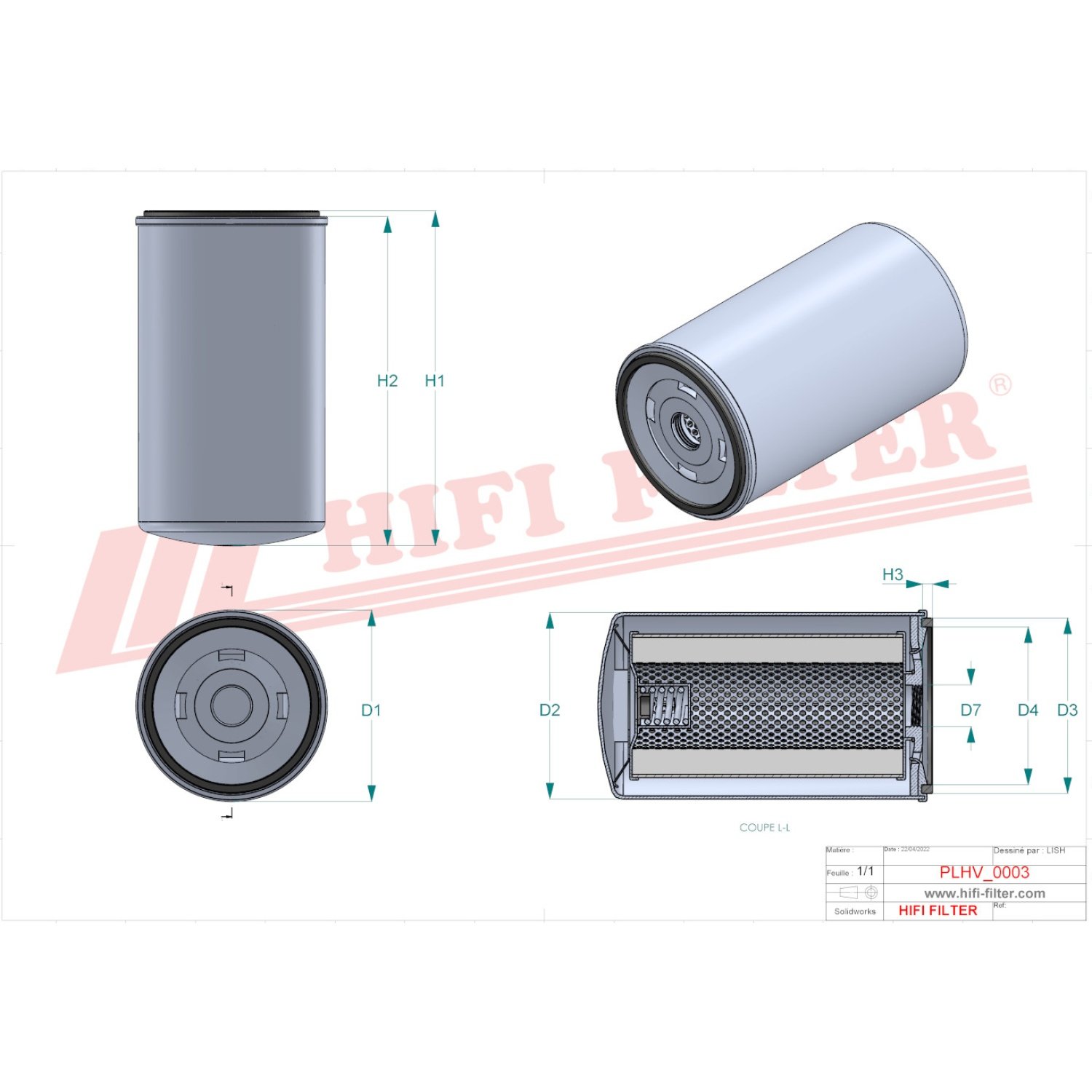

This spin-on hydraulic filter is a Non Genuine Part designed as a quality aftermarket replacement for worn or blocked filters in hydraulic systems. It uses a robust steel canister with an internal multi-layer media to help protect pumps, valves and actuators by capturing harmful particles from hydraulic oil. The compact cylindrical form makes it suitable for plant, industrial and agricultural machinery, as well as compressors from brands such as Compair. Key dimensions are 146 x 95 x 95 mm (approx. 146 mm overall height, 95 mm canister diameter). The thread is 3/4-16 UNF (3/4 in / 19.05 mm major diameter, 16 TPI ≈ 1.59 mm pitch) for straightforward fitment. It replaces references including Baldwin BT8922, Compair 4819974, TFS BSH8372 and Greyfriars HS7636.
Key Features:
- Spin-on design for quick, clean filter changes with minimal downtime
- Durable steel shell and baseplate for strength under typical hydraulic pressures
- Reliable sealing gasket for a secure, leak-resistant fit
- Designed to capture fine particulate and wear debris to help extend component life
- 146 mm height and 95 mm diameter to suit common hydraulic filter heads
- 3/4-16 UNF thread (3/4 in / 19.05 mm; 16 TPI ≈ 1.59 mm pitch) for wide compatibility
- Aftermarket alternative to Baldwin BT8922 and related OE numbers
- Suitable for use with mineral-based hydraulic oils in mobile and static equipment
Typical Applications:
Used on hydraulic return or charge circuits in compressors, excavators, loaders, agricultural machinery, fork trucks, industrial power packs and other equipment where a spin-on hydraulic oil filter with 3/4-16 UNF thread and 146 x 95 mm envelope is specified.
Also known as:
Hydraulic oil filter, spin-on canister filter, screw-on hydraulic filter, return line oil filter, hydraulic system filter element, compressor hydraulic filter, BT8922 replacement filter, aftermarket hydraulic filter cartridge.
Alternate Part Numbers:
SF SPH21002, FIN-FH50426, TFS BSH8372, Panther 178, 6.1985.1/A1, FBW-BT8922, PC302MIC25, FINFH50426, PANTHER178, 6750459326, SFSPH21002, Ben1703363, TFSBSH8372, BEN1703363, FBWBT8922, C47408P47, FPS3127-1, 05825002, 619851A1, FPS31271, 04819974, SH 62171, 5825002, 3636134, 5081724
Product Specifications
| L&S Part No. | LH7636 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Size: 146 x 95 x 95mm x Thread: 3/4-16 UNF |
| Fits Brands | Baldwin, Compair, Greyfriars, TFS |
