Description
Overview:

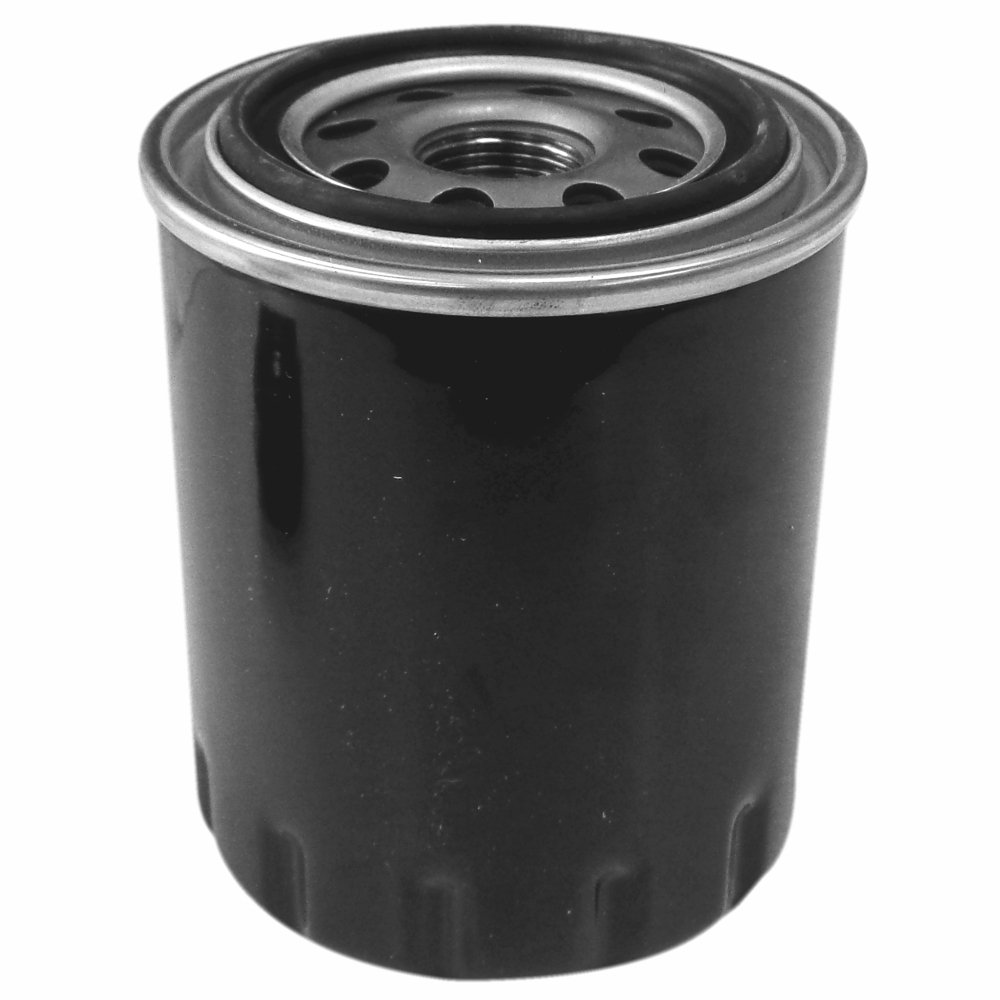

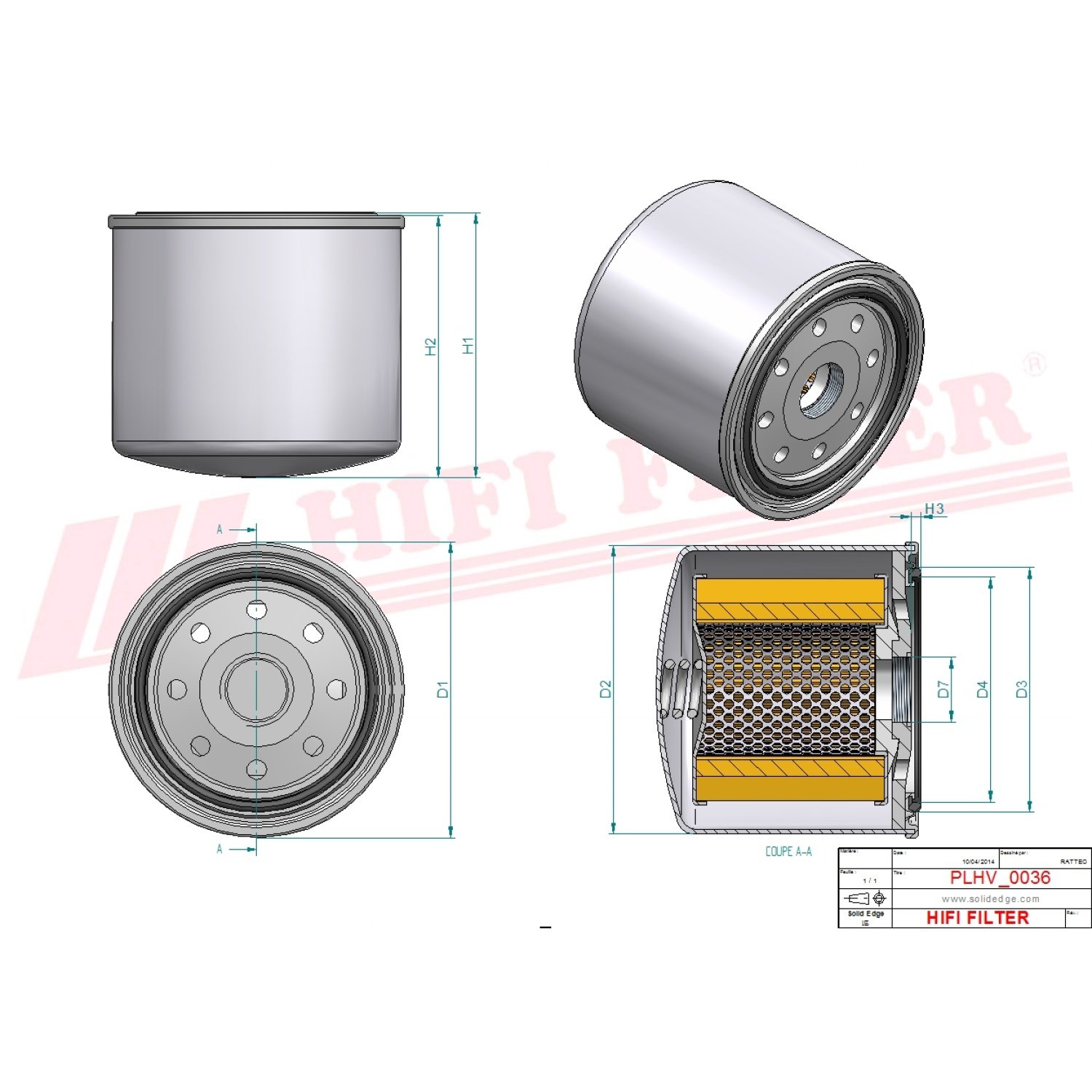

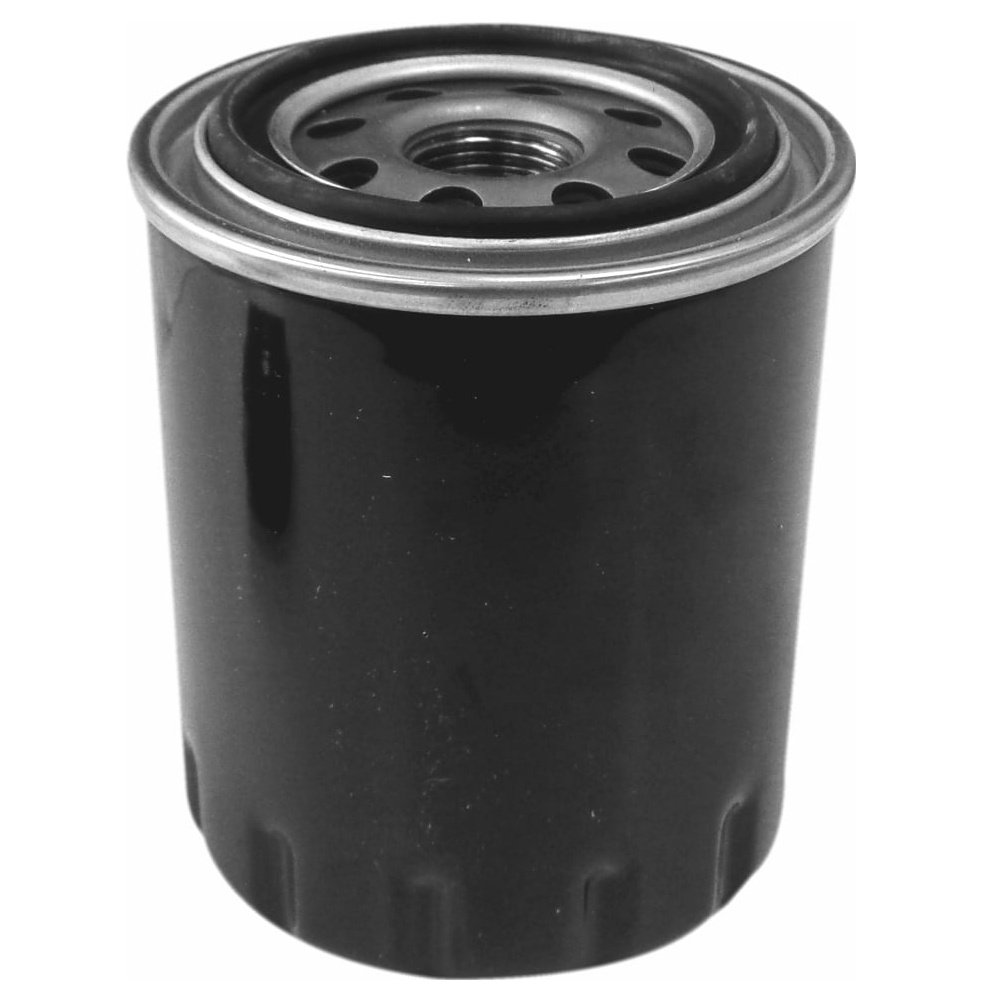

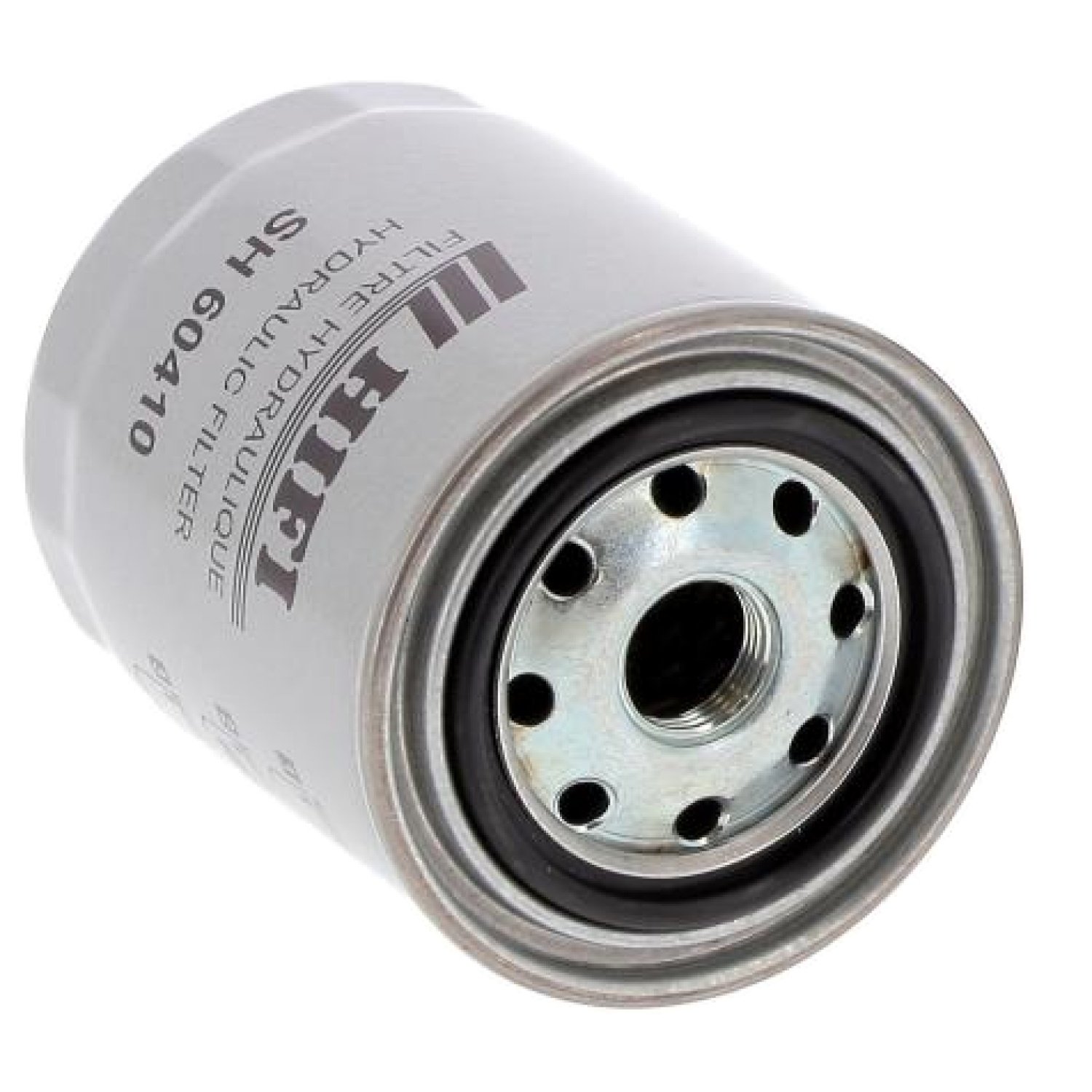

The Hydraulic Filter, Spin‐on Type, is a service replacement canister for protecting hydraulic circuits on compact tractors, ride‐on mowers, utility vehicles and mini excavators. Built with a durable steel shell, quality filter media and a reliable sealing gasket, it traps harmful particles to help maintain system pressure and component life. A built‐in anti‐drainback valve reduces backflow during shutdown and helps prevent dry starts. Typical applications include Kubota B‐Series and BX‐Series machines, and selected Fiat/Hitachi excavators such as the 9007. Dimensions: 100 mm height and 80 mm outer diameter; mounting thread 3/4"-16 UNF (approx. 19.05 mm major diameter). Spin‐on fitment allows quick changes with basic tools. Reference: MPN LH7635.
Key Features:
- Spin‐on canister for quick, clean replacement with basic hand tools
- Anti‐drainback valve to reduce backflow and help protect components at start‐up
- Size: 100 mm height, 80 mm outer diameter, 3/4"-16 UNF thread (approx. 19.05 mm)
- Robust steel body and quality media for dependable dirt‐holding performance
- Secure sealing gasket to minimise the risk of leaks
- Suitable for charge/return filtration on many compact tractors, mowers and excavators
- Helps protect pumps, valves and hydrostatic transmissions by capturing debris
- Broad compatibility across selected Kubota, Fiat/Hitachi, Kobelco and Isuzu‐powered machines
- Clear replacement reference: LH7635, cross‐replacing multiple OEM numbers
Typical Applications:
Used for routine hydraulic maintenance on compact tractors, out‐front and ride‐on mowers, UTVs and mini to mid‐size excavators. Common in landscaping, grounds maintenance, agriculture, plant hire and construction tasks such as digging, grading and materials handling, where reliable hydraulic performance is essential.
Also known as:
Hydraulic canister filter, hydraulic return‐line filter, hydrostatic charge filter (HST), hydraulic oil cartridge, HST charge element, hydraulic canister element.
Fits Models:
9007, AX 08, AX08, B 1550HST-D, B 1550HST-E, B 1700HST-D, B 1750HST-D, B 1750HST-E, B 21, B 2100HST-D, B 2110HST-D, B 2320DTN, B 2400HST-D, B 2410HSD, B 2410HSDB, B 2410HSE, B 2530, B 26, B 2630HSD, B 2710HSD, B 2910HSD, B 3030HSD, B 3030HSDC, B 3200HSD, B 4200D, B 6100HST-DT, B 6100HST-E, B 6200D, B 6200E, B 6200HST-D, B 6200HST-E, B 7100HST-DT, B 7100HST-E, B 7100HST-II-DT, B 7200HST-D, B 7200HST-E, B 7300HSD, B 7400HSD, B 7500HSD, B 7510HSD, B 7610HSD, B 7800HSD, B1550HST-D, B1550HST-E, B1700HST-D, B1750HST-D, B1750HST-E, B21, B2100HST-D, B2110HST-D, B2320DTN, B2400HST-D, B2410HSD, B2410HSDB, B2410HSE, B2530, B26, B2630HSD, B2710HSD, B2910HSD, B3030HSD, B3030HSDC, B3200HSD, B4200D, B6100HST-DT, B6100HST-E, B6200D, B6200E, B6200HST-D, B6200HST-E, B7100HST-DT, B7100HST-E, B7100HST-II-DT, B7200HST-D, B7200HST-E, B7300HSD, B7400HSD, B7500HSD, B7510HSD, B7610HSD, B7800HSD, BWR 650, BWR650, BX 1500D-48, BX 1500D-54, BX 1800D, BX 1830D, BX 1850D, BX 1860D, BX 22, BX 2200D, BX 2230D, BX 2350D, BX 2360, BX 23LB-B, BX 23LB-T, BX 24, BX 25, BX 2660, BX1500D-48, BX1500D-54, BX1800D, BX1830D, BX1850D, BX1860D, BX22, BX2200D, BX2230D, BX2350D, BX2360, BX23LB-B, BX23LB-T, BX23LBB, BX23LBT, BX24, BX25, BX2660, C 50, C 8R, C50, C8R, CX 50, CX50, EX8, F 1900E, F 2000, F 2100, F 2100E, F 2260R, F 2400, F 2560E, F 2680E, F 2880, F 2880E, F 3060, F 3060-R, F 3080, F 3560, F 3680, F1900E, F2000, F2100, F2100E, F2260R, F2400, F2560E, F2680E, F2880, F2880E, F3060, F3060-R, F3060R, F3080, F3560, F3680, FZ 2100, FZ 2400, FZ2100, FZ2400, G 1700S, G 18, G 1800, G 1800S, G 1900, G 1900S, G 2000, G 21, G 2160, G 2160-R48S, G 2460G, G 4200H, G 5200H, G 6200H, G1700S, G18, G1800, G1800S, G1900, G1900S, G2000, G21, G2160, G2160-R48S, G2460G, G4200H, G5200H, G6200H, GF 1800, GF 1800E, GF1800, GF1800E, GR 1600, GR 2000G, GR 2010G, GR 2010GB, GR 2100, GR 2110, GR1600, GR2000G, GR2010G, GR2010GB, GR2100, GR2110, HM 07SG, HM07SG, K 903 Mark II, K 903B, K 903C, K 904 Mark II, K 904D, K 904E, K 905, K 905 Mark II, K 905A, K 907 Mark II, K 907C.LC, K 907D, K 909A, K 914, K903B, K903C, K903MarkII, K904D, K904E, K904MarkII, K905, K905A, K905MarkII, K907C.LC, K907CLC, K907D, K907MarkII, K909A, K914, KH 31, KH 35, KH 36, KH 41, KH 41 G, KH 5, KH31, KH35, KH36, KH41, KH41G, KH5, N 08-02, N 080-2, N 350-2 3160050, N 350-2 3160051, N08-02, N080-2, N0802, N350-23160050, N350-23160051, RTV 1100, RTV 900, RTV1100, RTV900, SFH 220, SFH 240, SFH220, SFH240, SK 045, SK 045-2, SK 100, SK 100-III, SK 200, SK 60, SK045, SK045-2, SK0452, SK100, SK100-III, SK200, SK200LCSerieYQ01101-, SK200SerieYN06501-, SK60, ST 35, ST35, STA 30 ALPHA, STA 35 ALPHA, STA30ALPHA, STA35ALPHA, STV 32, STV 36, STV 40, STV32, STV36, STV40, UE07, YB 101, YB101, ZD 21, ZD 28, ZD21, ZD28, EX 8, ZX 8 2, ZX 10U2, G1700, G1800 S, G1900 S, G2000 S, G2160 DS, G2160AU, GR2120 2, ZX82, ZX10U2, G2000S, G2160DS, GR21202, B1550HSTD, B1550HSTE, B1700HSTD, B1750HSTD, B1750HSTE, B2100HSTD, B2110HSTD, B2400HSTD, B6100HSTDT, B6100HSTE, B6200HSTD, B6200HSTE, B7100HSTDT, B7100HSTE, B7100HSTIIDT, B7200HSTD, B7200HSTE, BX1500D48, BX1500D54, G2160R48S, K903MARKII, K904MARKII, K905MARKII, K907MARKII, N35023160050, N35023160051, SK100III, SK200LCSERIEYQ01101, SK200SERIEYN06501
Alternate Part Numbers:
1771-510-2510-0, K1019-091-2000, K1019.091.2000, YSK C-SP04-10, 177151025100, 68051-6222-0, 68051-6222-1, K10190912000, 66021-3606-0, 66021-3606-1, CS 04300A001, 66204-3616-0, 172638.73730, CS04300A001, HHK20-36990, W21TS-HK200, HHK71-14080, K7561-14080, 31725-L1000, HH660-36060, HHK72-14080, K2561-36990, 40701-00040, 17213173740, 66021.36061
Product Specifications
| L&S Part No. | LH7635 |
|---|---|
| Unit of Sale | 1 |
| Size | I/D 3/4" |
| Applications | 9007, AX 08, AX08, B 1550HST-D, B 1550HST-E, B 1700HST-D, B 1750HST-D, B 1750HST-E, B 21, B 2100HST-D, B 2110HST-D, B 2320DTN, B 2400HST-D, B 2410HSD, B 2410HSDB, B 2410HSE, B 2530, B 26, B 2630HSD, B 2710HSD, B 2910HSD, B 3030HSD, B 3030HSDC, B 3200HSD, B 4200D, B 6100HST-DT, B 6100HST-E, B 6200D, B 6200E, B 6200HST-D, B 6200HST-E, B 7100HST-DT, B 7100HST-E, B 7100HST-II-DT, B 7200HST-D, B 7200HST-E, B 7300HSD, B 7400HSD, B 7500HSD, B 7510HSD, B 7610HSD, B 7800HSD, B1550HST-D, B1550HST-E, B1700HST-D, B1750HST-D, B1750HST-E, B21, B2100HST-D, B2110HST-D, B2320DTN, B2400HST-D, B2410HSD, B2410HSDB, B2410HSE, B2530, B26, B2630HSD, B2710HSD, B2910HSD, B3030HSD, B3030HSDC, B3200HSD, B4200D, B6100HST-DT, B6100HST-E, B6200D, B6200E, B6200HST-D, B6200HST-E, B7100HST-DT, B7100HST-E, B7100HST-II-DT, B7200HST-D, B7200HST-E, B7300HSD, B7400HSD, B7500HSD, B7510HSD, B7610HSD, B7800HSD, BWR 650, BWR650, BX 1500D-48, BX 1500D-54, BX 1800D, BX 1830D, BX 1850D, BX 1860D, BX 22, BX 2200D, BX 2230D, BX 2350D, BX 2360, BX 23LB-B, BX 23LB-T, BX 24, BX 25, BX 2660, BX1500D-48, BX1500D-54, BX1800D, BX1830D, BX1850D, BX1860D, BX22, BX2200D, BX2230D, BX2350D, BX2360, BX23LB-B, BX23LB-T, BX23LBB, BX23LBT, BX24, BX25, BX2660, C 50, C 8R, C50, C8R, CX 50, CX50, EX8, F 1900E, F 2000, F 2100, F 2100E, F 2260R, F 2400, F 2560E, F 2680E, F 2880, F 2880E, F 3060, F 3060-R, F 3080, F 3560, F 3680, F1900E, F2000, F2100, F2100E, F2260R, F2400, F2560E, F2680E, F2880, F2880E, F3060, F3060-R, F3060R, F3080, F3560, F3680, FZ 2100, FZ 2400, FZ2100, FZ2400, G 1700S, G 18, G 1800, G 1800S, G 1900, G 1900S, G 2000, G 21, G 2160, G 2160-R48S, G 2460G, G 4200H, G 5200H, G 6200H, G1700S, G18, G1800, G1800S, G1900, G1900S, G2000, G21, G2160, G2160-R48S, G2460G, G4200H, G5200H, G6200H, GF 1800, GF 1800E, GF1800, GF1800E, GR 1600, GR 2000G, GR 2010G, GR 2010GB, GR 2100, GR 2110, GR1600, GR2000G, GR2010G, GR2010GB, GR2100, GR2110, HM 07SG, HM07SG, K 903 Mark II, K 903B, K 903C, K 904 Mark II, K 904D, K 904E, K 905, K 905 Mark II, K 905A, K 907 Mark II, K 907C.LC, K 907D, K 909A, K 914, K903B, K903C, K903MarkII, K904D, K904E, K904MarkII, K905, K905A, K905MarkII, K907C.LC, K907CLC, K907D, K907MarkII, K909A, K914, KH 31, KH 35, KH 36, KH 41, KH 41 G, KH 5, KH31, KH35, KH36, KH41, KH41G, KH5, N 08-02, N 080-2, N 350-2 3160050, N 350-2 3160051, N08-02, N080-2, N0802, N350-23160050, N350-23160051, RTV 1100, RTV 900, RTV1100, RTV900, SFH 220, SFH 240, SFH220, SFH240, SK 045, SK 045-2, SK 100, SK 100-III, SK 200, SK 60, SK045, SK045-2, SK0452, SK100, SK100-III, SK200, SK200LCSerieYQ01101-, SK200SerieYN06501-, SK60, ST 35, ST35, STA 30 ALPHA, STA 35 ALPHA, STA30ALPHA, STA35ALPHA, STV 32, STV 36, STV 40, STV32, STV36, STV40, UE07, YB 101, YB101, ZD 21, ZD 28, ZD21, ZD28, EX 8, ZX 8 2, ZX 10U2, G1700, G1800 S, G1900 S, G2000 S, G2160 DS, G2160AU, GR2120 2, ZX82, ZX10U2, G2000S, G2160DS, GR21202, B1550HSTD, B1550HSTE, B1700HSTD, B1750HSTD, B1750HSTE, B2100HSTD, B2110HSTD, B2400HSTD, B6100HSTDT, B6100HSTE, B6200HSTD, B6200HSTE, B7100HSTDT, B7100HSTE, B7100HSTIIDT, B7200HSTD, B7200HSTE, BX1500D48, BX1500D54, G2160R48S, K903MARKII, K904MARKII, K905MARKII, K907MARKII, N35023160050, N35023160051, SK100III, SK200LCSERIEYQ01101, SK200SERIEYN06501 |
| Machine Type | Excavators, Tractors |
| Fits Brands | Airmann, Case, Fiat Hitachi, Hanix, Hitachi, Iseki, Isuzu, Kobelco, Kubota, Mitsubishi, Nissan, Poclain, WIX, Wix, Yanmar |
