Description
Overview:

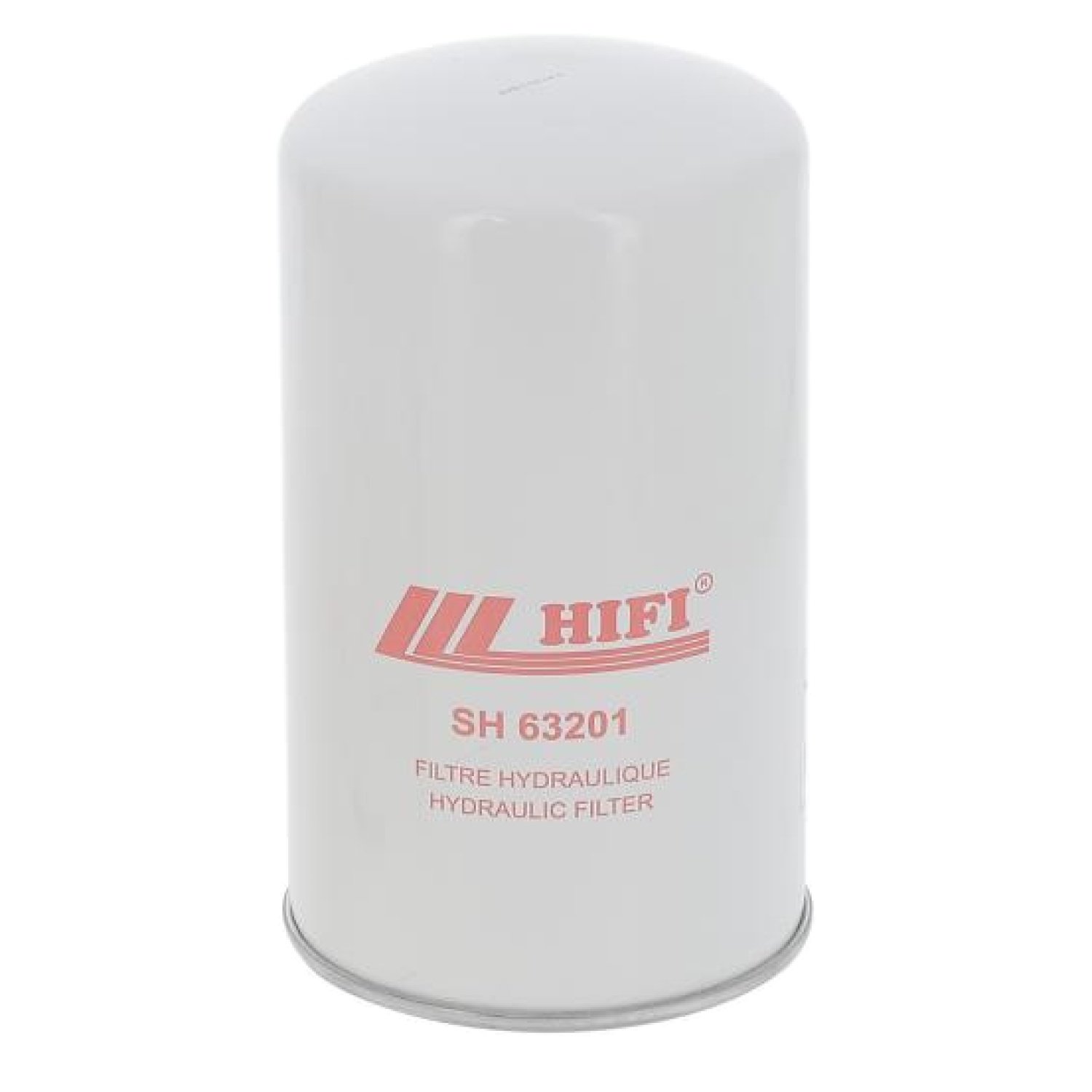

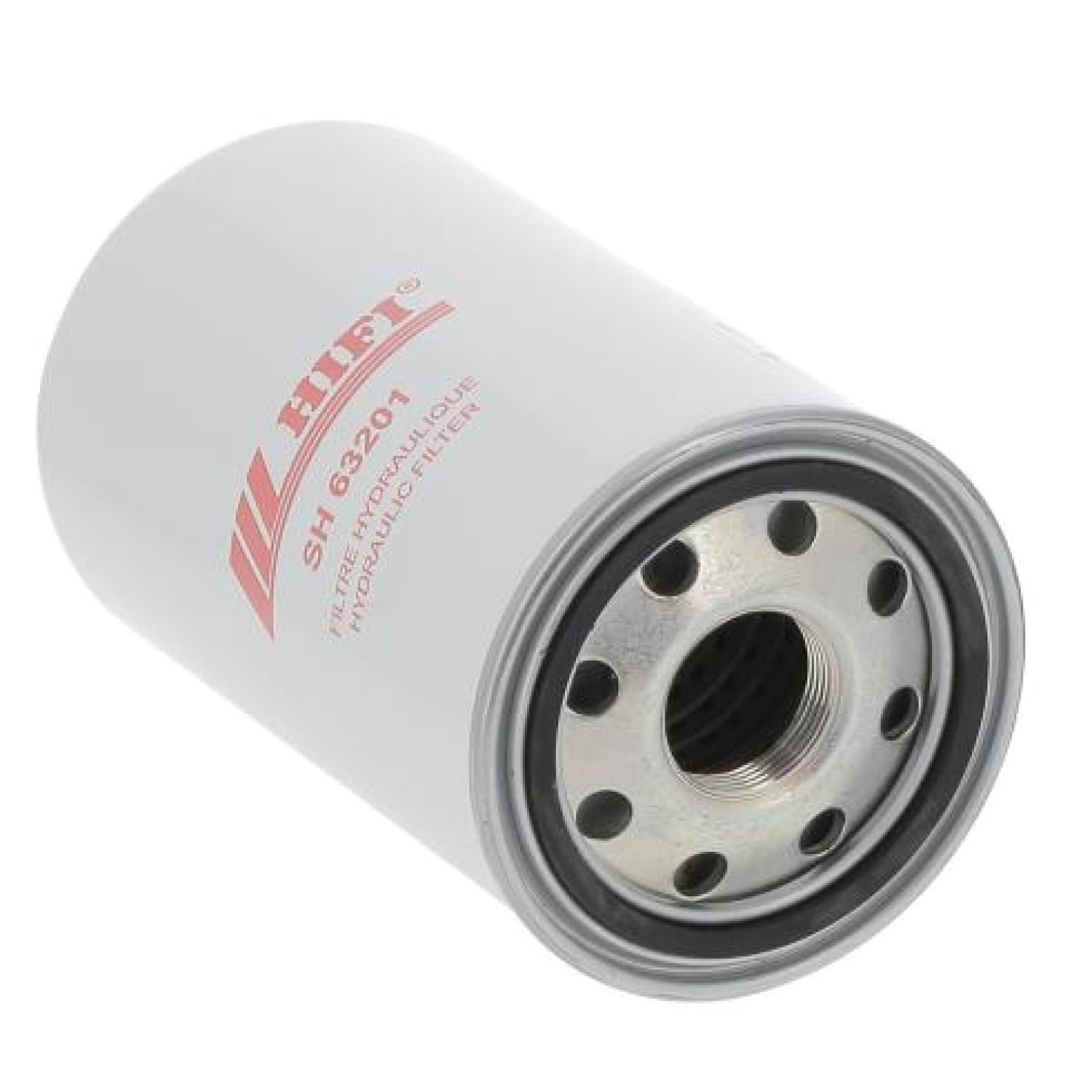

This Hydraulic Oil Transmission Filter, part number LH63201, is a Non-Genuine component for the Manitou MHT 780 T telehandlers equipped with a Perkins 1104D-E44TA engine. The filter's primary role is to remove contaminants from the hydraulic oil to ensure smooth operation of the transmission. It is situated within the hydraulic system of compatible telehandlers from the Manitou range.
Key Features:
- Designed for hydraulic oil filtration in telehandlers
- Specifically aligns with Perkins 1104D-E44TA engines
- Protective casing for durability
- Removes impurities to prevent wear
- Assists in maintaining hydraulic system efficiency
- Easily identified by alternate part numbers
Typical Applications:
Used in maintaining the hydraulic transmission system of Manitou telehandlers, particularly for effective filtration to prolong component lifespan and ensure functionality during heavy-duty tasks.
Also known as:
Hydraulic Filter, Transmission Oil Filter, Oil Filtration Unit
Fits Models:
MHT 10120L, MHT 780 T, MHT 860L TURBO, MHT 860LT LSU, MHT 950L EVOLUTION, MRT 1330, MRT1330, 200 RH, 250 AH, 250 AHG, 300 AH, 300 AHG, 300 RH, 300 RHG, 300 RMG, 350 AH, 350 AHG, 400 AH, 400 AHG, D 250 AHG, D 350 AHG, D 350 AHG 4x4, D 400 AHG, D 400 AHG 4x4, D 400 APG
Alternate Part Numbers:
CS 150/P10, CS150P10, SH 63201, SH63201
Product Specifications
| L&S Part No. | LH63201 |
|---|---|
| Part Type | Non Genuine Part |
| Fits Brands | Ausa, Manitou |
| Key Features | - Compatible with Perkins 1104D-E44TA engines. - Fits Manitou MHT 780 T from 2012. - Supports wide telehandler and machinery range. - Replaces OEM part numbers CS150P10, SH63201. - Genuine OEM part for reliable performance. |

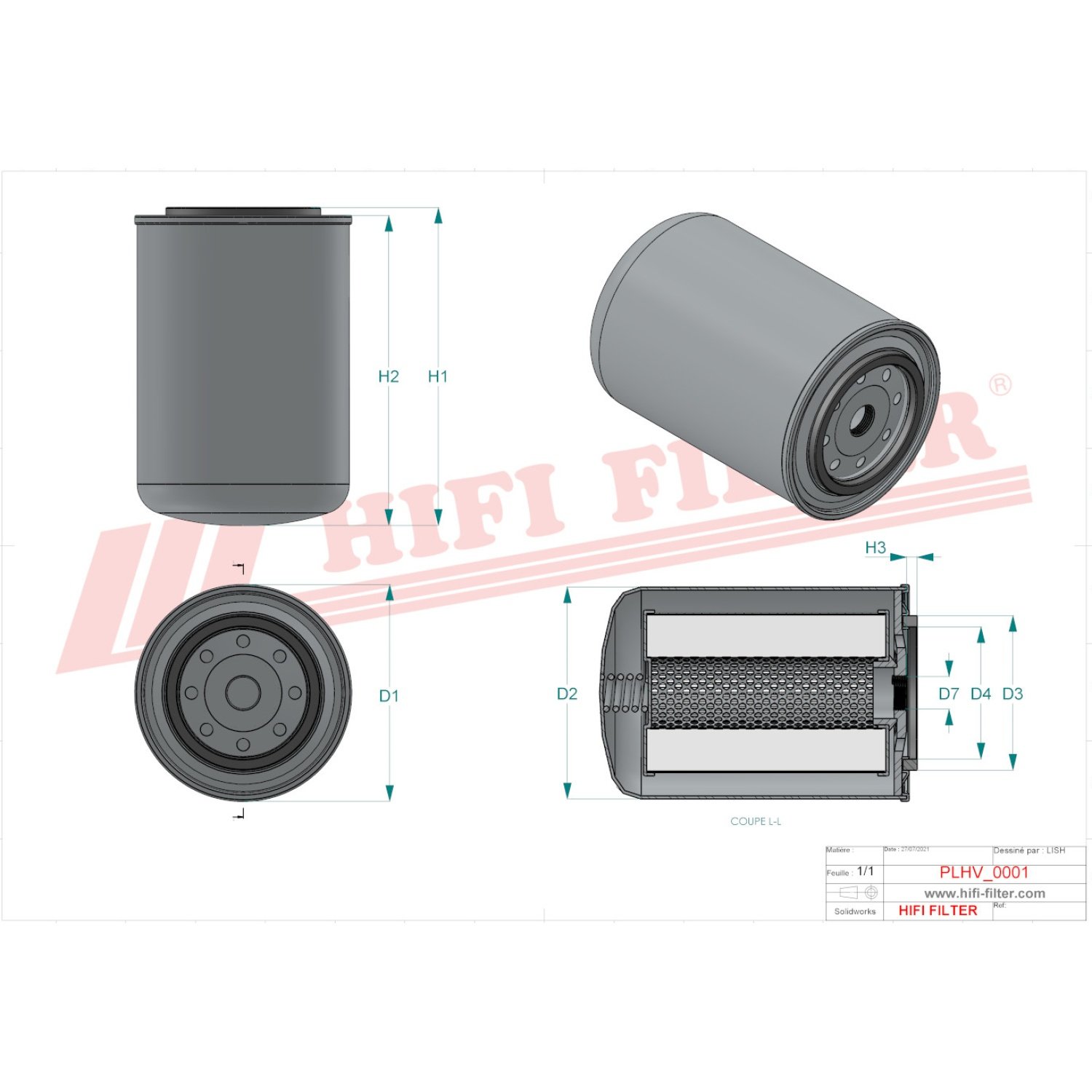

| Filter Specifications | D1: 128mm D2: 127mm D3: 107mm H1: 228mm H2: 226mm H3: 6mm Thread: 1"1/4-BSP |
| Fits Models | MHT 780 T | MHT 860L TURBO | MHT 860LT LSU | MHT 950L (T) EVOLUTION | MHT 10120L | MRT 1330 |
