Description
Overview:

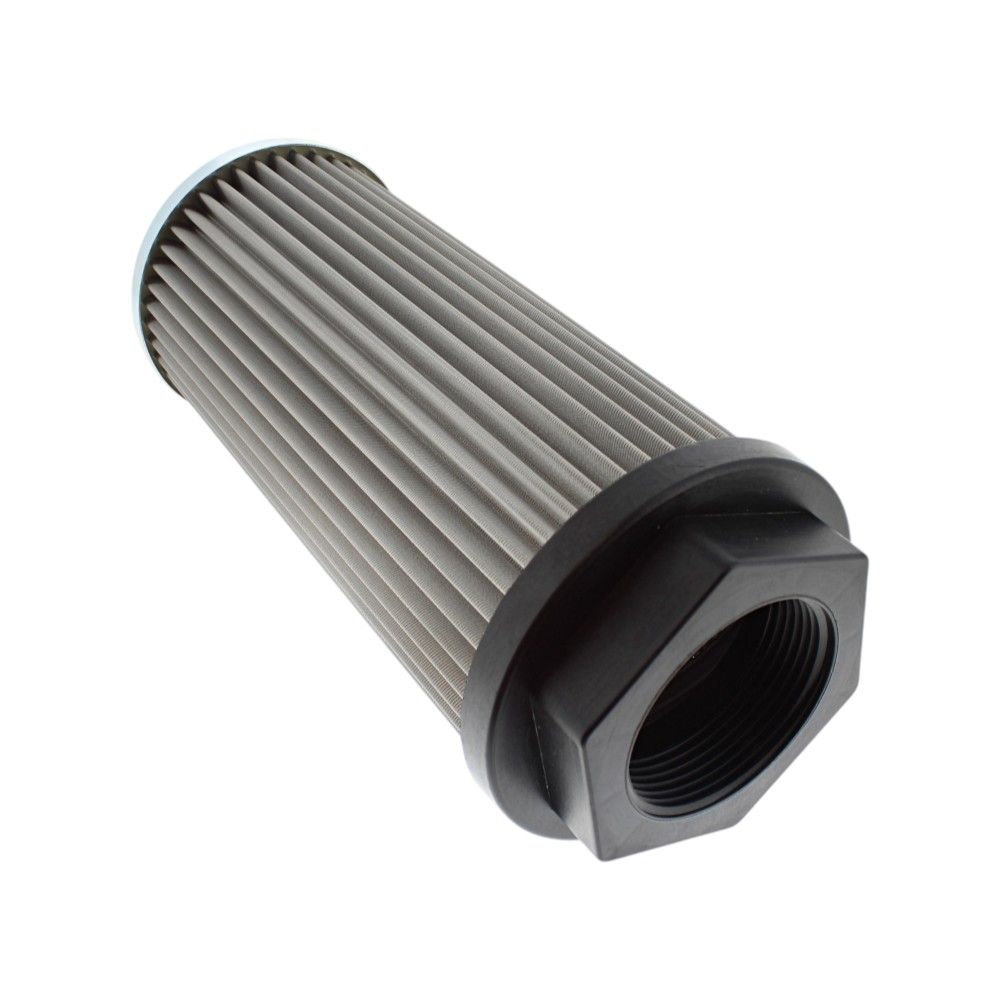

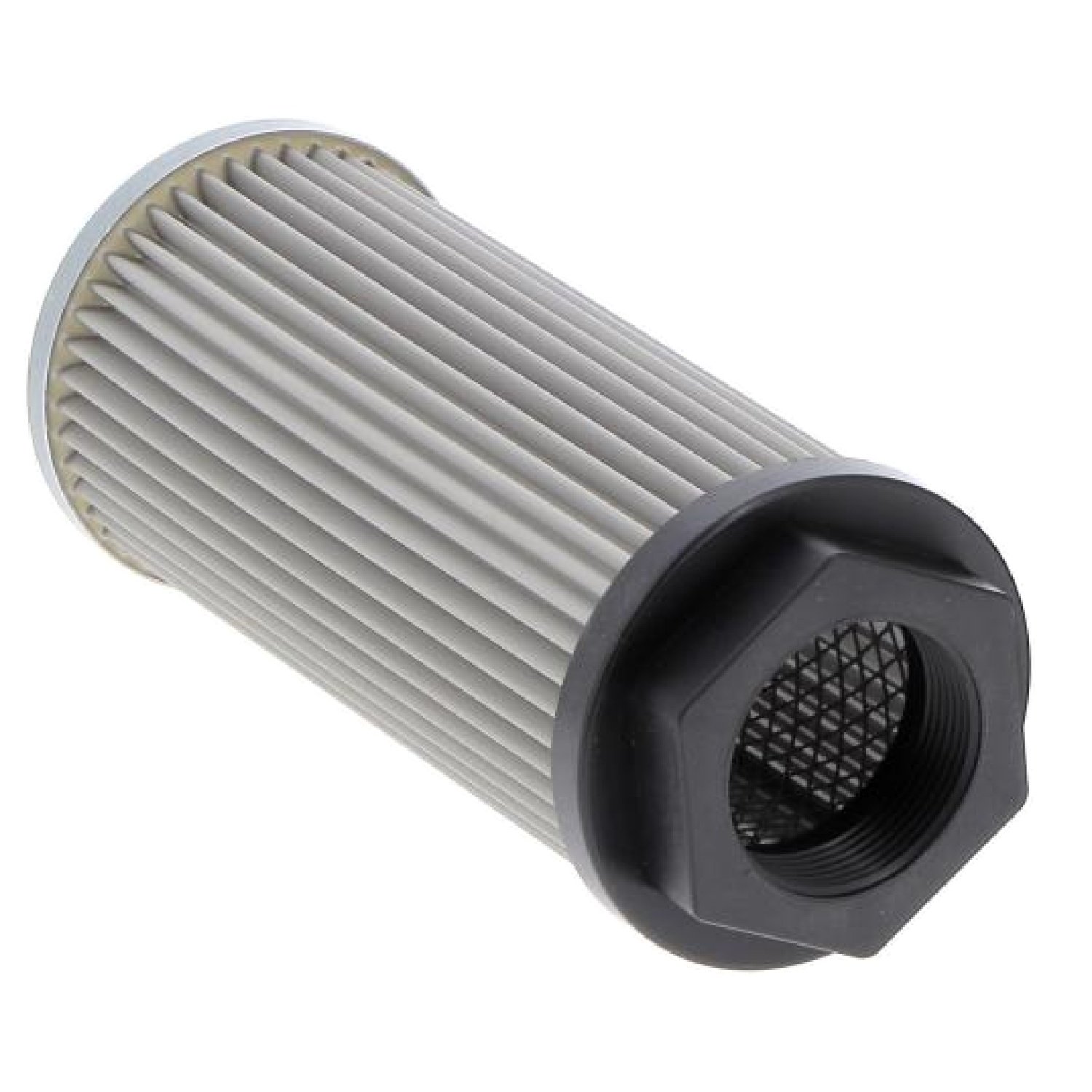

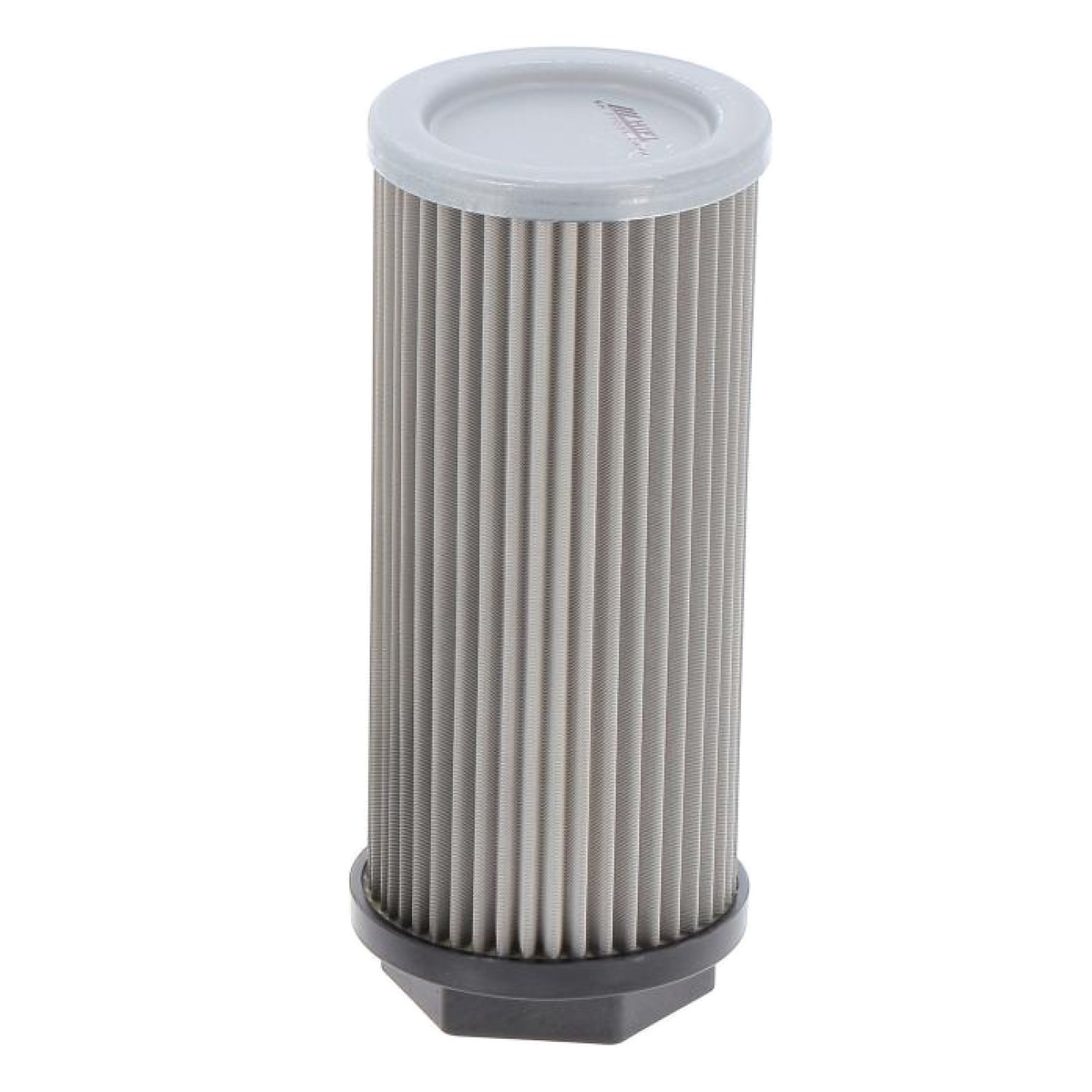

The Hydraulic Suction Filter, OEM number LH77037, is a Genuine part for Bomag rollers. It is designed to filter contaminants from hydraulic fluid before it reaches the pump. Installed within the hydraulic circuit, it is crucial for protecting the hydraulic system of the rollers BW 100 AD-5 and BW 120 AD-5. The filter ensures particles are removed, maintaining cleanliness in the system's hydraulics.
Key Features:
- Non-Genuine part offering genuine functionality
- Suitable for multiple Bomag roller models
- Designed to remove solid contaminants
- Placed within the suction line of the hydraulic system
- Helps extend the lifespan of hydraulic components
- Direct compatibility with specified OEM numbers
Typical Applications:
Used in hydraulic circuits of Bomag rollers, specifically to filter debris from the hydraulic oil, protecting pumps and other components from wear and damage.
Also known as:
Hydraulic Suction Screen, Hydraulic Oil Filter, Hydraulic Inline Filter, Suction Oil Filter
Fits Models:
BW 100 AC-5, BW 100 AD-5, BW 120 AC-5, BW 120 AD-5, BW 135 AD-5, BW 138 AC-5, BW 138 AD-5
Alternate Part Numbers:
SF 086 B 112 GR060, STR 086-3SG1M60P01, 67501-20540-71, 964.141.2404, MPAM 220/M90, 122484-73730, 172484-73730, FHC 1007100, 1006764209, WHE 28312, S 750029, HY 13277
Product Specifications
| L&S Part No. | LH77037 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Fits Brands | Bomag |
| Key Features | - Fits Bomag BW 100 AD-5, BW 120 AD-5 rollers - Compatible with multiple Bomag models including BW 135 AD-5 - Non-Genuine replacement for hydraulic suction filters - Cross-reference OEM numbers for assured fit - Genuine OEM part for reliable performance |

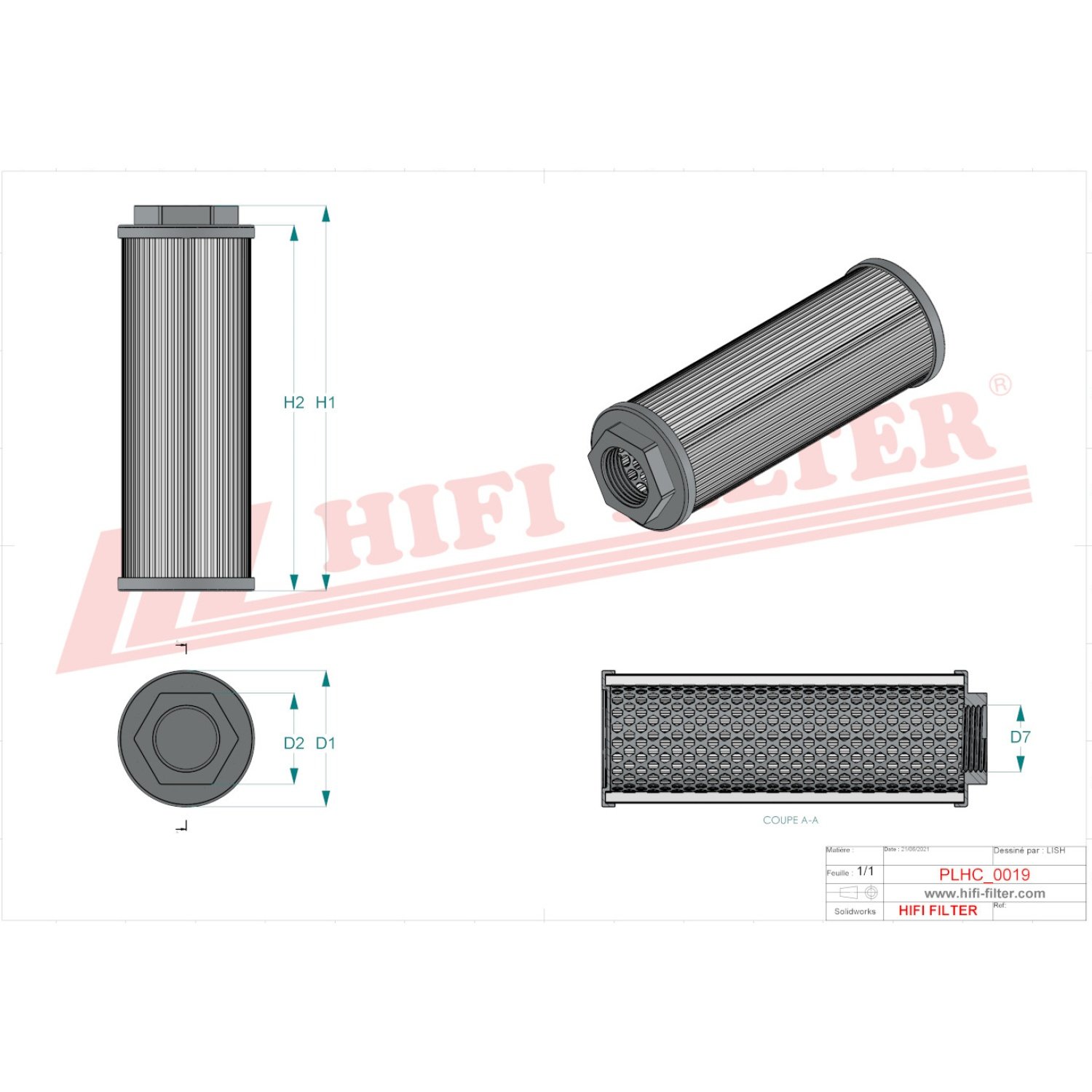

| Filter Specifications | D1: 86mm D2: 65mm H1: 200mm H2: 185mm Thread: 1"1/2-BSP |
| Fits Models | BW 120 AD-5 | BW 120 AD-5 | BW 120 AD-5 | BW 120 AD-5 |
