Description
Overview:

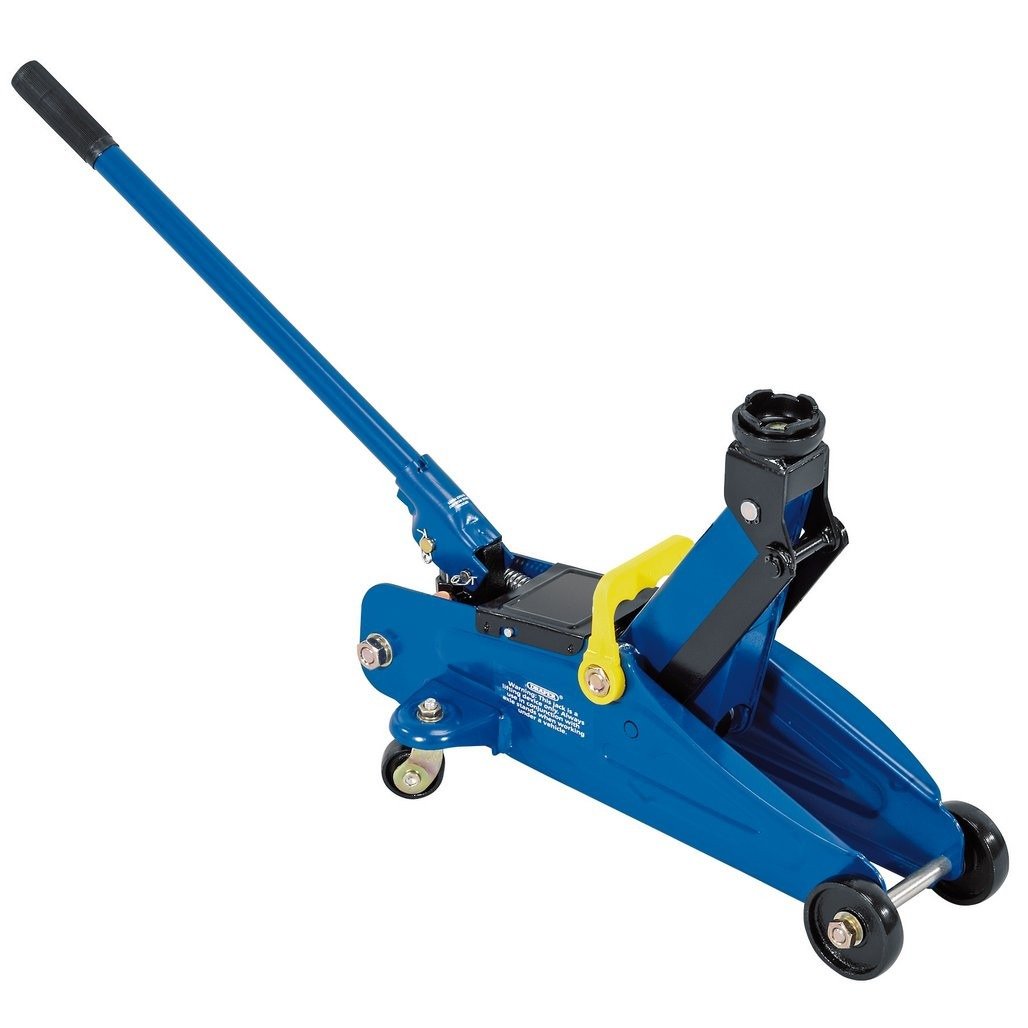

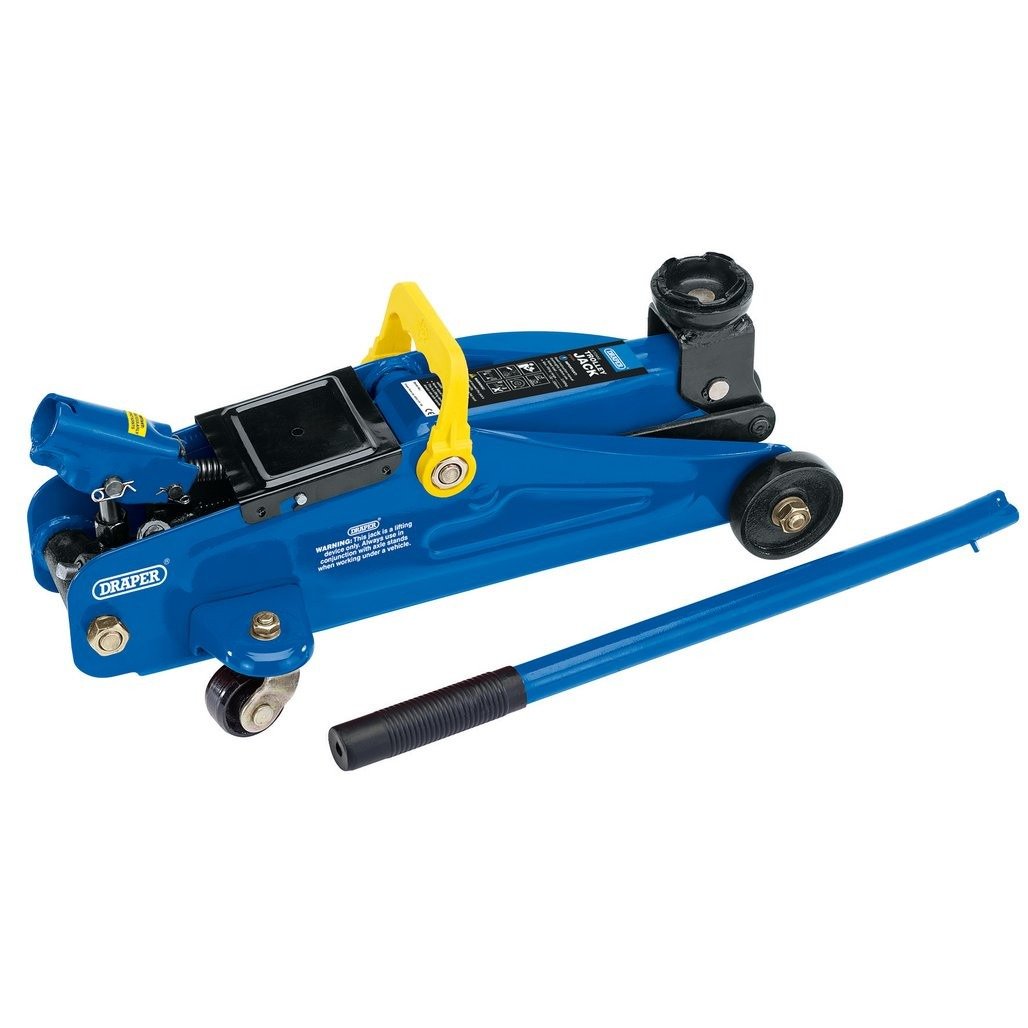

The Draper Hydraulic Trolley Jack 2 Ton (27634) is a compact, short-chassis, manual hydraulic jack for lifting cars and light commercial vehicles up to 2 tonne (2,000 kg). The hydraulic mechanism raises loads within a 130–330 mm lifting range, providing access under standard ride-height vehicles for service tasks. A large 47 mm diameter saddle aids accurate placement on approved lifting points, while rear swivelling steel castors improve manoeuvrability in confined spaces. The built-in safety valve helps prevent overloading. Supplied with a one-piece handle for straightforward operation and storage. Manufactured to EN1494, it is suitable for light-duty workshop, garage, and roadside use when paired with appropriate axle stands and used on a stable, level surface.
Key Features:
- Rated capacity: 2 tonne (2,000 kg)
- Minimum lifting height: 130 mm
- Maximum lifting height: 330 mm
- Effective lift range: 200 mm
- Large saddle: 47 mm diameter
- Short chassis length: 440 mm
- One-piece handle length: 425 mm
- Rear swivelling steel castors improve manoeuvrability
- Integrated overload safety valve
- Light-duty classification for routine vehicle tasks
- Conforms to EN1494 standard
- Net weight: 8.3 kg
Typical Applications:
Used for lifting one corner or axle of cars and small vans within the 2,000 kg capacity for tyre changes, brake and suspension work, inspections, and general servicing. Suitable for home garages, workshops, mobile service vehicles, and fleet yards. Always position on a firm, level surface and support the vehicle with rated axle stands before working underneath.
Also known as:
2 ton trolley jack, 2 tonne trolley jack, hydraulic trolley jack, car jack, garage floor jack, service jack, hydraulic car jack, short chassis jack, portable trolley jack, vehicle lifting jack.
Product Specifications
| L&S Part No. | 200 705 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Draper Tools |
| OEM No. | 27634 |
| Unit of Sale | 1 |
| Machine Type | Special Tools |
| Key Features | - 2 tonne (2,000kg) lifting capacity. - Lifting range 130–330mm. - Rear swivelling steel castors improve manoeuvrability. - Safety valve prevents overloading. - Manufactured to EN1494 specification. |
