Description
Overview:

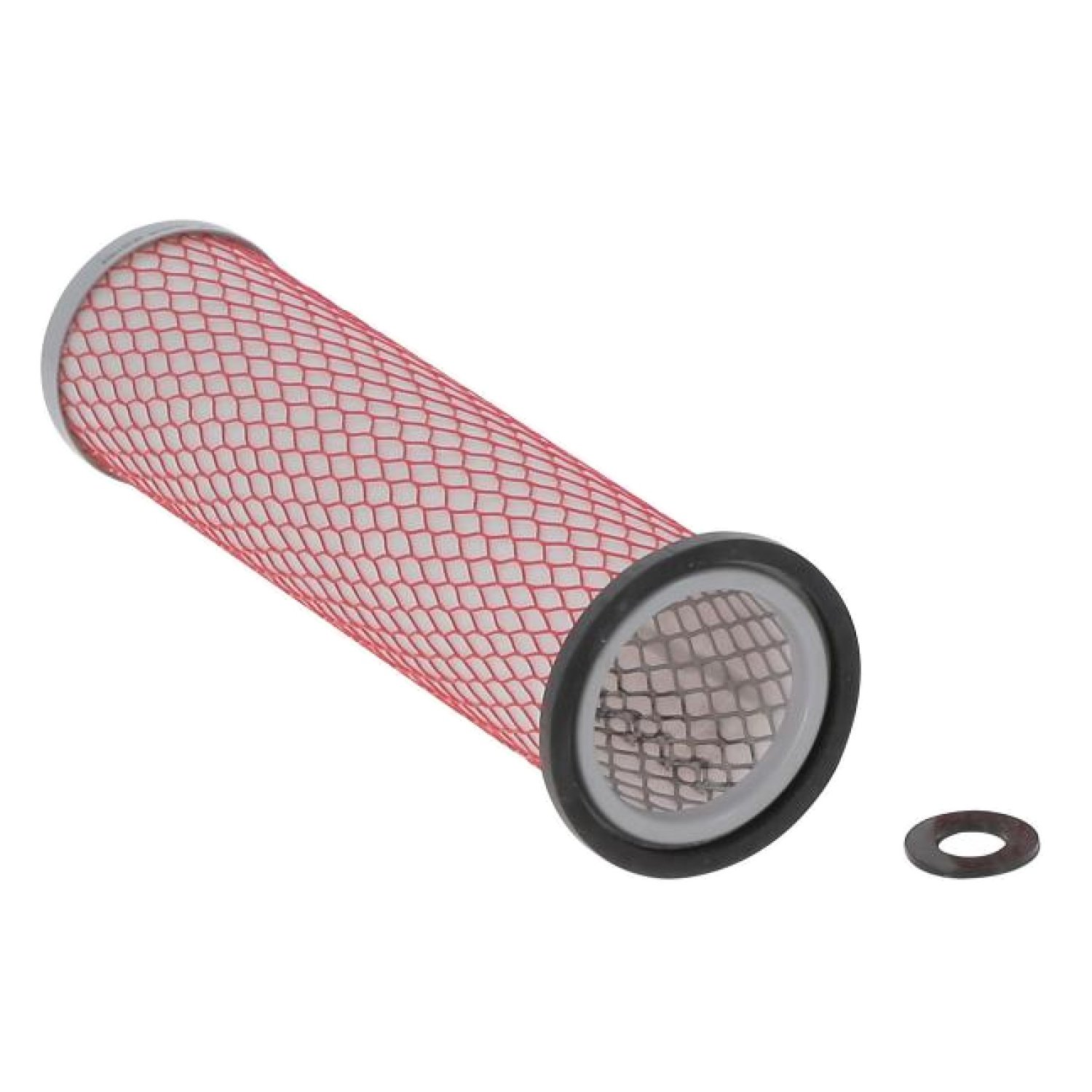

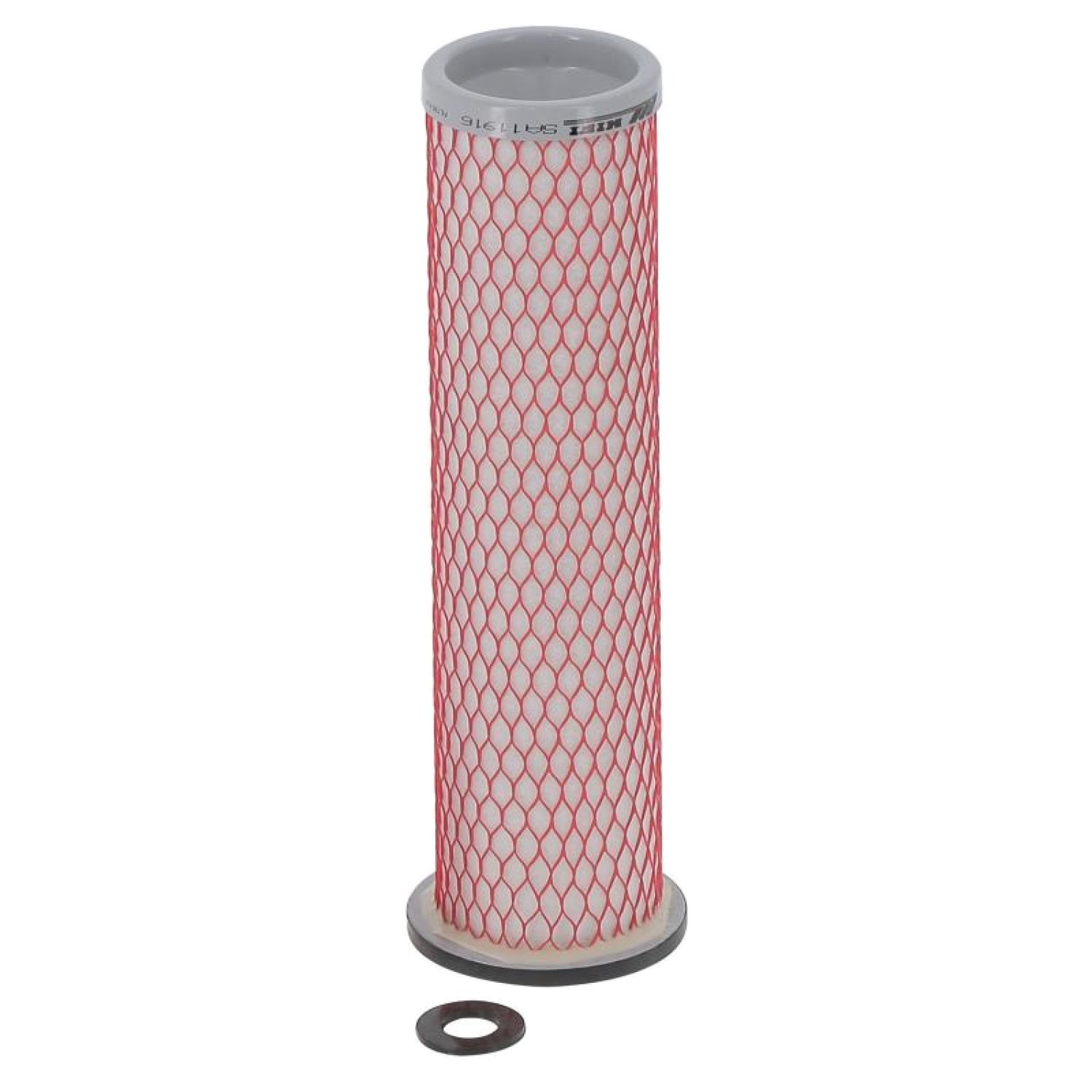

This inner air filter is a non-genuine replacement designed for two‐stage intake systems on compact construction machinery. It fits the Bobcat 320 with the Kubota D722E engine, working as the safety element inside the air box to protect the engine if the outer filter becomes saturated. Built with durable pleated media and a rigid core for strength and stable airflow, it traps fine dust and debris to maintain clean intake air and consistent performance. It is precision-made to replace Baldwin PA2489 and is intended to be used with the matching outer filter LA245. Dimensions: height 257 mm (10.12 inches), outer diameter 79 mm (3.11 inches), inner diameter 55 mm (2.17 inches). Suitable for compact excavators and similar plant operating in dusty environments.
Key Features:
- Non-genuine part engineered to replace Baldwin PA2489 for reliable compatibility
- Two-stage system inner/safety element for added engine protection
- Durable pleated media with a rigid core for strength and stable airflow
- Helps maintain engine efficiency by removing fine dust and debris
- Dimensions: height 257 mm (10.12 inches), OD 79 mm (3.11 inches), ID 55 mm (2.17 inches)
- Designed for use with outer filter LA245 for correct pairing and performance
- Easy to fit in standard air boxes on compact plant and mini excavators
- Supports longer service intervals when used with a correctly maintained outer filter
- Suitable for machines powered by Kubota D722E engines in demanding site conditions
Typical Applications:
Used as the inner (safety) air filter on compact excavators and similar machinery working on construction, landscaping, utilities, agriculture, and plant hire sites. Ideal where frequent dust exposure occurs, helping protect the engine during start-up and when the primary (outer) filter is loaded, and reducing the risk of unfiltered air reaching the intake.
Also known as:
Inner element, safety air element, secondary air filter, secondary element, air cleaner insert, engine intake filter (inner), fine dust element for two-stage air cleaners.
Fits Models:
320, KX161-2, KX121-2, KX1612, KX1212
Alternate Part Numbers:
17791-22000-71, 817381-11180, 171064-12550, N16546-99204, Golden AF859, 177912200071, 15000-37111, FFR-CA253SY, 1043327-M91, N1654699204, 17381-11180, 68335-43621, 17381-11181, 16546-99204, 68335-43620, 15612-11180, FIN-FA10167, 17106412550, 81738111180, GOLDENAF859, 3EB0-225550, 17381.11181, 1043327M91, 1738111181, 1654699204
Product Specifications
| L&S Part No. | LA1596 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | A2298 |
| Unit of Sale | 1 |

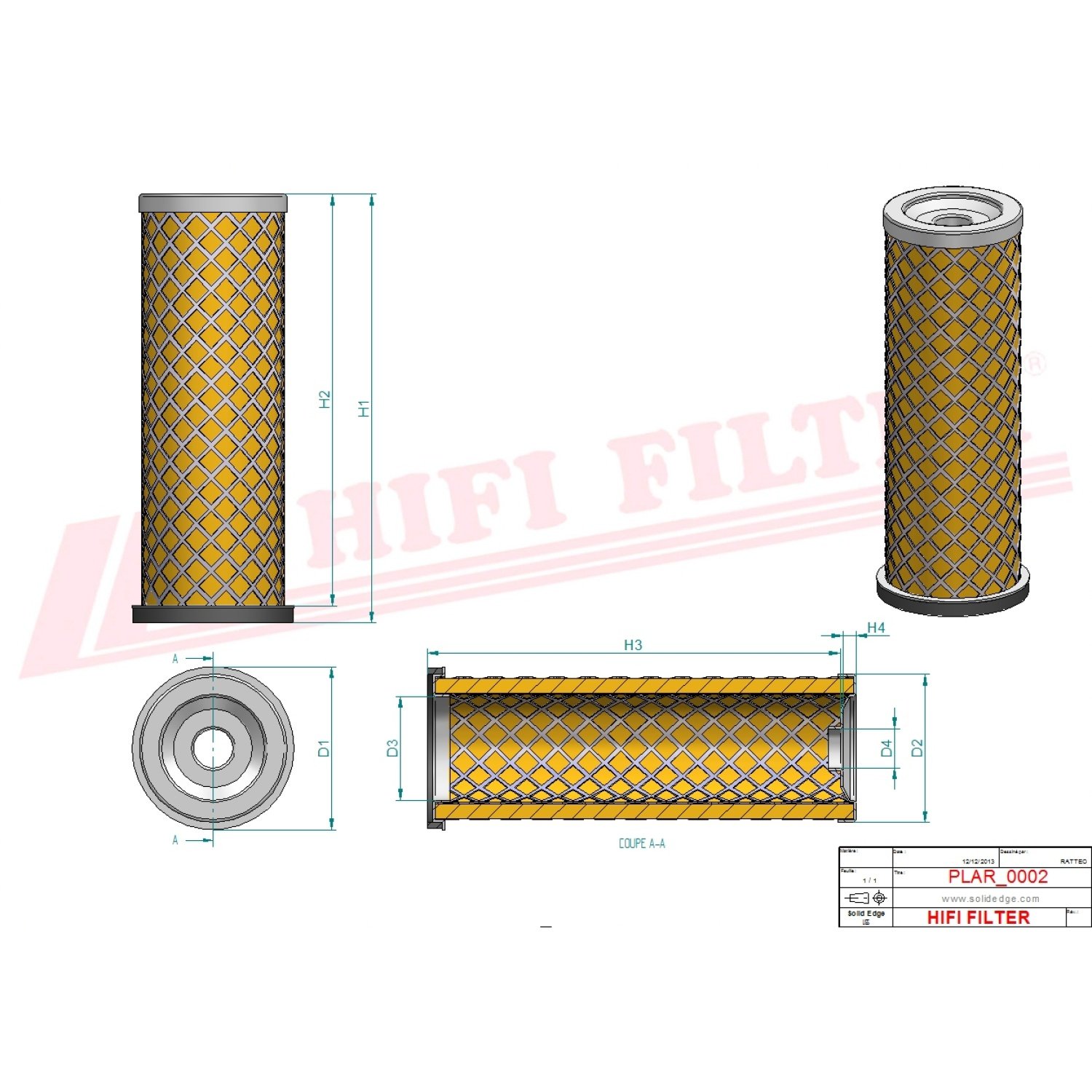

| Size | Height:257mm x O/Diam:79mm I/Diam:55mm |
| Machine Type | Excavators |
| Fits Brands | Alco Filters, Fiat, Fram, Greyfriars, John Deere, Kubota |
| Key Features | - Fits Bobcat 320 with Kubota D722E engine - Replaces Baldwin PA2489 for reliable compatibility - Dimensions: height 257 mm, OD 79 mm, ID 55 mm - Durable pleated media for stable airflow - Designed for use with outer filter LA245 |
| Fits Models | 320 |
