Description
Overview:
The Jockey Wheel Clamp Fixing Kit for 50 mm & 60 mm Square Drawbars (MPN TR191) is a no-drill mounting solution for fitting a jockey wheel clamp to a square-section trailer or caravan drawbar. It is designed to wrap around the drawbar using supplied U-bolts and a mounting plate, avoiding the need to drill the chassis. The kit covers 50 x 50 mm (approx. 2 x 2 in) and 60 x 60 mm (approx. 2.36 x 2.36 in) square drawbars; spacers are included for the 50 mm size to ensure a snug fit. Compatible with light and medium duty jockey wheel clamps using M10 fixings, the mounting plate provides elongated holes to suit clamp hole centres from 105 mm to 112 mm (approx. 4.13 to 4.41 in). Supplied hardware includes two M10 U-bolts, four M10 locking nuts with washers, two M10 spacers and a mounting plate, giving a complete kit for installing or relocating a jockey wheel clamp on common trailer drawbars.
Key Features:
- No-drill clamp mounting for square drawbars using U-bolts and a plate
- Fits 50 x 50 mm and 60 x 60 mm square section drawbars (approx. 2 in and 2.36 in)
- Suits light and medium duty jockey wheel clamps with M10 fixings
- Mounting plate hole centres adjustable 105-112 mm (approx. 4.13-4.41 in)

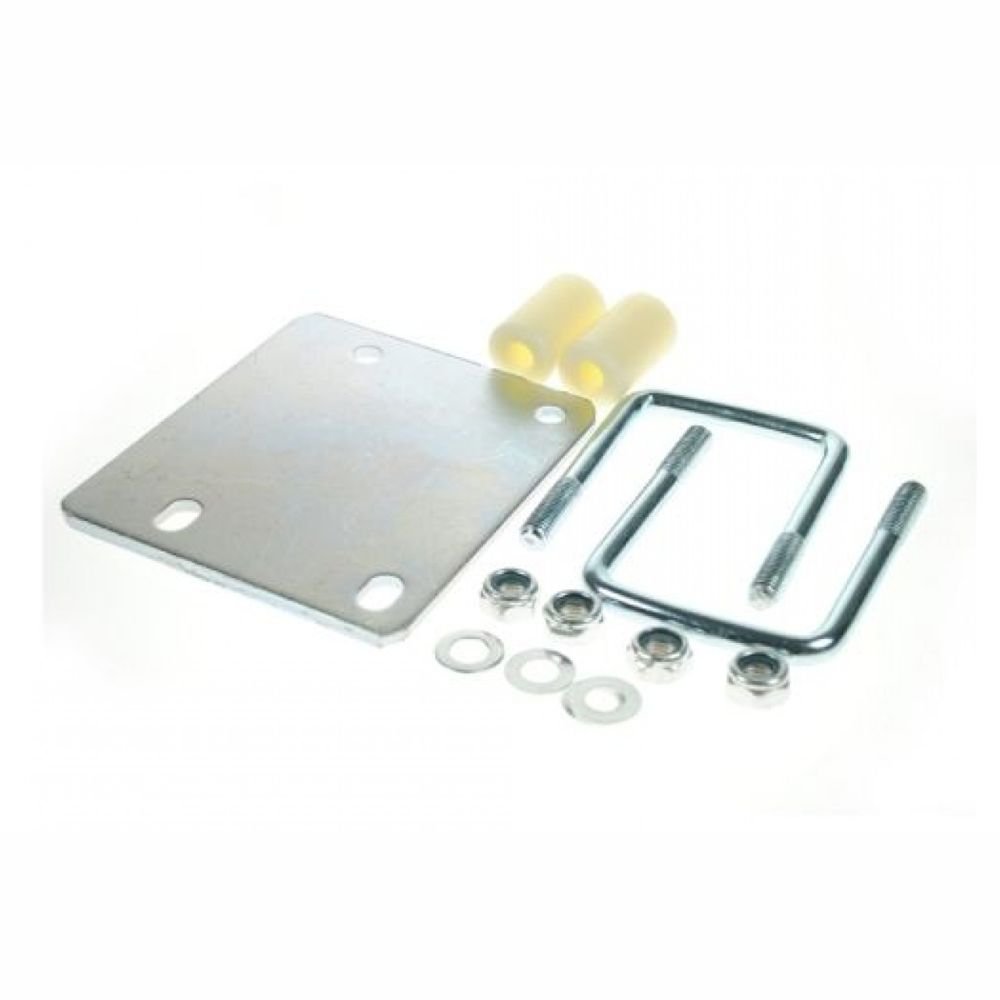

- Includes 2 x M10 U-bolts, 4 x M10 locking nuts, 4 x M10 washers, 2 x M10 spacers, 1 x mounting plate
- Spacers provided to optimise fit on 50 mm drawbars
- M10 hardware for a consistent clamp and plate interface
- Designed for square drawbars; not intended for round or rectangular non-square sections
Typical Applications:

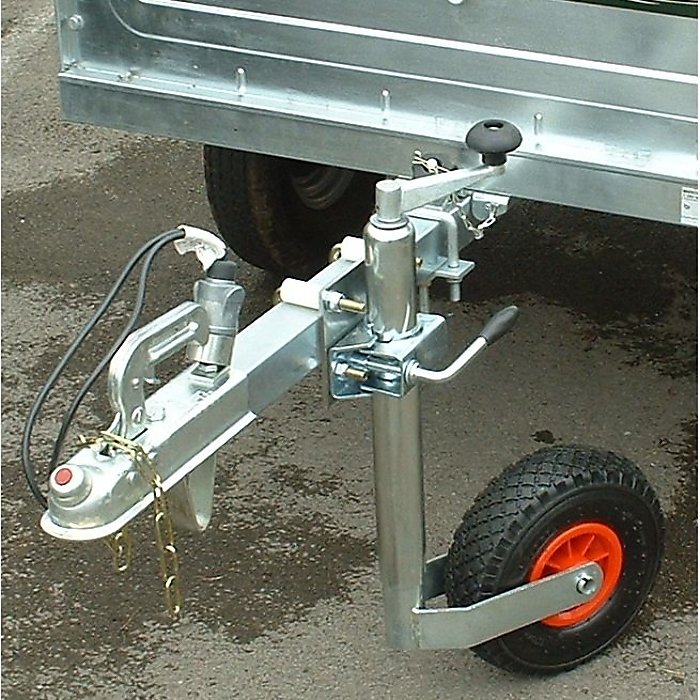

Mounting or repositioning a jockey wheel clamp on square-section drawbars of trailers and caravans where drilling is undesirable. Commonly used on light plant, general duty and goods trailers, and towing setups requiring a quick, secure clamp location on 50 mm or 60 mm square drawbars.
Also known as:
Jockey wheel clamp U-bolt kit, No-drill jockey wheel clamp kit, Jockey wheel bracket fixing kit, Clamp mounting plate kit for 50 mm/60 mm square drawbars, Maypole part number MP191
Product Specifications
| L&S Part No. | TR191 |
|---|
