Description
Overview:

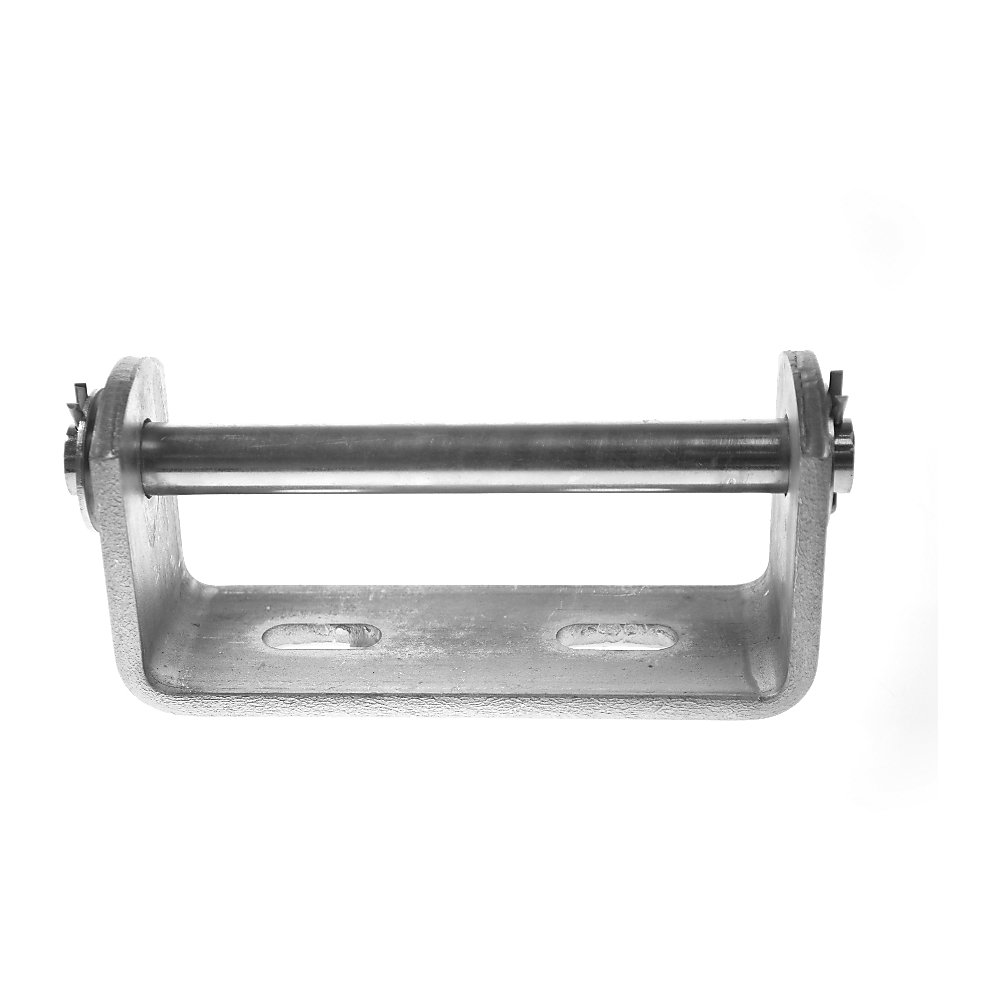

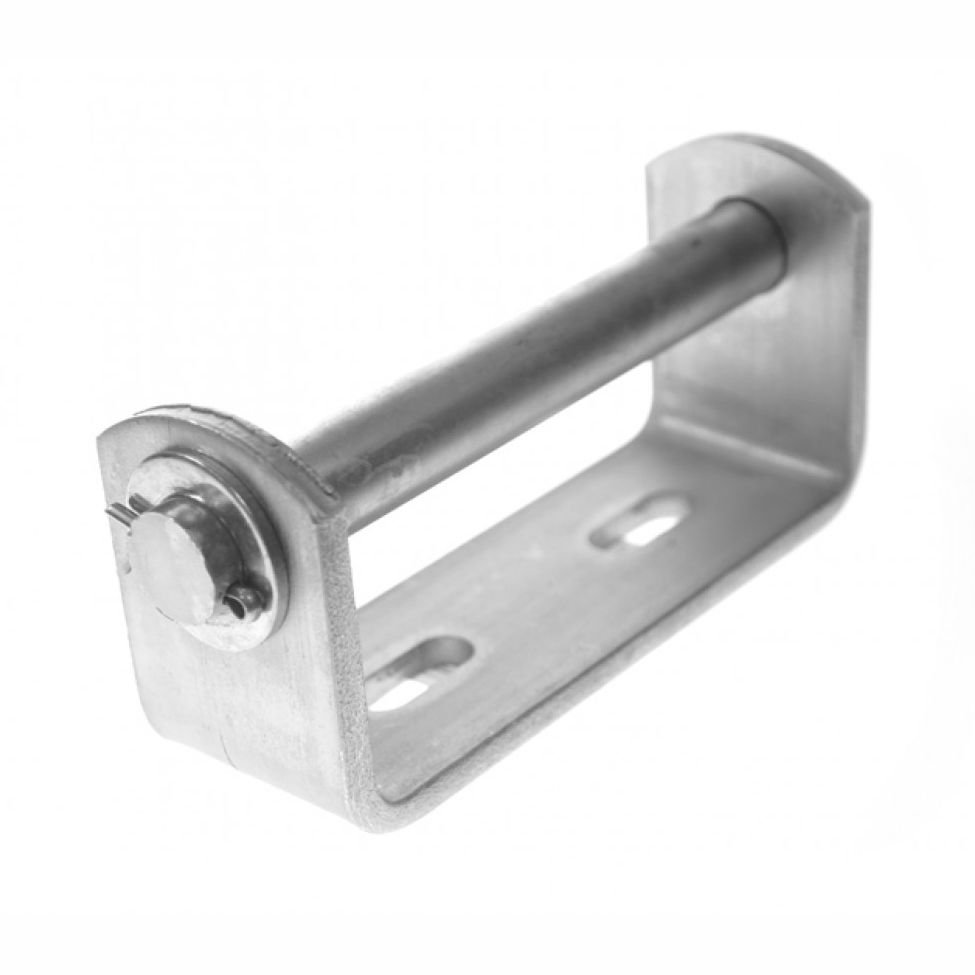

The Maypole Keel Roller Bracket (148 x 50 mm) with 16 mm diameter spindle is a heavy-duty mount for keel rollers on boat trailers. Built from 50 x 6 mm clear zinc-plated steel strip, it offers strong, corrosion-resistant support for the keel during loading, transport, and recovery. The solid bar spindle is designed to carry rollers up to 80 mm in diameter, while elongated fixing slots allow for easy alignment on different trailer frames. With a compact, rigid form and a maximum internal width of 135 mm, it suits a wide range of small craft trailers. Popular on models such as MP1740 and TR462, it provides a reliable, long-lasting solution where dependable keel guidance is needed.
Key Features:
- Heavy-duty 50 x 6 mm zinc-plated steel for strength and corrosion resistance in marine use
- Integrated solid bar spindle, 16 mm diameter, for secure roller mounting
- Suits rollers up to 80 mm diameter for versatile setup options

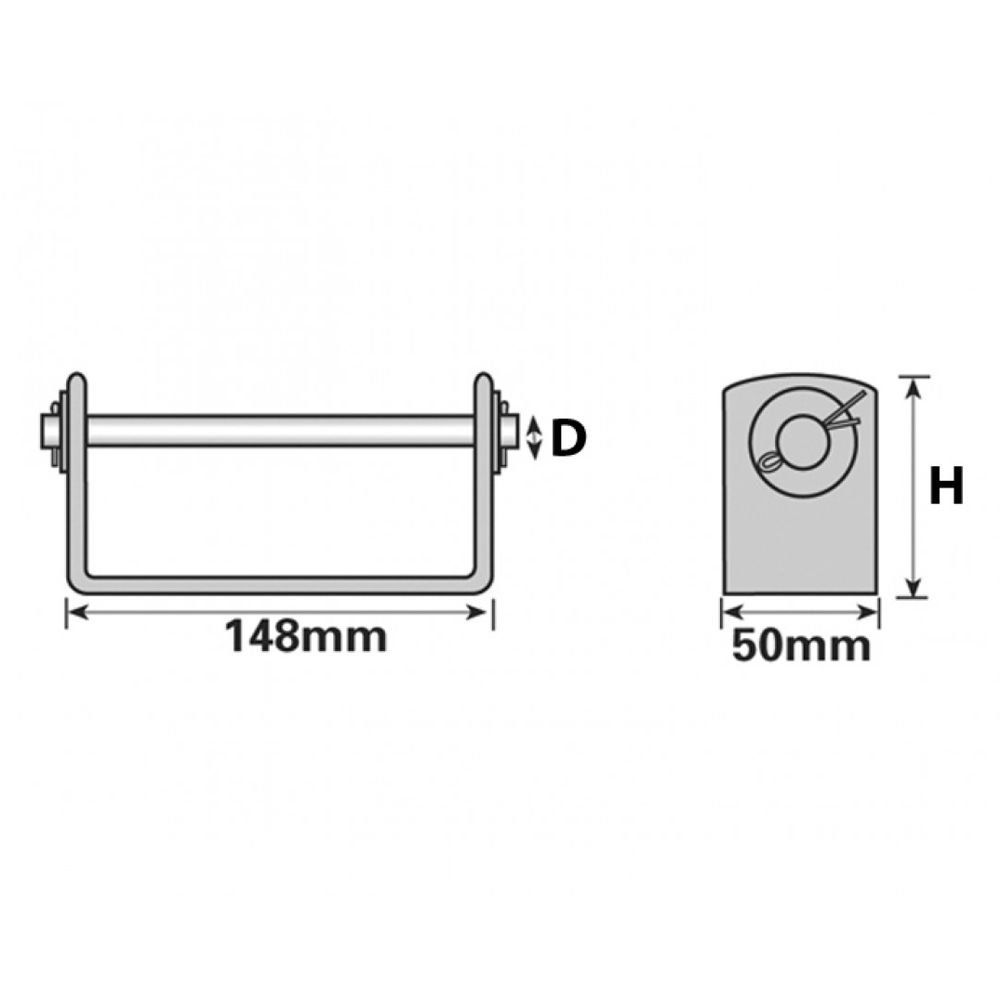

- Bracket size 148 x 50 mm for compact, sturdy installation
- Elongated fixing slots with 66-81 mm hole centres to fine-tune position on the trailer frame
- Maximum internal width 135 mm to accommodate common keel roller widths
- Overall height 72 mm for low-profile, stable support
- Installs with standard M10 nuts, bolts, and spring washers for straightforward fitting
- Durable zinc plating helps resist rust from splash and road salt
- Weight 0.84 kg, giving a solid, vibration-resistant mount
Typical Applications:
Used on boat trailers to support and guide the keel during launching, recovery, and transport. Ideal for maintenance upgrades or replacements on small craft trailers for dinghies, RIBs, and fishing boats, where consistent keel alignment and smooth rolling support are required.
Also known as:
Keel roller carrier, keel support mount, roller mounting bracket, spindle mount, trailer roller frame bracket, keel support hanger, roller axle bracket, marine trailer roller holder.
Fits Models:
MP1740, MP462, MP463, TR1740, TR462, TR463
Product Specifications
| L&S Part No. | TR470 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP470 |
| Unit of Sale | 1 |
| Applications | MP1740, MP462, MP463, TR1740, TR462, TR463 |
| Machine Type | Trailers |
