Description
Overview:

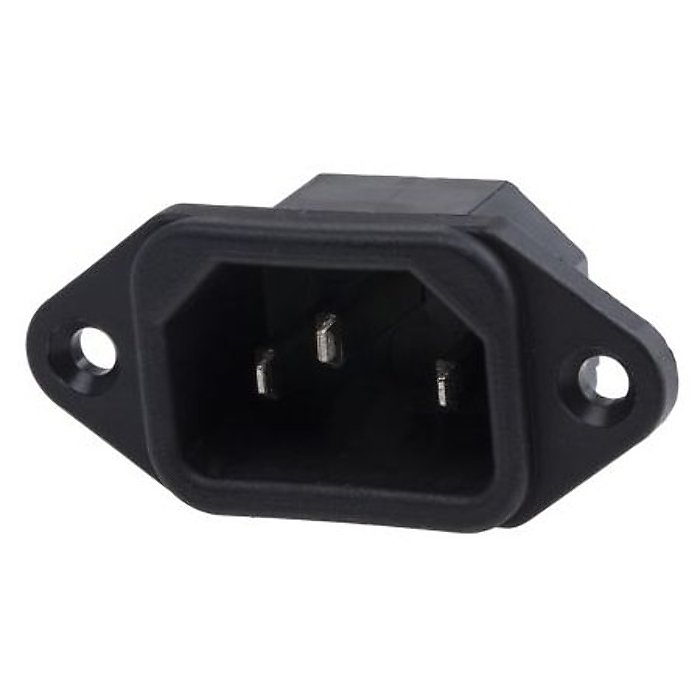

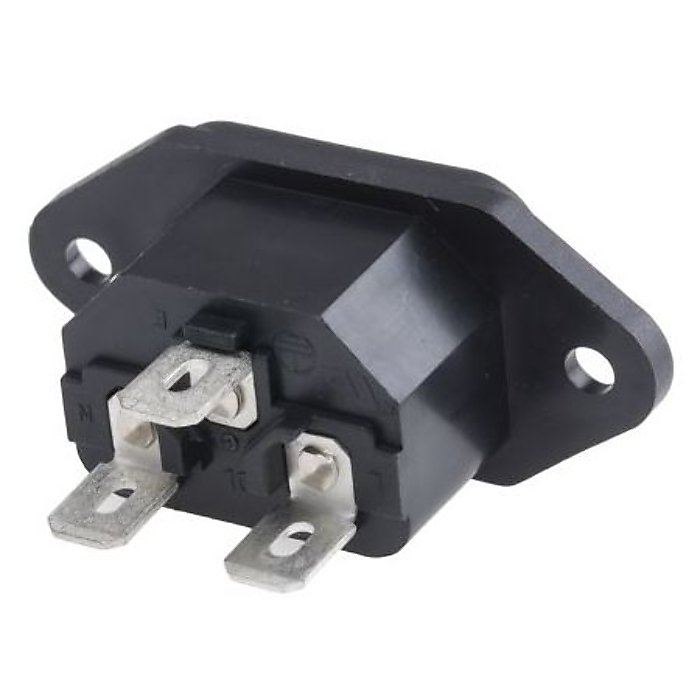

The "Kettle" Type 10 Amp C14 IEC Flange Fixing Plug is a robust and reliable component designed for various mains power input applications. Constructed with durable materials, this plug is rated at 250V and can handle up to 10 Amps. It features a flange mount design with 6.3mm spade terminals, making it suitable for secure panel installations. With a maximum panel thickness of 2mm, it ensures a snug fit, providing a stable connection for your equipment. This plug is ideal for use in construction and garden machinery, offering a dependable solution for power connectivity needs.
Key Features:
- Rated Voltage: 250V
- Current Rating: 10 Amps
- Flange Mount Design for Secure Installation
- Connection via 6.3mm (1/4 in) Receptacles
- Maximum Panel Thickness: 2mm
- Depth: 33mm
- Fixing Hole Diameter: 3.5mm
- Contact Resistance: 103MΩ
- Operating Temperature: -40°C to +70°C
- Resistance Withstand Voltage: 2000 Vac for 1 Minute
Typical Applications:
This plug is commonly used in construction and garden machinery, providing essential power connectivity. It is suitable for various mains power input applications, ensuring your equipment operates efficiently and reliably.
Also known as:
This component is also referred to as a C14 flange mount panel plug or IEC C14 plug, making it a versatile part for your power connection needs.
Alternate Part Numbers:
200990, 200 990, 488-191, 488 191, 488191
Product Specifications
| L&S Part No. | 200 990 |
|---|---|
| Unit of Sale | 1 |
| Size | Depth: 33mm, Fixing Hole Diameter: 3.5mm |
