Description
Overview:

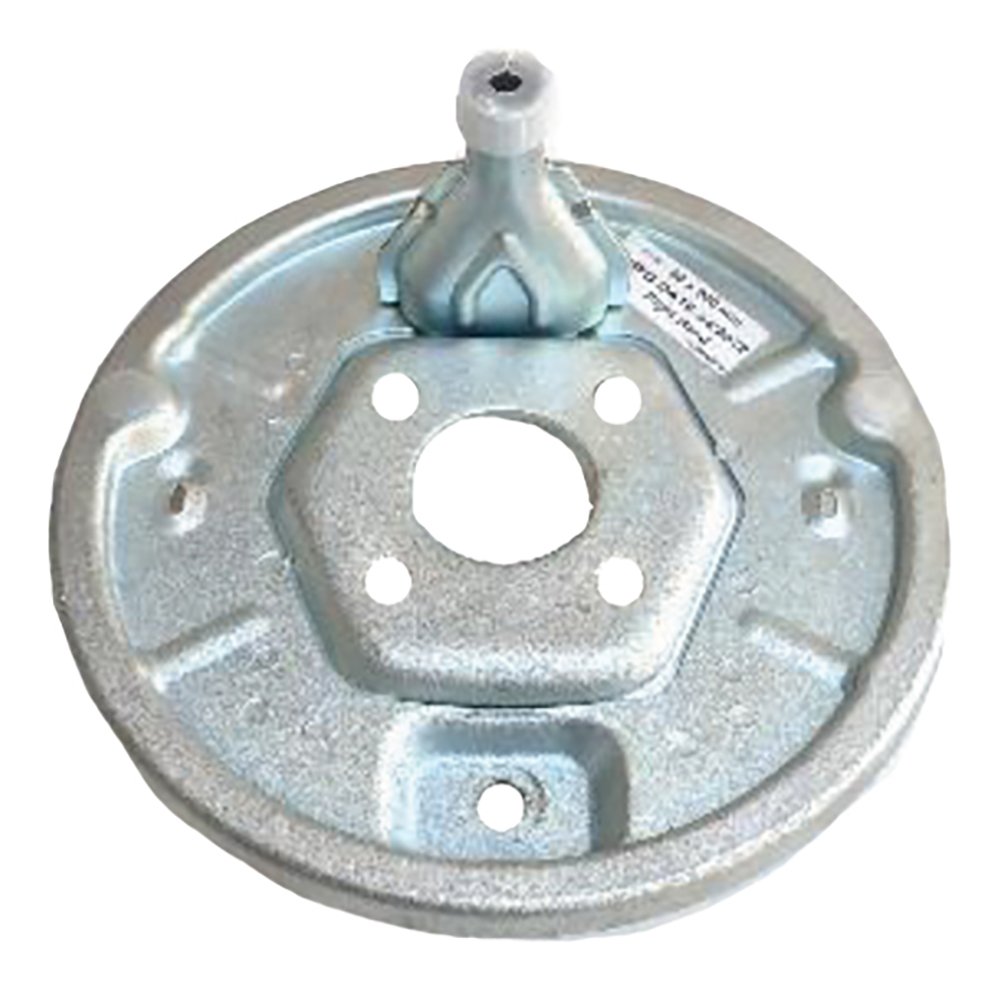

Knott‐style 250 x 40 Trailer Brake Back Plate (MPN 211 069) is a bolt‐on backing plate for Knott 250 x 40 mm brake drums, used on braked trailer axles. The 250 x 40 designation refers to a 250 mm (9.84 in) drum with 40 mm (1.57 in) shoes. This back plate provides the mounting face for the brake shoes and related hardware and secures to the axle flange via four fixing holes. The central bore is 58 mm (2.28 in) and the four mounting holes are 14.5 mm (0.57 in) diameter on 71 x 71 mm (2.80 x 2.80 in) centres. Supplied complete with half shell. Intended as a service replacement where the original back plate is worn or damaged. Suitable for Ifor Williams trailers manufactured after March 2014 using the Knott 250 x 40 brake format, and other applications with the same hole pattern. Installation should be carried out by competent technicians. Supplied as a single back plate.
Key Features:
- Bolt‐on back plate for Knott 250 x 40 mm (9.84 x 1.57 in) brake drums
- 58 mm (2.28 in) centre hole diameter
- 4 x 14.5 mm (0.57 in) mounting holes
- 71 x 71 mm (2.80 x 2.80 in) square hole centres
- Supplied complete with half shell
- Fits Ifor Williams trailers built after March 2014 using 250 x 40 brakes
- Knott‐style mounting pattern for direct replacement
- Supplied as a single back plate
- For professional brake service and replacement
Typical Applications:
Used on braked trailer axles where Knott 250 x 40 drums are fitted, including plant, utility and general transport trailers. Direct replacement for back plates on Ifor Williams trailers manufactured after March 2014 that use the 250 x 40 Knott brake setup. Commonly installed during axle overhauls, drum and shoe renewal, or when refurbishing corroded or damaged back plates.
Also known as:
Brake back plate 250 x 40
Knott‐style 250 x 40 backing plate
Ifor Williams post‐2014 back plate
Maypole part number MP21363B
Product Specifications
| L&S Part No. | 211 069 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
