Description
Overview:

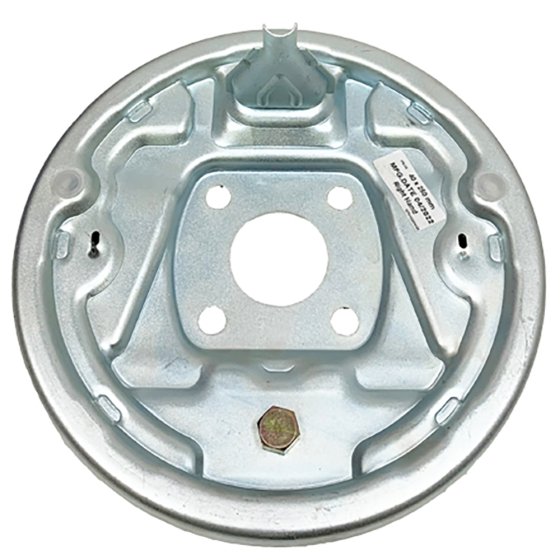

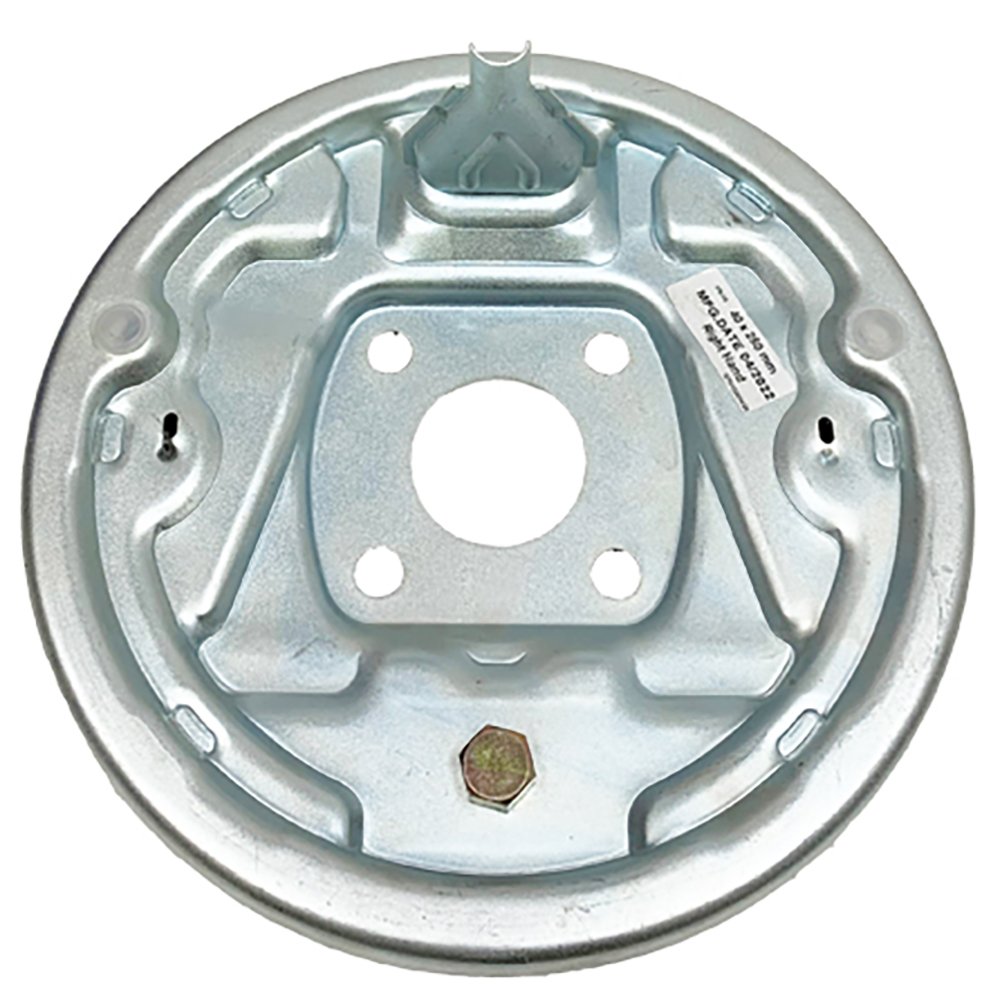

Knott-style 250×40 bolt-on brake backplate pair (MPN 211 068) for trailers using Knott 250 mm × 40 mm (9.84 in × 1.57 in) brake drums. Supplied as two complete backplate assemblies, each unit is pre-built with Maypole brake shoes and return springs, and includes the expander, manual adjuster, eyelet and half shell, ready to mount to compatible axles. The backplate features a 58 mm (2.28 in) centre bore, four 14.5 mm (0.57 in) mounting holes and square 71 × 71 mm (2.80 in × 2.80 in) hole centres, matching the Knott bolt-on pattern used by many UK trailers. Intended for Ifor Williams trailers manufactured after March 2014 that are equipped with Knott 250×40 drums, this assembly is a straightforward service replacement to restore braking function without rebuilding individual components. Braking components should only be serviced and replaced by competent technicians.
Key Features:
- Pair of bolt-on brake backplate assemblies for Knott 250×40 (9.84 in × 1.57 in) drums
- 58 mm (2.28 in) centre hole
- 4 × 14.5 mm (0.57 in) mounting holes
- 71 × 71 mm (2.80 in × 2.80 in) mounting centres (square pattern)
- Pre-fitted with Maypole brake shoes and return springs
- Includes expander, manual adjuster, eyelet and half shell
- For Ifor Williams trailers built after March 2014 with Knott 250×40 brakes
- Bolt-on design for direct replacement on compatible axles
- Supplied as a pair to service one braked axle
- Knott-style pattern widely used across UK trailer ranges
Typical Applications:
Used on braked axles of trailers that specify Knott 250×40 drums, including many Ifor Williams models produced after March 2014 (plant, general duty, livestock and similar) where a bolt-on backplate is fitted. Also suitable where trailers from other manufacturers use the same Knott bolt-on pattern and dimensions. Check drum size, centre bore, hole size and 71 × 71 mm hole centres to confirm compatibility.
Also known as:
- Maypole part number MP21353B
- Knott 250×40 brake backplate assembly
- Post-2014 Ifor Williams bolt-on backplates
- 250×40 brake shoe backplate kit
Product Specifications
| L&S Part No. | 211 068 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
