Description
Overview:

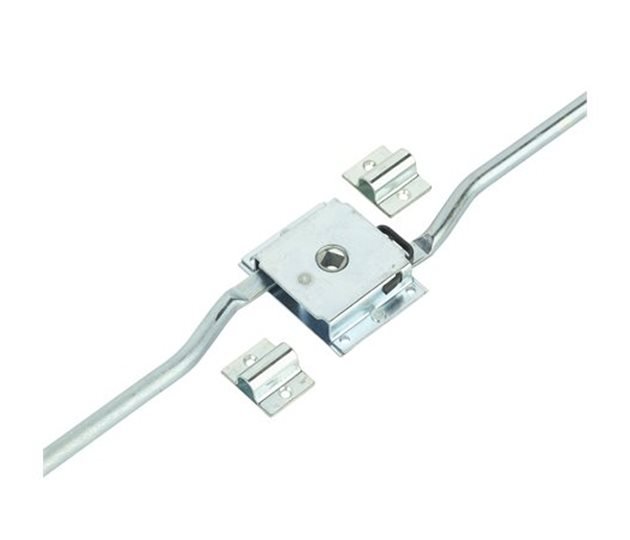

The 2-Point Rod Lock, Left Hand, 2210mm (MPN 800 1289) is a zinc plated mild steel locking assembly for commercial vehicle and equipment bodywork. It provides a positive two-point engagement to secure doors, shutters and compartments, using a left-hand, spring-loaded action for reliable closure. The assembly features an 8mm (5/16 in) square drive and is supplied with two rod guides to support smooth rod travel. Overall length is 2210mm (approx. 87.0 in), with a 25mm (0.98 in) throw for firm latching. It is designed to work with Ø9.5mm (3/8 in) linkage rods and uses Ø4mm (5/32 in) fixings. Suitable for use across a wide range of vehicle bodies and static enclosures where robust, corrosion-protected hardware is required, the zinc plated finish helps resist weather and road grime in service.
Key Features:
- Left-hand operation with spring-loaded action
- Overall length: 2210mm (87.0 in)
- Two-point locking with 25mm (0.98 in) throw
- Mild steel construction with zinc plated finish
- 8mm (5/16 in) square drive
- Supplied with 2 rod guides
- Suits Ø9.5mm (3/8 in) linkage rods
- Ø4mm (5/32 in) fixing holes
Typical Applications:
Used on trucks, trailers and buses for body side shutters, service lockers and cab compartments; on plant and equipment such as gensets for access panels; on horseboxes for tack and storage doors; and on roller shutter and compartment doors where a two-point latching action is required.
Also known as:
2 Point Rod Latch; Two-Point Door Lock; Left Hand Rod Lock; Square Drive Rod Lock; Roller Shutter Rod Lock
Product Specifications
| L&S Part No. | 800 1289 |
|---|---|
| Unit of Sale | 1 |
