Description
Overview:

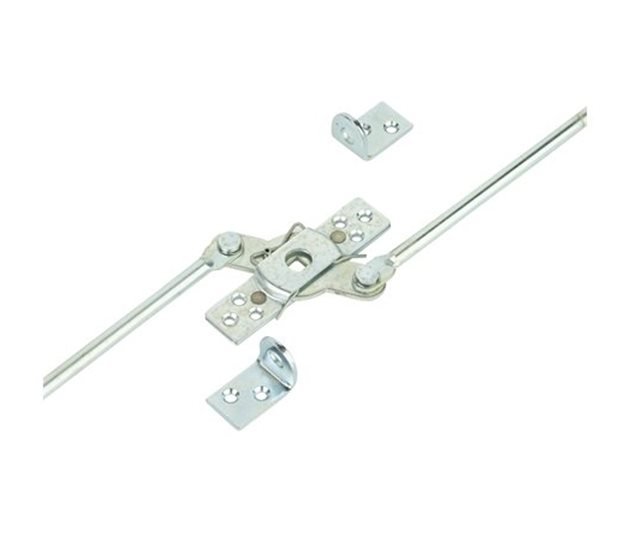

The 2-Point Rod Lock, Left Hand, 2310 mm, Type A, Zinc Plated Steel (MPN 800 1066) is a sprung-action locking assembly for bodywork doors and equipment compartments on commercial vehicles and plant. Manufactured from mild steel with a zinc plated finish, it provides a durable, corrosion-resistant solution for securing doors at two points, typically top and bottom, via Ø9.5 mm (0.37 in) linkage rods. The unit delivers a 35 mm (1.38 in) throw and is operated by an 8 mm (0.31 in) square drive to suit standard handles. Overall length is 2310 mm (90.94 in). Fixing is by Ø5 mm (0.20 in) countersunk fasteners for a flush fit. Supplied with two rod guides; a matching keeper is required to complete the installation (not supplied).
Key Features:
- Left hand, Type A 2-point rod locking assembly with spring-loaded action
- Mild steel construction with zinc plated finish for corrosion resistance
- Overall length 2310 mm (90.94 in) for tall doors and compartments
- 35 mm (1.38 in) throw for positive engagement
- Accepts Ø9.5 mm (0.37 in) linkage rods
- 8 mm (0.31 in) square drive to suit standard handles and gearboxes
- Supplied with two rod guides; keeper required (not included)
- Fixing holes Ø5 mm (0.20 in) countersunk for flush mounting
- Suited to trucks, trailers, buses, gensets, horseboxes, cabs and roller shutters
- Durable assembly for fleet maintenance and bodybuilder use
Typical Applications:
Used on side and rear doors of truck and trailer bodies, bus luggage and service compartments, horsebox doors, roller shutter lockers, generator set enclosures and plant cabs where a left-hand, twin-rod locking action is required.
Also known as:
2 point door lock, twin-rod door lock, A-type rod lock, vehicle compartment rod latch, two-point locking mechanism
Product Specifications
| L&S Part No. | 800 1066 |
|---|---|
| Unit of Sale | 1 |
