Description
Overview:

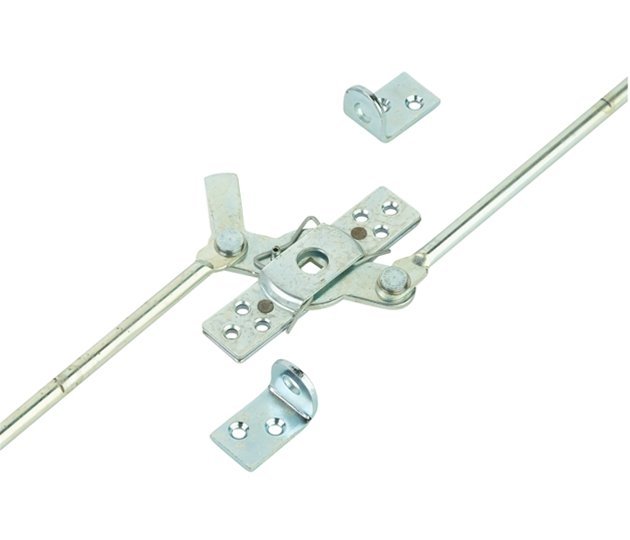

This left-hand 3 point rod lock (MPN 800 1063) is a Type A, spring-loaded assembly designed for secure multi-point door locking on commercial vehicle and equipment enclosures. Manufactured from mild steel with a zinc plated finish, it provides durability and corrosion resistance in fleet and site conditions. The assembly is 2310mm long (2.31m; approx. 90.9in) and delivers a positive 35mm (1.38in) throw to engage top, bottom and centre locking points. It features an 8mm (5/16in) square drive to suit standard handles, and is supplied with a tongue and two rod guides for correct alignment of the linkage. Typical uses include side doors, lockers and compartments on trucks, trailers, buses, gensets, horseboxes, cabs and roller shutters. Keeper 0770/011 is required and supplied separately.
Key Features:
- Left-hand operation, Type A 3-point locking mechanism with spring-loaded action
- Overall length: 2310mm (2.31m; approx. 90.9in)
- Throw: 35mm (approx. 1.38in)
- Linkage rods: Ø9.5mm (approx. 3/8in)
- Drive: 8mm square (approx. 5/16in) to suit standard handles
- Material: Mild steel for strength in service
- Finish: Zinc plated for corrosion protection
- Fixing: Ø5mm countersunk holes (approx. 3/16in)
- Supplied with tongue and two rod guides for proper rod support
- Keeper 0770/011 required (sold separately) for correct latching
- Suitable for exterior and interior compartment doors on commercial bodies
Typical Applications:
Used on truck and trailer side doors, tool lockers and compartments, bus and coach body access panels, generator set enclosures, horsebox doors, vehicle cabs, and roller shutter sections where a robust three-point locking action is required.
Also known as:
3-way rod lock; Three-point door lock; Three-point rod latch; A type rod lock; LH rod lock; Truck body compartment lock; Roller shutter rod lock
Product Specifications
| L&S Part No. | 800 1063 |
|---|---|
| Unit of Sale | 1 |
