Description
Overview:

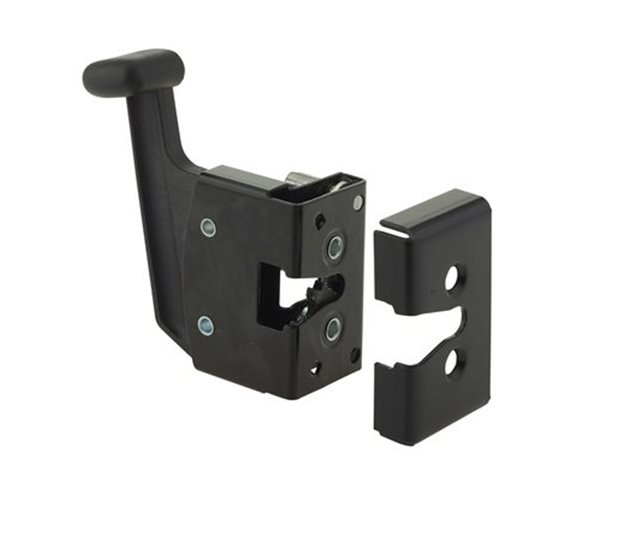

This left hand single rotor anti-burst latch (MPN 800 1359) is a robust door hardware component for commercial vehicle and equipment bodies. The latch housing and face plate are manufactured from pressed steel with a durable black powder coated finish, providing a tough casing suitable for fleet and plant use. A glass‐reinforced internal vertical release lever delivers dependable operation from inside the door. Supplied complete with a face fixing plate, the unit is designed to pair with 9301/101 series striker pins for secure door engagement. Key dimensions are 80 mm (3.15 in) length, 47 mm (1.85 in) width and 97 mm (3.82 in) overall thickness/projection, with 5 mm (0.20 in) fixing holes to suit common bodybuilder fastenings. Typical applications include truck and trailer body doors, bus compartments, generator set enclosures, horsebox access doors and cab doors where an anti‐burst latch is required.
Key Features:
- Left hand orientation for matching door layouts
- Single‐rotor anti‐burst latch mechanism for secure door retention
- Pressed steel casing and face plate for strength
- Black powder coated finish
- Glass‐reinforced internal vertical release lever (vertical action)
- Supplied with pressed steel face fixing plate
- Fixing holes Ø5 mm (0.20 in) for straightforward installation
- Body length 80 mm (3.15 in)
- Body width 47 mm (1.85 in)
- Overall thickness/projection 97 mm (3.82 in)
- Compatible with 9301/101 series striker pins
- Suitable for use on commercial vehicle and equipment doors
Typical Applications:
Used on trucks, trailers and buses for side and rear doors; on generator set enclosures for access panels; on horseboxes for body doors; and on cabs and service compartments across transport and plant fleets where a left hand anti‐burst rotor latch is specified.
Also known as:
Anti‐burst door latch (LH), rotor latch (left hand), interior roll‐over lock, single rotor latch, left hand cab door latch
Product Specifications
| L&S Part No. | 800 1359 |
|---|---|
| Unit of Sale | 1 |
