Description
Overview:

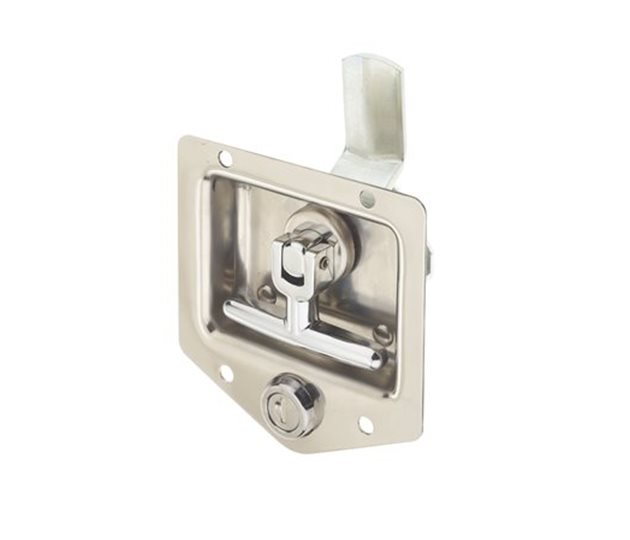

This recessed Drop T latch, left hand, locking, stainless, mixed keys (MPN 800 1303) is a flush-fit dish latch for access doors and panels on commercial vehicles and equipment. The recessed pan is made from polished stainless steel for durability and corrosion resistance, while the T handle is zinc-plated steel. The left-hand mechanism provides 90° handle rotation to drive an adjustable cam for positive engagement. A neoprene gasket is supplied to seal the pan against the door skin and help keep out water and debris. The face size is 123 mm by 120 mm (4.84 in x 4.72 in) with a body depth of 21 mm (0.83 in). Fixing holes are 7 mm (0.28 in) diameter. Designed for straightforward installation and reliable operation on truck bodies, trailers, buses, generator enclosures, horseboxes and vehicle cabs where a low-profile, recessed latch is required.
Key Features:
- Recessed Drop T latch with left-hand operation
- Locking version supplied with mixed keys (keyed-to-differ)
- Polished stainless steel pan for corrosion resistance
- Zinc-plated steel T handle
- 90° handle rotation with adjustable cam
- Supplied with neoprene gasket for panel sealing
- Overall face dimensions: 123 mm x 120 mm (4.84 in x 4.72 in)
- Body/depth: 21 mm (0.83 in)
- Fixing hole diameter: 7 mm (0.28 in)
- Suitable for commercial vehicle and equipment use
Typical Applications:
Used on access doors, lockers and service panels for trucks, trailers, buses, generator sets, horseboxes and vehicle cabs. Common on side lockers, tool compartments and enclosure doors where a robust, flush-mounted latch is preferred.
Also known as:
Recessed dish handle; Drop T handle latch; Paddle latch; T-handle paddle latch; Recessed T-handle lock; Flush mount dish latch
Product Specifications
| L&S Part No. | 800 1303 |
|---|---|
| Unit of Sale | 1 |
