Description
Overview:

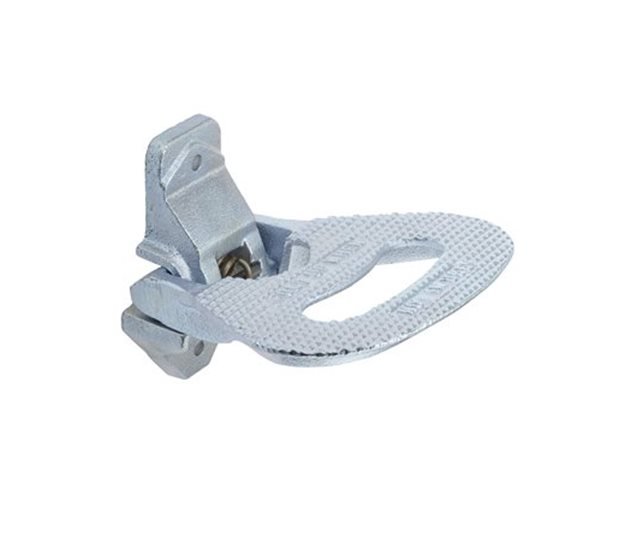

This heavy duty Folding Access Step (MPN 800 1014) is a robust, spring-loaded step designed to provide secure footing when accessing vehicle bodies and equipment enclosures. Manufactured from cast steel and zinc plated for corrosion protection, it features a wide tread with a diamond grip pattern to improve traction in wet or muddy conditions commonly found on worksites. The step folds away neatly when not in use to minimise snagging and protect the tread. Key dimensions are an overall width of 166 mm (6.54 in), a length of 130.5 mm (5.14 in), and a depth of 163 mm (6.42 in) when deployed. Ø8 mm (0.315 in) countersunk mounting holes are provided for a flush-fit fixing. Suitable for use on trucks, trailers, commercial vehicle bodies, modular buildings and generator sets where a compact, reliable access solution is required.
Key Features:
- Heavy duty cast steel construction for durability
- Zinc plated finish for corrosion resistance in harsh environments
- Spring-loaded folding action for quick deployment and tidy stowage
- Diamond grip pattern on wide tread for improved foot traction
- Overall width: 166 mm (6.54 in)
- Length: 130.5 mm (5.14 in)
- Depth (deployed): 163 mm (6.42 in)
- Ø8 mm (0.315 in) countersunk mounting holes for flush fixings
- Folding type step suited to space-limited installations
- Designed for commercial vehicles, trailers and static equipment housings
Typical Applications:
Commonly fitted to truck and trailer bodies to aid cab and body access, and used on commercial vehicles where safe, repeatable entry is needed. Also used on modular site buildings and generator enclosures to provide a compact, fold-away step at service doors and access hatches across plant, transport and construction fleets.
Also known as:
Fold-up access step, Drop-down step, Flip-down step, Retractable step, Bodywork access step
Product Specifications
| L&S Part No. | 800 1014 |
|---|---|
| Unit of Sale | 1 |
