Description
Overview:

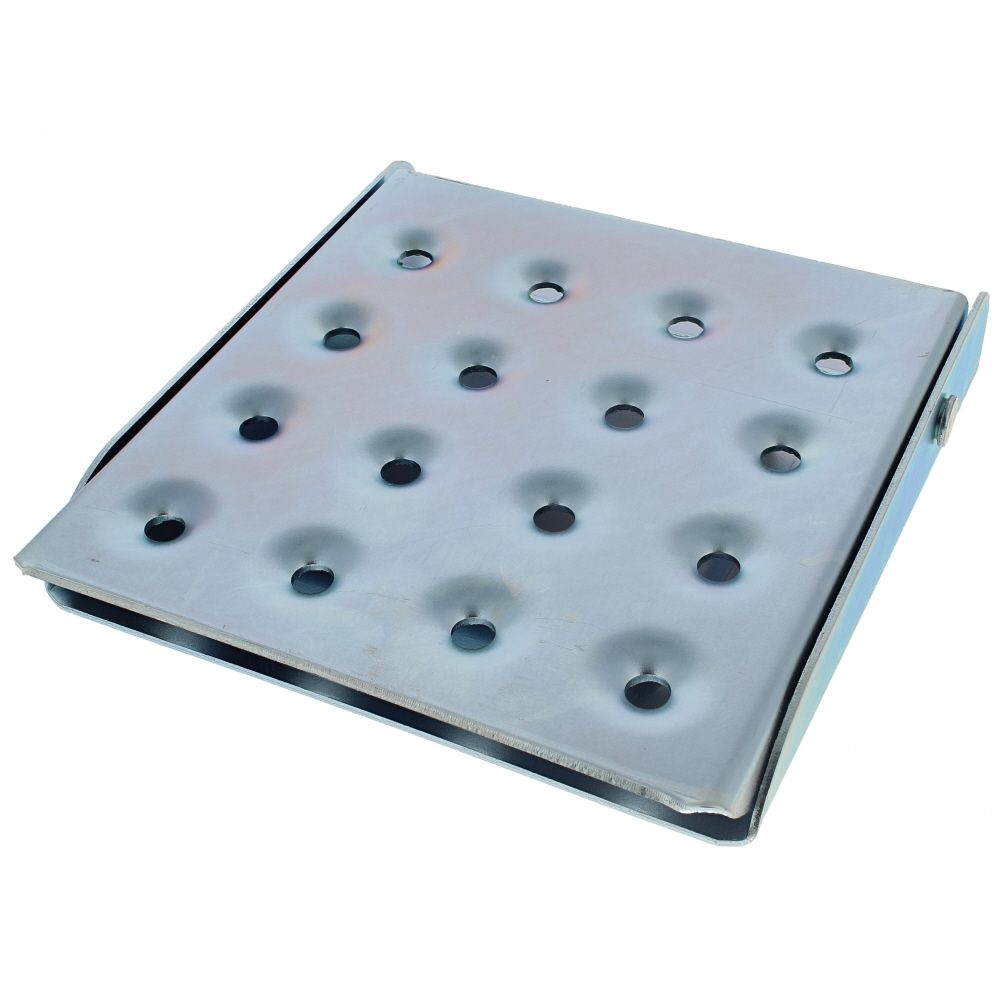

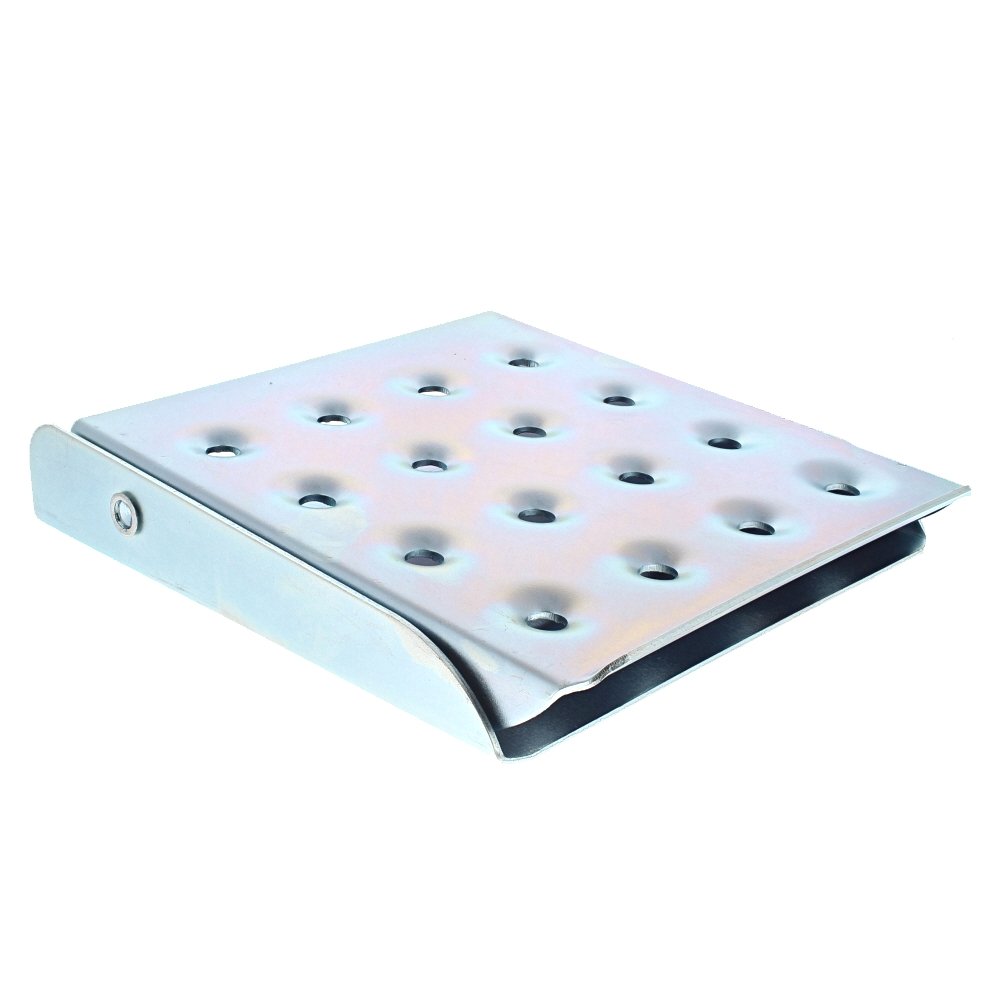

Folding Access Step, Large, Zinc Plated (MPN 800 1006) is a heavy‐duty, mild steel flip‐down step designed to provide safe, secure footing when accessing vehicle bodies and static plant enclosures. The large, square tread features 16 pressed grip pads to improve traction in wet or dirty conditions, while the zinc plated finish offers durable corrosion resistance for fleet and site use. The step folds up neatly when not in use to reduce projection and snagging risks. Overall dimensions are approximately 188.5mm high (7.42 in), 178.5mm wide (7.03 in) and 194mm deep (7.64 in). It fixes with countersunk fasteners through Ø6.5mm (0.26 in) holes and carries a maximum static load rating of 250kg (551 lb) when installed to a suitable mounting surface. Suitable for commercial vehicles, truck bodies, trailers, generators and modular buildings.
Key Features:
- Mild steel construction for durability
- Zinc plated finish for corrosion protection
- Large square tread with 16 pressed grip pads for secure footing
- Folding design to minimise projection when stowed
- Overall size: 188.5mm (7.42 in) H x 178.5mm (7.03 in) W x 194mm (7.64 in) D
- Countersunk fixing holes: Ø6.5mm (0.26 in)
- Maximum load rating: 250kg (551 lb)
Typical Applications:
Used on trucks and trailers for body and tail access, on commercial vehicle builds, and on static equipment such as generators and modular buildings where a compact, reliable step is required for routine servicing and access.
Also known as:
Folding step, Drop-down access step, Flip-up step, Truck body step, Vehicle boarding step
Product Specifications
| L&S Part No. | 800 1006 |
|---|---|
| Unit of Sale | 1 |
