Description
Overview:

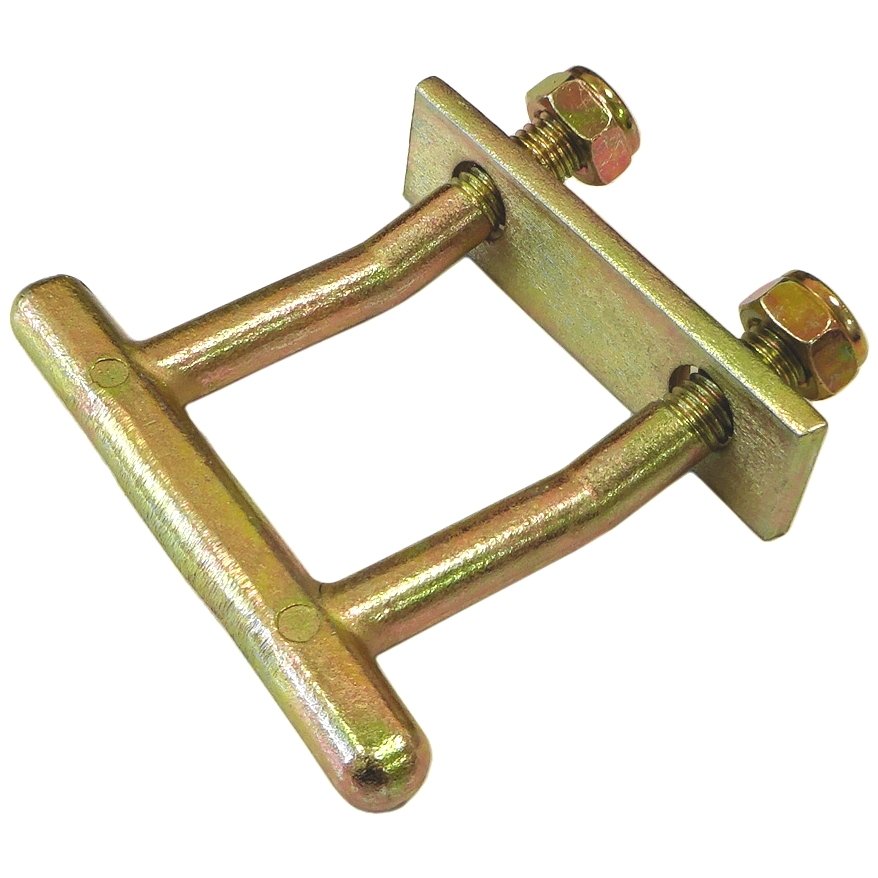

This heavy duty underfloor T-shaped lashing link (MPN 999 931) is a bolt-on load restraint point for fitting beneath vehicle floors. Manufactured from mild steel and protected with a zinc plated, clear passivated finish, it provides a durable anchor for securing cargo in demanding fleet use. The assembly is supplied with a backing plate and two M12 locknuts to simplify installation and spread the load under the deck. Overall dimensions are approximately 109 mm (4.29 in) long by 55 mm (2.17 in) wide, with a 25 mm (0.98 in) depth. Rated to a safe working load of 2,500 kg (2.5 t ≈ 5,512 lb), it is suitable for use on commercial trucks, trailers and horseboxes where a compact, reliable underfloor tie-down point is required to assist compliant load security.
Key Features:
- Heavy duty underfloor T-shaped lashing link for cargo restraint
- Mild steel construction for strength and durability
- Zinc plated, clear passivated finish for corrosion protection
- Bolt-on fixing supplied with backplate for load spread
- Includes 2 x M12 locknuts for secure installation
- Safe Working Load (SWL): 2,500 kg (2.5 t ≈ 5,512 lb)
- Length: 109 mm (4.29 in)
- Width: 55 mm (2.17 in)
- Depth: 25 mm (0.98 in)
- Suitable for trucks, trailers and horseboxes where underfloor anchors are required
Typical Applications:
Used as an underfloor lashing point on commercial trucks, plant and equipment trailers, horseboxes and similar bodies. Commonly fitted in the load area floor to provide a low-profile anchor for webbing straps, ropes and general load restraint fittings when securing goods for transport.
Also known as:
Underfloor Lashing Link; Floor Tie-Down Point; Lashing Ring; Floor Anchor; T-Bar Anchor; T-Fitting Lashing Point; Cargo Anchor
Product Specifications
| L&S Part No. | 999 931 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - 2.5 tonne load capacity for medium to heavy cargo - Compact size 108mm x 55mm fits confined spaces - Corrosion-resistant metal for outdoor durability - Low-profile cleat reduces strap wear - Compatible with straps, ropes, and chains |
