Description
Overview:

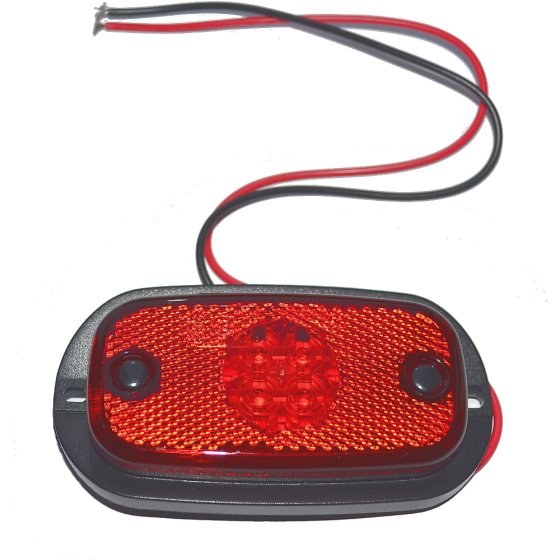

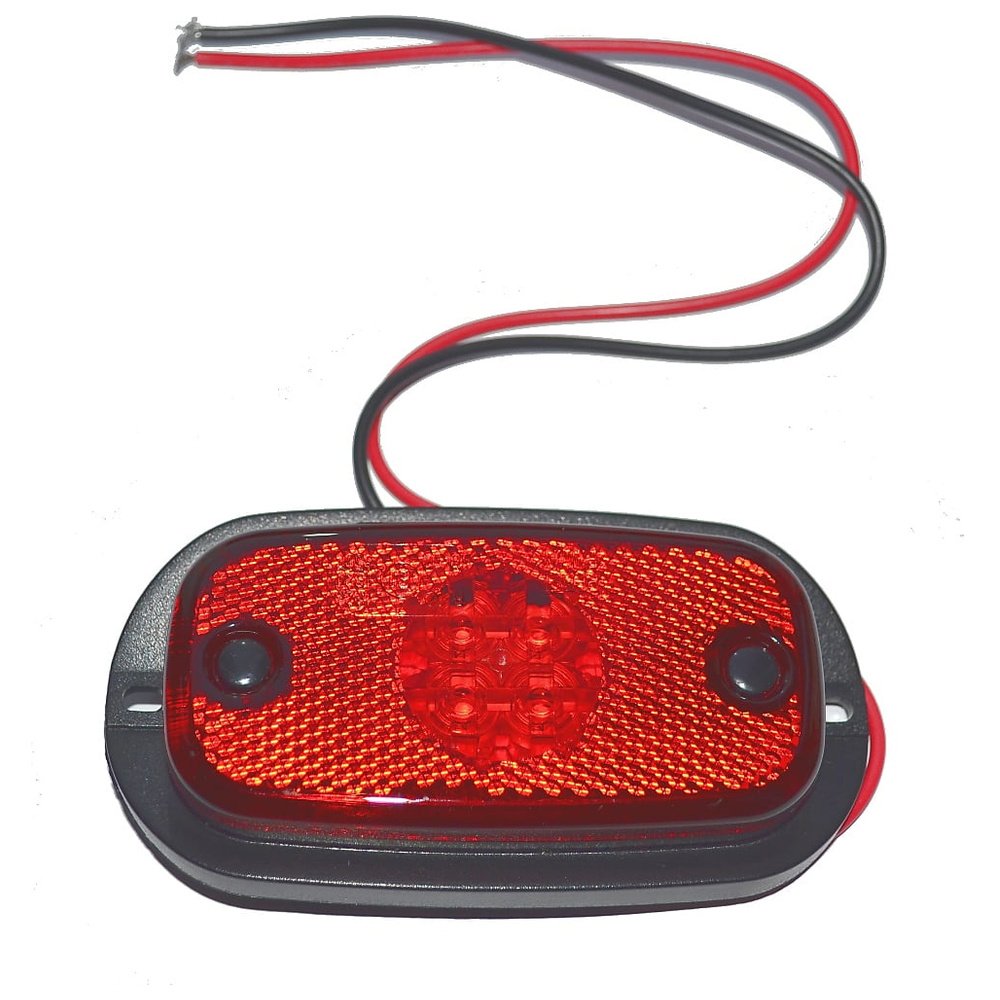

Rear Marker Lamp, Red LED, 12/24V, 120 x 46mm, IP68, 500mm Cable (MPN 802 172) is a compact, sealed LED rear position marker with a reflective element for enhanced visibility in low-light conditions. It uses 12 LEDs behind a red lens to deliver consistent output on both 12V and 24V systems, making it suitable for mixed fleets. The low-profile housing measures 119.6 x 45.9 x 20.4 mm (4.71 x 1.81 x 0.80 in) and is designed with concealed mounting so there are no visible fixings once installed. An IP68 rating protects the lamp from dust and water ingress, supporting reliable operation in harsh on-road and off-road environments. Supplied with a 500 mm (19.7 in) flylead for straightforward wiring, it provides a durable, low-power solution for rear marker duties on commercial vehicles, trailers, truck bodies and plant transport equipment.
Key Features:
- Colour: Red lens for rear position marking and reflective function
- Dual voltage operation: 12/24V for mixed-fleet compatibility
- LEDs: 12 solid-state LEDs for long service life and low power draw
- Power rating: 1.5W (12V); 3W (24V)
- Dimensions: 119.6 x 45.9 x 20.4 mm (4.71 x 1.81 x 0.80 in)
- Cable length: 500 mm (19.7 in) flylead for easy connection
- Ingress protection: IP68 sealed against dust and water
- Operating temperature: -30°C to +50°C (-22°F to +122°F)
- Mounting: Concealed design with no visible fixings
- Low-profile form factor for tidy installation on bodywork
- Two-function performance: marker illumination with reflective device
Typical Applications:
Used as a rear position marker on commercial vehicles, rigid trucks, box bodies, tippers, plant and machinery transporters, and general-duty trailers. Ideal for rear corners or tailboard areas where a compact, sealed lamp with hidden fixings is preferred and a reflective element is beneficial.
Also known as:
Rear position lamp, Rear outline marker, Red marker light, LED rear marker, Truck/trailer marker light
Product Specifications
| L&S Part No. | 802 172 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Trailers |
| Key Features | - Dual-voltage operation for 12 V and 24 V systems - E approved and IP67 rated for dust and water resistance - Energy-efficient LEDs for low power draw - Integral reflex reflector for visibility when unpowered - Compact design fits on body panels or lamp rails |
