Description
Overview:

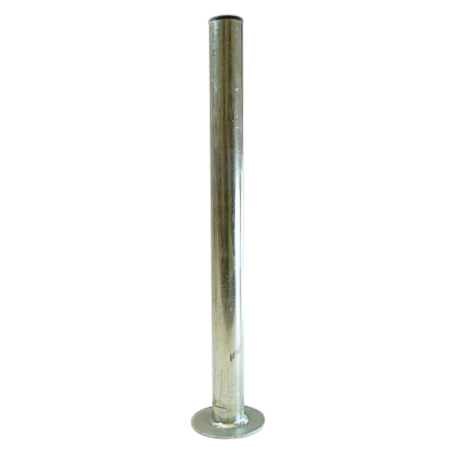

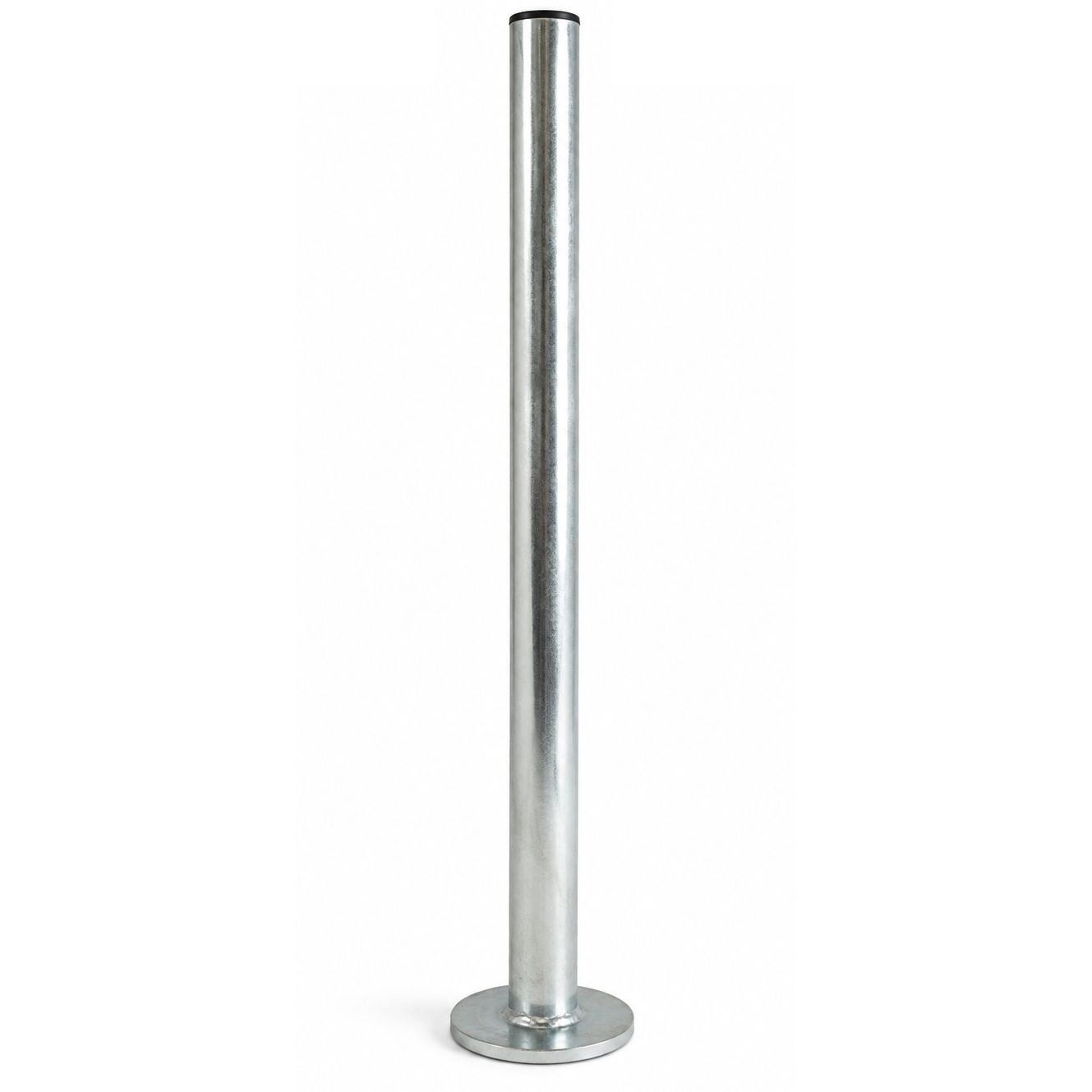

This 48 mm trailer prop stand (MPN 800 900) is a non-wheeled support leg for holding an unhitched trailer level and steady during parking, loading or unloading. It has a smooth 48 mm (1 7/8") tube and an overall length of 900 mm (35 7/16"). The smooth tube is intended for PD3 bracket systems using smooth clamps; do not mix with serrated clamps. It is not a jockey wheel and is not for manoeuvring. Supplied without a clamp; order the PD3 bracket assembly separately (L&S 800 120 cast or 800 198 pressed steel).
Specification:
- Tube diameter: 48 mm (1 7/8")
- Tube profile: Smooth (plain)
- Length: 900 mm (35 7/16")
- Fitment system: PD3 bracket system
Fitment:
- Fits trailers using PD3 brackets
- 800 120 - L&S PD3 bracket assembly (48mm cast)
- 800 198 - L&S PD3 bracket assembly (pressed steel)
- 800 103 - Shorter 750mm version of this stand
Also known as:
- Trailer leg
- Support stand
- Prop leg
- Landing leg
- Drop leg
- Stabiliser leg
- Trailer support tube
Product Specifications
| L&S Part No. | 800 900 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - Tube diameter: 48 mm, smooth profile - Overall length: 900 mm - Compatible with PD3 bracket systems - Use with 800 120 (cast) or 800 198 (steel) - Not for manoeuvring; no wheel included |
