Description
Overview:

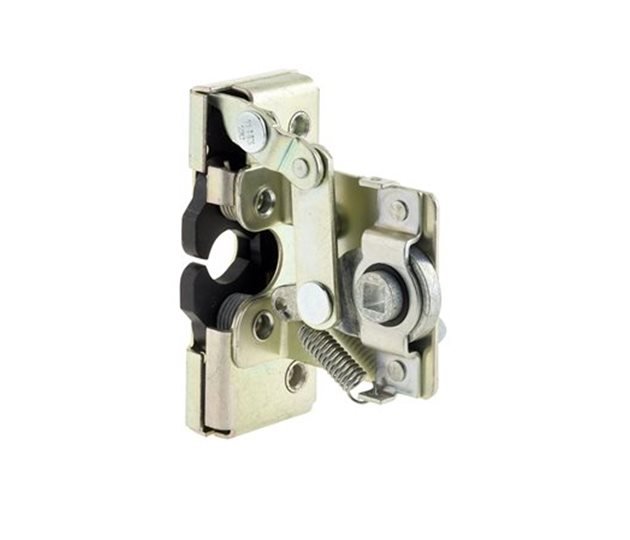

The Two Rotor Latch Left Hand, 8mm Square Drive, Zinc Plated, 114 x 46 mm (MPN 800 1367) is a compact left-hand rotary latch for secure closure of doors, hatches and access panels on commercial vehicles and equipment. Manufactured from mild steel for robustness, it features a two-stage latching mechanism for positive primary and secondary engagement. The latch is zinc plated with a clear chromate finish to resist corrosion in service. Release is via a spring-loaded 8 mm square drive (approx 5/16 in), allowing straightforward connection to external handles or linkage systems. With a body size of 114 mm long by 46 mm wide and 20 mm thick (4.49 x 1.81 x 0.79 in), and 1/4-20 UNC fixing threads (major Ø approx 6.35 mm), it suits a wide range of truck, trailer and plant body installations where a dependable left-hand latch is required.
Key Features:
- Left-hand two-rotor latch with positive two-stage latching for secure closure
- Spring-loaded 8 mm square drive release linkage (approx 5/16 in)
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion resistance
- Body length 114 mm (4.49 in), width 46 mm (1.81 in), thickness 20 mm (0.79 in)
- Fixing thread 1/4-20 UNC (major diameter approx 6.35 mm)
- Suitable for linkage to external handles or remote actuators
- TriMark mechanism supplied via Albert Jagger
Typical Applications:
Used on trucks, trailers, buses, generator sets, horseboxes and cab bodies. Commonly fitted to access doors, hatches and service compartments on commercial vehicle bodies and plant support equipment where a compact, reliable left-hand rotary latch is needed.
Also known as:
- Rotary Door Latch
- Double Rotor Latch
- Left-Hand Rotary Latch
- Square Drive Door Latch
- Vehicle Body Rotor Latch
Product Specifications
| L&S Part No. | 800 1367 |
|---|---|
| Unit of Sale | 1 |
