Description
Overview:

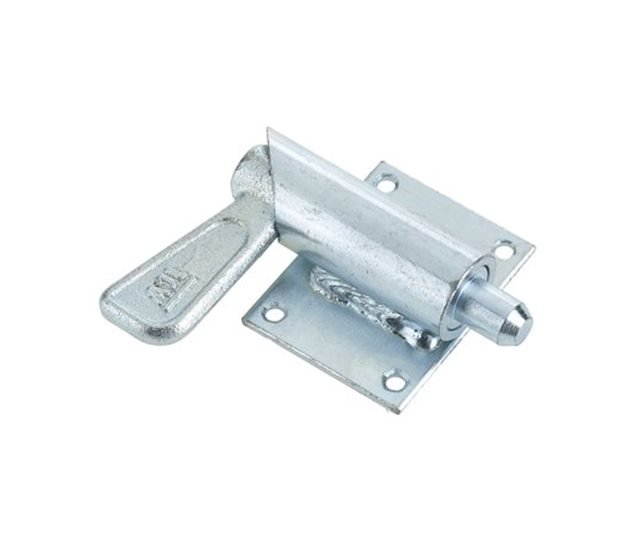

The Left Hand Shoot Bolt (MPN 800 1081) is a medium duty, bolt-on latch for vehicle and equipment bodywork where a positive mechanical shoot is required. Manufactured from mild steel with a zinc plated, clear passivated finish, it is supplied with a side mounting plate for straightforward installation. The bolt uses a Ø10 mm (0.39 in) pin with a 14 mm (0.55 in) stroke to secure doors, hatches or panels. The compact body measures 57 mm (2.24 in) in length and Ø22 mm (0.87 in) in diameter, and the side plate provides four Ø4 mm (0.16 in) fixing holes for stable mounting to steel, aluminium or timber structures. Typical applications include commercial vehicle rear and side doors, trailer bodies, skips, balers, agricultural equipment, machinery guards and gates.
Key Features:
- Medium duty left-hand shoot bolt with side mounting plate
- Mild steel construction with zinc plated, clear passivated finish
- Bolt-on fitting with 4 x Ø4 mm (0.16 in) fixings
- Pin diameter: Ø10 mm (0.39 in)
- Stroke: 14 mm (0.55 in) travel
- Body length: 57 mm (2.24 in)
- Body diameter: Ø22 mm (0.87 in)
- End plate size: 41.5 x 50 x 2 mm (1.63 x 1.97 x 0.08 in)
- Suited to doors, hatches and panels on vehicle and plant bodywork
Typical Applications:
Used on commercial vehicle bodies, vans and trailers to secure side or rear doors; on plant and machinery for guarding and access panels; and on skips, balers, agricultural equipment and gates where a compact, left-hand shoot action is needed.
Also known as:
Barrel bolt
Door shoot bolt
Gate bolt
Shoot latch
Product Specifications
| L&S Part No. | 800 1081 |
|---|---|
| Unit of Sale | 1 |
