Description
Overview:

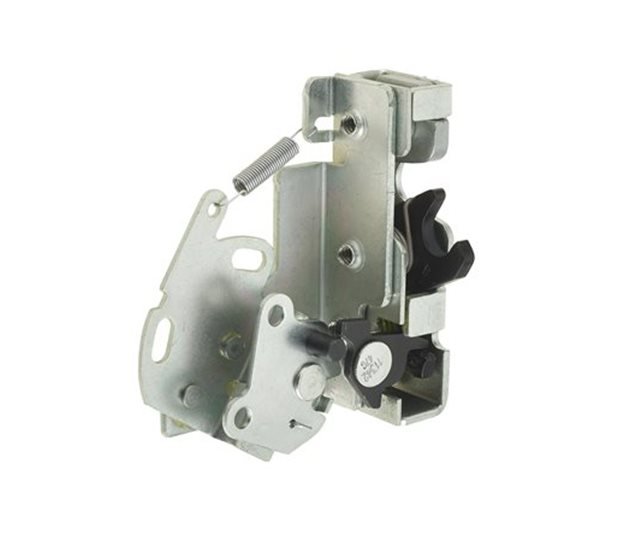

The Single Rotor Latch Left Hand, Zinc Plated Steel, 98.5 x 32mm, 20mm Thick (MPN 800 1366) is a compact, slim-profile latch for left-hand door and panel configurations on commercial vehicles and equipment. Manufactured from mild steel and finished with a zinc plate and clear chromate, it offers durable service in fleet and bodybuilder applications. The latch provides a controlled two-stage closing action and is designed to interface with multi-point linkage systems and compatible locking sub-assemblies from TriMark. With a 98.5 mm body length and 32 mm width, it fits tight envelopes while delivering positive rotor engagement. Mounting uses 1/4-20 UNC fixings (1/4 in diameter, 20 TPI), making it straightforward to integrate into door frames, racks, housings and enclosures across transport and plant environments.
Key Features:
- Left-hand operation for LH door and panel layouts
- Single-rotor, two-stage latching action for positive retention
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion protection
- Body dimensions: 98.5 mm (3.88 in) length x 32 mm (1.26 in) width x 20 mm (0.79 in) thickness
- Fixing: 1/4-20 UNC mounting (1/4 in / 6.35 mm diameter, 20 TPI / ~1.27 mm pitch)
- Interfaces with multi-point linkage; supports compatible locking sub-assemblies
- TriMark brand components
- Slimline form factor suited to compact installations
Typical Applications:
Used on trucks, trailers, buses and horseboxes for service doors, access panels and compartments. Also suitable for generator sets and vehicle cabs where a left-hand, slimline rotor latch is required, and where multi-point linkage or separate locking sub-assemblies are specified.
Also known as:
Slimline left-hand rotor latch
Single rotor door latch
Two-stage LH latch mechanism
Left-hand compartment latch
LH rotary latch
Product Specifications
| L&S Part No. | 800 1366 |
|---|---|
| Unit of Sale | 1 |
