Description
Overview:

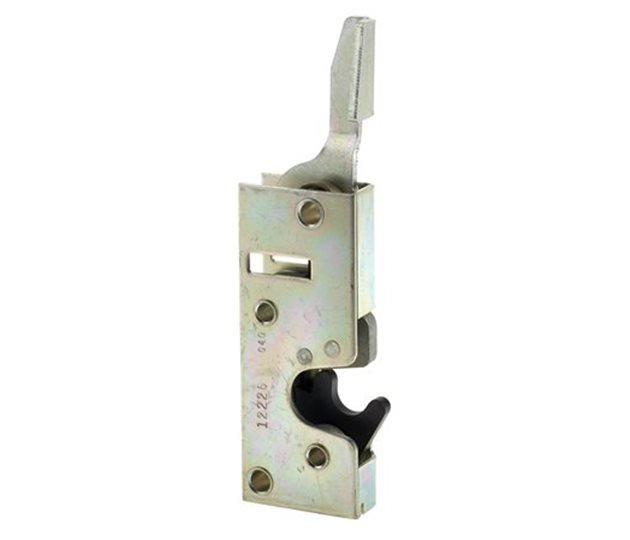

The Single Rotor Latch Left Hand, Vertical Lever, 104x41x17.5mm, Zinc-Plated (MPN 800 1385) is a compact rotary latch designed for secure closure on commercial vehicle and equipment enclosures. Built from mild steel and finished in zinc plating with a clear chromate passivation, it provides a durable, corrosion-resistant solution suitable for demanding service environments. This left-hand unit features a vertical finger-release lever and a two-stage latching action to help ensure positive engagement and controlled opening. Branded TriMark, the latch measures 104 mm (4.09 in) in overall length, 41 mm (1.61 in) in width and 17.5 mm (0.69 in) in thickness, with a mounting hole size of Ø6.5 mm (0.26 in). It is commonly specified on bodywork and enclosures across road transport and plant sectors where reliable, repeatable latch performance is required.
Key Features:
- Left-hand orientation with vertical finger-release lever for panel and door applications
- Two-stage latching mechanism for secure closure and controlled release
- Mild steel construction for strength and service durability
- Zinc-plated finish with clear chromate for corrosion resistance
- Overall length: 104 mm (4.09 in)
- Overall width: 41 mm (1.61 in)
- Body thickness: 17.5 mm (0.69 in)
- Mounting hole size: Ø6.5 mm (0.26 in) for compatible fixings
- Brand: TriMark
- Single rotor latch design for compact installation envelopes
Typical Applications:
Suitable for use on commercial vehicles and equipment including trucks, trailers, buses, generator sets, horseboxes and cab enclosures. Commonly installed on access doors, service panels and compartments where a compact, secure rotary latch is required.
Also known as:
Rotary latch; Two-stage rotary latch; LH rotor latch; Vertical lever rotor latch; Single-point rotor latch
Product Specifications
| L&S Part No. | 800 1385 |
|---|---|
| Unit of Sale | 1 |
