Description
Overview:

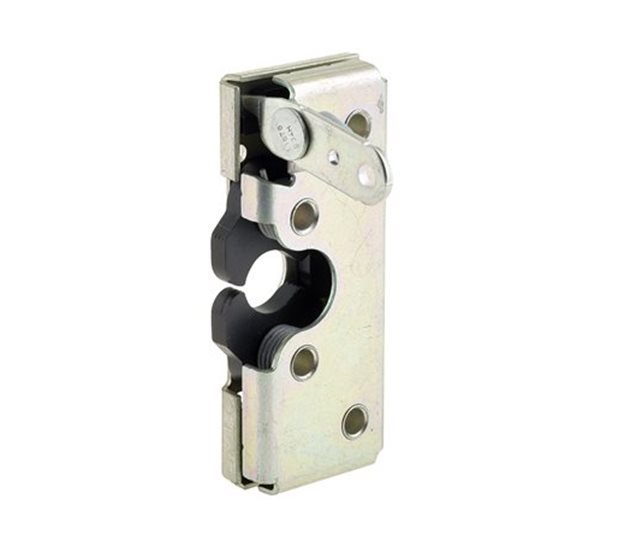

This left hand two rotor latch with through-axles is a compact steel latch for commercial vehicle and equipment doors. Two Rotor Latch, Left Hand, Through Axles, Zinc Plated, 115 x 46 x 20mm (MPN 800 1380) features a two-stage latching action for secure primary and secondary engagement, released by a single-point lever. The body is manufactured from mild steel and zinc plated with a clear chromate passivation for corrosion resistance in fleet and plant environments. Overall size is 115 mm (4.53 in) long, 46 mm (1.81 in) wide and 20 mm (0.79 in) thick, with 7 mm (0.28 in) fixing holes for straightforward mounting. Built around a TriMark mechanism, it suits doors, hatches and lockers on heavy-duty applications where a robust, serviceable latch is required.
Key Features:
- Left hand orientation with two-stage rotor latching for secure primary/secondary hold
- Single-point standard release lever for straightforward operation
- Through-axles configuration to suit the specified latch series
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion protection
- Overall length 115 mm (4.53 in); width 46 mm (1.81 in); body thickness 20 mm (0.79 in)
- Mounting/fixing holes: 7 mm (0.28 in) diameter
- TriMark mechanism quality and compatibility
- Suitable for heavy-duty vehicle and equipment doors, hatches and compartments
Typical Applications:
Used on trucks, trailers and buses for body doors, lockers and access panels; on generator sets and plant for enclosure doors; and on horseboxes and cabs where a compact left hand two-rotor latch with a single-point lever is specified. Common across fleet builds and refurbishments in the transport, towing and construction sectors.
Also known as:
Double rotor latch, Rotary latch, Two-stage rotor latch, Left-hand 1-point latch, Through-axles latch
Product Specifications
| L&S Part No. | 800 1380 |
|---|---|
| Unit of Sale | 1 |
