Description
Overview:

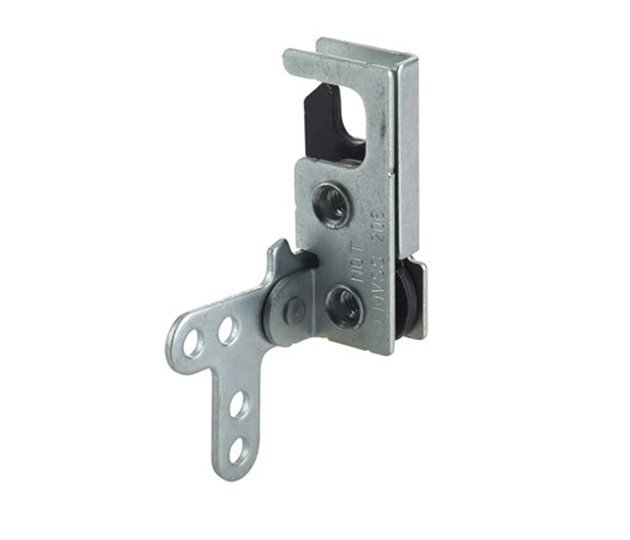

The Single Rotor Mini Latch, Left Hand, Zinc Plated (MPN 800 1389) is a compact steel latch for light to medium-duty access doors and service panels on commercial and specialist vehicles. Manufactured from mild steel with a zinc plated clear-chromate finish, it provides a durable, corrosion-resistant closure solution in a small footprint. The mechanism is a single-stage, single-rotor design operated by an L-shaped release lever with a 4-point action for positive engagement. The body measures 63.5 mm (2.50 in) in length, 29 mm (1.14 in) in width and 13.5 mm (0.53 in) in thickness, making it suitable where space is limited. It accepts 1/4-20 UNC fixings, a common thread in vehicle and body hardware. Typical uses include truck and trailer side lockers, bus and coach access hatches, generator set enclosures, horsebox compartments and cab installations where a handed latch is required.
Key Features:
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion resistance
- Left-hand configuration for handed door and panel layouts
- Single-rotor, single-stage latching for compact, reliable closure
- L-shaped release lever with 4-point action for positive operation
- Overall length: 63.5 mm (2.50 in)
- Overall width: 29 mm (1.14 in)
- Overall thickness: 13.5 mm (0.53 in)
- Fixing thread: 1/4-20 UNC (approx. 6.35 mm OD, 1.27 mm pitch)
- Suitable for body hardware on trucks, trailers, buses, gensets, horseboxes and cabs
- TriMark design, 050-0500 series compatibility
Typical Applications:
Used on commercial vehicles and bodywork including truck side lockers, trailer tool and equipment doors, bus and coach access panels, generator set enclosures, horsebox tack and service doors, and cab access points. Suited to compact closures where a durable, left-hand rotor latch is required.
Also known as:
Rotor latch; Mini rotor latch; Single-stage rotor latch; Left-hand door latch; LH mini latch; TriMark 050-0500 series latch
Product Specifications
| L&S Part No. | 800 1389 |
|---|---|
| Unit of Sale | 1 |
