Description
Overview:

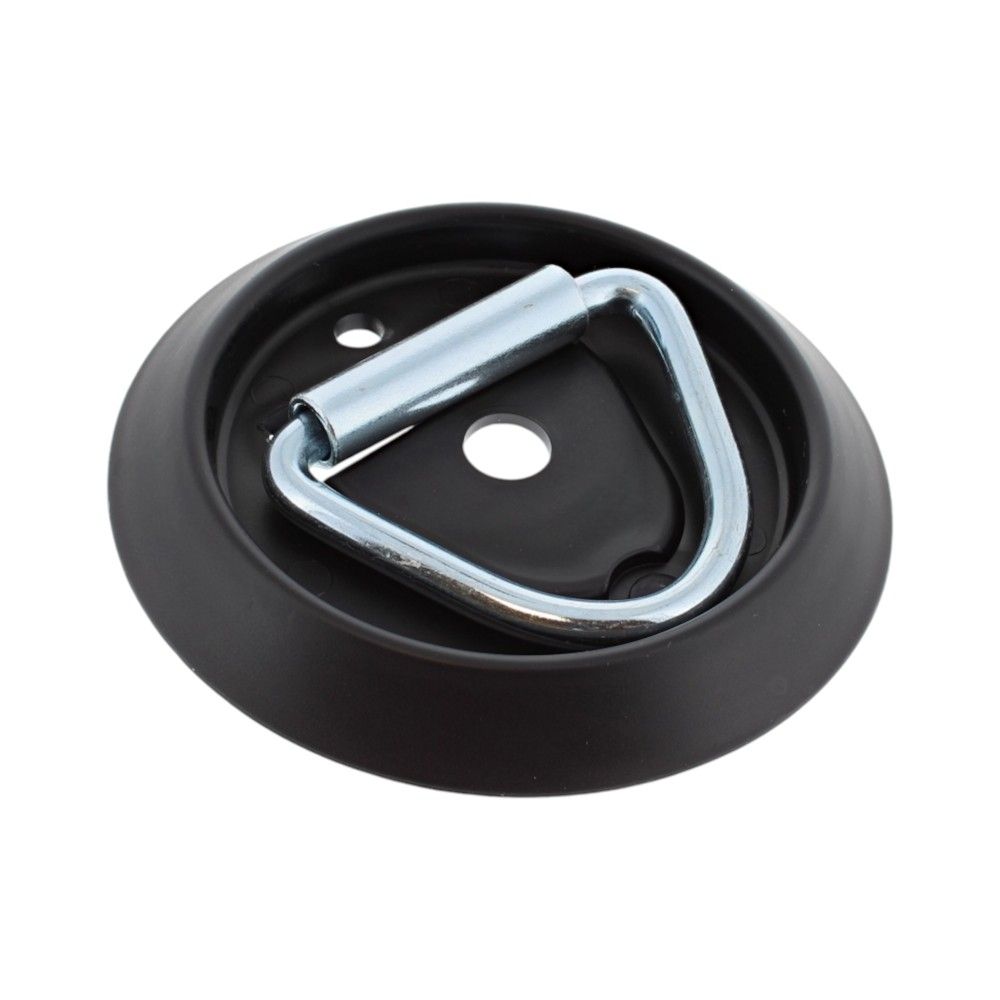

This recessed lashing ring with plastic dish (MPN 800 358) is a lightweight tie-down point for securing loads on commercial vehicles and trailers. It combines a triangular mild steel ring with a black plastic recess dish so the ring sits close to flush when not in use, reducing snagging on decks and floors. The steel components are zinc plated with a clear passivated finish for added corrosion resistance in everyday service. Designed for bolt-on installation, it uses a single through fixing (Ø10 mm / 0.39 in) for straightforward mounting into timber or steel substrates. The overall size is 103 x 103 mm (4.06 x 4.06 in) with a recess depth of 12.5 mm (0.49 in), offering a compact footprint for tight spaces. With a Safe Working Load of 362 kg (approx. 800 lb), it is suited to light-duty load restraint using webbing straps, hooks or rope on trucks, trailers and horseboxes.
Key Features:
- Mild steel construction for dependable strength
- Zinc plated, clear passivated finish for corrosion resistance
- Recessed black plastic dish keeps ring near flush when stowed
- Triangular lashing ring provides a positive attachment point
- Bolt-on fitting for simple installation
- Single through fixing: 1 x Ø10 mm (approx. 0.39 in)
- Overall size: 103 x 103 mm (4.06 x 4.06 in)
- Recess depth: 12.5 mm (0.49 in)
- Safe Working Load (SWL): 362 kg (approx. 800 lb)
- Lightweight duty rating for general restraint tasks
Typical Applications:
Used as a recessed anchor point on truck and trailer bodies, and within horseboxes, to secure general cargo with straps or rope. Suitable for installation in deck panels, load area floors or side structures where a low-profile lashing point is required.
Also known as:
Tie-down ring; Recessed D-ring; Dish-mounted lashing point; Cargo anchor point; Floor deck ring; Lashing eye
Product Specifications
| L&S Part No. | 800 358 |
|---|
