Description
Overview:

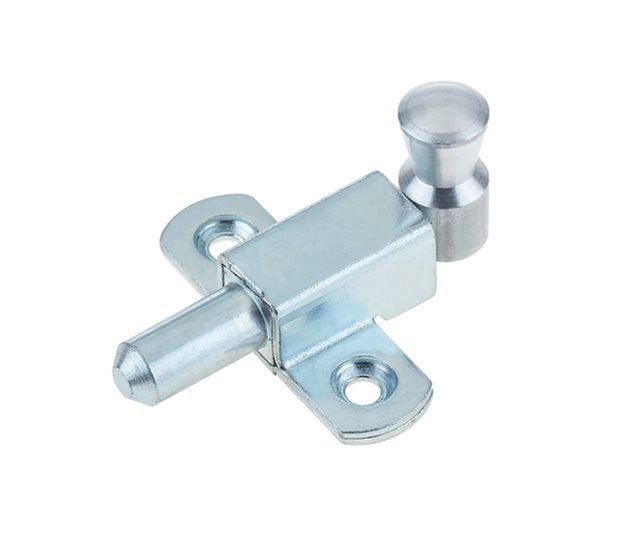

The Spring-Loaded Shoot Bolt (MPN 800 1030) is a compact, bolt-on fastening component for securing doors, lids and access panels where a positive spring action is required. Manufactured from mild steel with a clear passivated zinc-plated finish for general corrosion protection, it combines a 7 mm (0.28 in) pin with a 15 mm (0.59 in) stroke to deliver reliable engagement and quick release. The body measures 43.5 mm (1.71 in) long by 11 mm (0.43 in) wide, and the end plate is 35 x 11 x 2 mm (1.38 x 0.43 x 0.08 in). Two countersunk fixing holes at 5 mm (0.20 in) diameter allow straightforward installation to brackets or door frames. Suitable for commercial vehicle bodywork, trailers and general machinery where a lightweight spring bolt is preferred.
Key Features:
- Mild steel construction for robustness in everyday service
- Zinc plated, clear passivated finish for corrosion resistance
- 7 mm (0.28 in) pin diameter for positive engagement
- 15 mm (0.59 in) stroke for dependable travel and retention
- Overall body length 43.5 mm (1.71 in) and width 11 mm (0.43 in)
- End plate size 35 x 11 x 2 mm (1.38 x 0.43 x 0.08 in)
- Bolt-on design with 2 x 5 mm (0.20 in) countersunk fixings
- Compact, lightweight pattern for tight installation spaces
- Brand: Pinet
Typical Applications:
Used on commercial vehicle and van doors, internal compartments and lockers, plant and agricultural machinery guards, skips and baler access panels, as well as gates and trailer bodywork. Provides a simple spring-driven shoot to secure panels and doors during transport or operation.
Also known as:
Spring bolt, Shoot latch, Spring plunger bolt, Door shoot, Plunger latch
Product Specifications
| L&S Part No. | 800 1030 |
|---|---|
| Unit of Sale | 1 |
