Description
Overview:

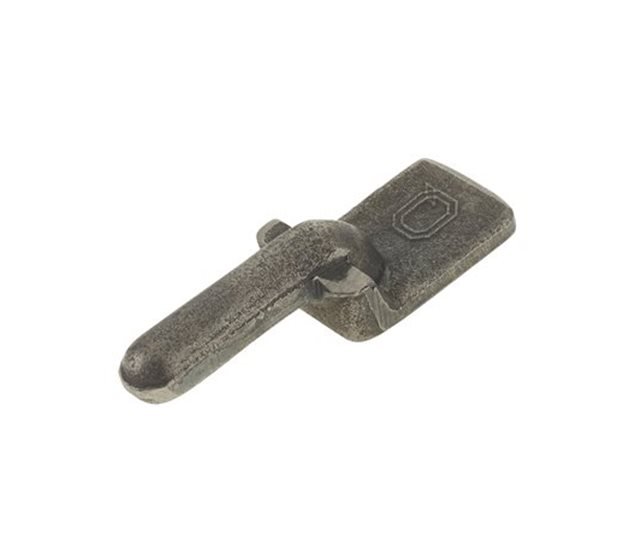

Weld-On Tailboard Gudgeon Pin (MPN 800 1132) for fabricating hinge points on tailboards, dropside gates and doors. Manufactured from mild steel for reliable welding and straightforward fabrication, it is supplied in self colour (bare steel) ready for fitting and subsequent finishing as required. The pin measures Ø12.5 mm (approximately 1/2 in) with a 40 mm length (approximately 1.57 in), and is carried on a rectangular weld pad measuring 26 x 45 mm (approximately 1.02 x 1.77 in). Designed to provide a compact, robust pivot for matching hinge straps or eyes, it suits commercial vehicle bodywork and general haulage, plant and agricultural equipment. Typical use is on tailboards for tippers, rigid trucks and trailers, as well as on skips and balers. The weld-on design allows positioning to suit the build, making it suitable for both new installations and repairs in workshops and fleet maintenance.
Key Features:
- Mild steel construction for easy welding and fabrication
- Self colour (bare) finish ready for welding and post-finish as required
- Weld-on fixing type for flexible positioning on the body or frame
- Pin size Ø12.5 mm x 40 mm long (approx 1/2 in x 1.57 in)
- Base/weld pad dimensions 26 x 45 mm (approx 1.02 in x 1.77 in)
- Compact hinge pin for tailboards and dropside gates
- Suitable for trucks, tippers, trailers, skips and balers
- General hardware for tailboard fittings in commercial bodywork
Typical Applications:
Used as the fixed hinge pin on tailboards and dropside bodies for rigid trucks and tippers, plant and general haulage trailers, and on equipment such as skips and balers. Commonly welded to body posts, chassis members or frames to create a durable pivot for a mating hinge strap or eye on the moving panel.
Also known as:
Weld-on hinge pin, tailgate hinge pin, tailboard pin, hinge gudgeon, weld-on gudgeon
Product Specifications
| L&S Part No. | 800 1132 |
|---|---|
| Unit of Sale | 1 |
