Description
Overview:

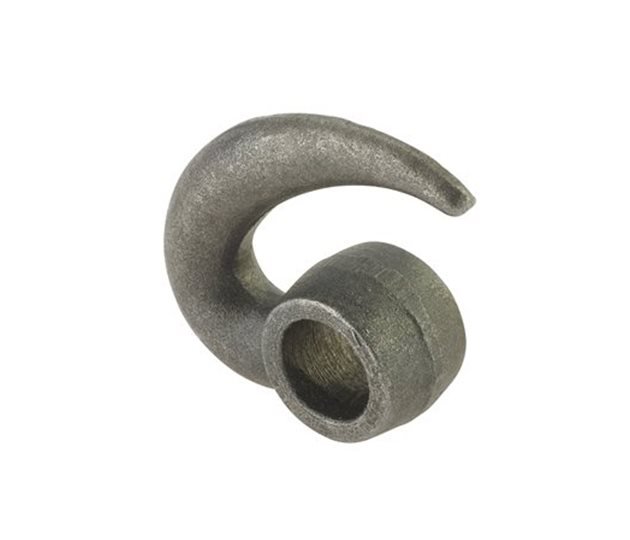

This tailboard locking bar hook (MPN 800 1234) is a forged steel, weld-on component used to locate and secure a round locking bar on tailboards and tailgates. The hook has a 21 mm (0.83 in) bore to suit a 20 mm (0.79 in) bar, providing the necessary clearance for reliable engagement. Supplied in self colour, it is ready for welding to the body or pillar and can be painted or finished after fabrication to match the vehicle or equipment. The compact form factor makes it suitable for bodybuilders, repair shops and fleet maintenance where robust hardware is required. Typical uses include tipper bodies, general haulage trucks, plant and utility trailers, agricultural balers and waste skips where a positive mechanical latch point is needed for the tailboard locking bar. Overall size is 82 mm long (3.23 in), 68 mm wide (2.68 in), and 26.5 mm high (1.04 in).
Key Features:
- Forged steel construction for strength and durability
- Self colour (uncoated) finish for straightforward welding and post-finish
- Weld-on fitting for permanent installation to bodywork or pillars
- Hook bore Ø21 mm (0.83 in) to suit Ø20 mm (0.79 in) locking bars
- Overall dimensions: length 82 mm (3.23 in), width 68 mm (2.68 in), height 26.5 mm (1.04 in)
- Suitable for use on tailboard locking systems across trucks, trailers, tippers, balers and skips
- Designed for round bar retention to provide a positive latch point
Typical Applications:
Used as the receiving hook for a round locking bar on tailboards and tailgates fitted to tippers and general haulage trucks. Also common on plant and equipment trailers, agricultural balers and waste skips where a welded bar keeper is required to secure the board or gate during transport and operation.
Also known as:
Tailboard bar keeper, tailgate hook, locking bar catch, weld-on bar hook, locking bar keeper, tipper tailgate hook
Product Specifications
| L&S Part No. | 800 1234 |
|---|---|
| Unit of Sale | 1 |
