Description
Overview:

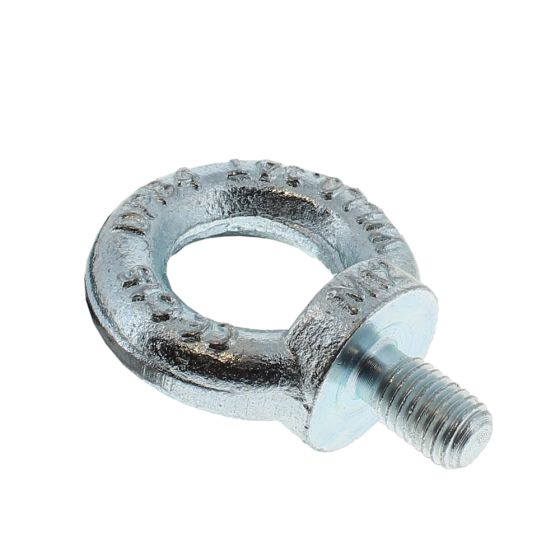

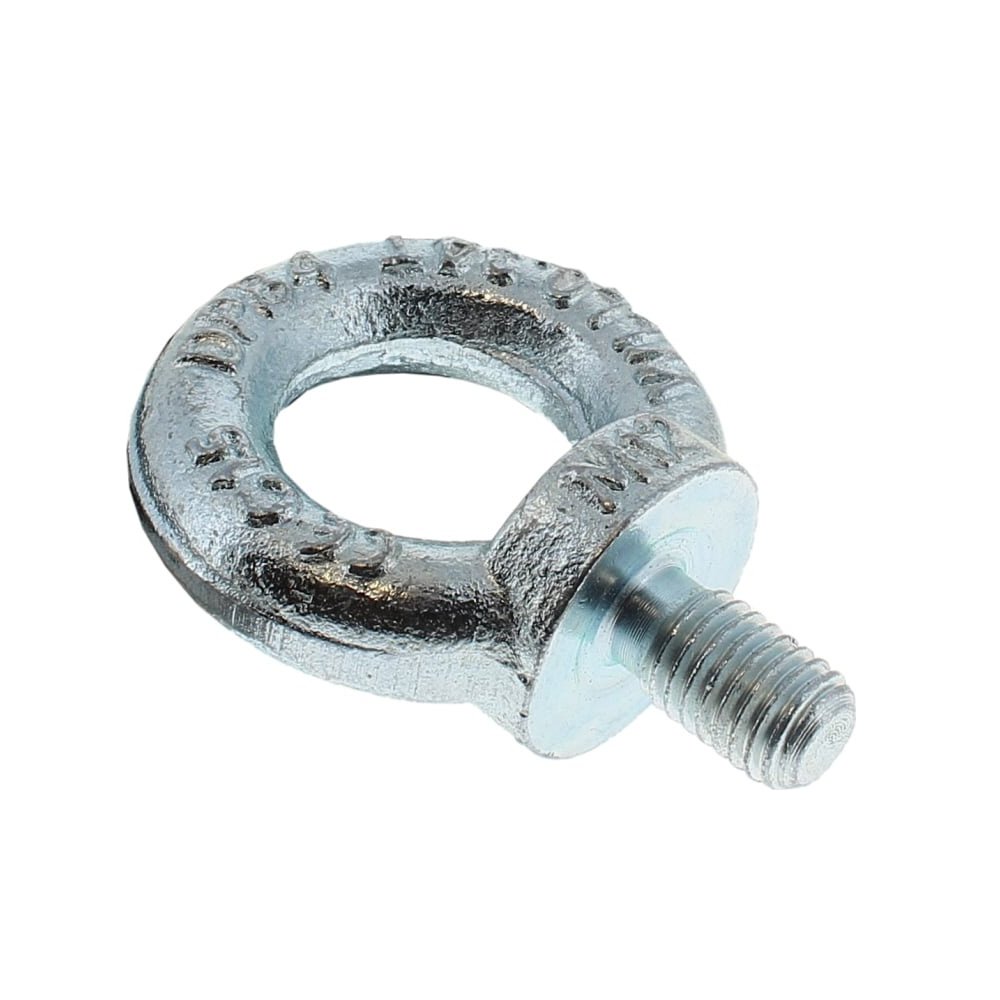

The Eyebolt M12 Mild Steel 30mm I/D DIN 580 is a shouldered lifting eye for secure attachment points on machinery and structures. Made from durable mild steel with an electro-galvanised (zinc-plated) finish, it offers dependable strength with added resistance to rust and wear. The metric M12 thread suits standard tapped holes or can be through-bolted with a nut and washer where appropriate. A 30 mm (1.18 in) internal eye diameter allows easy connection of hooks, shackles, chain or webbing slings. Built to the DIN 580 pattern, it meets the standard's Working Load Limit performance requirements when installed and used correctly. Suitable for construction and garden machinery, including generators, compactors, pumps and mower decks, where safe, repeatable lifting or secure tie-down points are needed.
Key Features:
- DIN 580 pattern shouldered eyebolt for reliable, straight-line lifting
- M12 metric coarse thread for broad compatibility with standard tapped holes
- 30 mm (1.18 in) internal eye diameter for easy attachment of shackles, hooks and slings
- Mild steel construction for a solid balance of strength and toughness
- Electro-galvanised (zinc-plated) finish for improved corrosion resistance in outdoor use
- Smooth, rounded eye profile helps reduce wear on ropes, chains and webbing
- Fits many machinery mounting points and fabrication plates; suitable for through-bolting with a nut and washer where applicable
- Simple to fit and replace using standard workshop tools
- Meets DIN 580 W.L.L performance requirements when installed in the correct material and thread engagement
- Neutral silver finish blends with most equipment and hardware
Typical Applications:
Used as a lifting or securing point on plant, garden machinery and workshop fixtures. Common on engine blocks, gearboxes, pumps, generators, plate compactors, pressure washers, mower decks and fabricated frames. Suitable for hoisting, guiding, restraining loads during transport, and rigging temporary lifting arrangements with chain, rope, or webbing slings, provided loading direction and installation follow best practice.
Also known as:
Ring bolt, collared eyebolt, DIN 580 eye, DIN 580 ring bolt, M12 eye bolt, M12 lifting eye, M12 eyelet bolt, shouldered lifting eye, steel lifting ring, machinery lifting point.
Product Specifications
| L&S Part No. | 492 246 |
|---|---|
| Unit of Sale | 1 |
