Description
Overview:

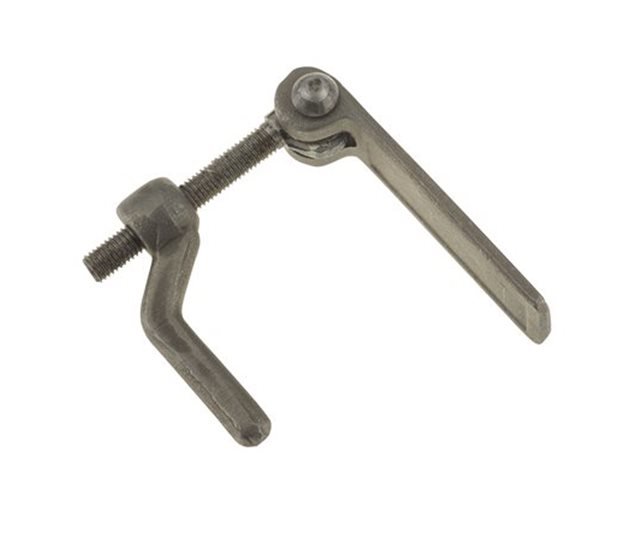

Ramp Fastener Assembly (MPN 800 1148) for securing loading ramps, tailgates and access doors on plant, agricultural and commercial equipment. Manufactured from mild steel with a self colour (plain) finish, this assembly provides a robust mechanical latch point where a simple, positive fastening is required. Supplied as a complete unit comprising shank, handle and plate, it is suited to heavy service environments on bodies and frames where space is limited. The threaded section is M12 for straightforward integration with common hardware, and the compact body dimensions support use on steel fabrications, box sections and bracketry. Typical uses include keeping hinged ramps shut in transit, holding access panels closed on static machinery, and retaining doors on waste handling equipment. Dimensions are sized for trade replacement and new build applications, with overall length 125 mm (4.92 in), width 38 mm (1.50 in) and plate thickness 7.5 mm (0.30 in). The M12 threaded shank is 86.5 mm long (3.41 in), allowing adequate take-up through plates, ramp leaves or keepers. The self colour finish can be over-painted or otherwise finished to suit the host body or corrosion protection system.
Key Features:
- Mild steel construction for durability in fleet and site use
- Self colour (plain) finish, suitable for painting or finishing on installation
- M12 threaded shank, 86.5 mm (3.41 in) length for versatile through-fixing
- Overall length 125 mm (4.92 in) for compact installations
- Plate width 38 mm (1.50 in) for common bodywork and ramp sections
- Plate thickness 7.5 mm (0.30 in) for a sturdy bearing surface
- Supplied as an assembly: shank, handle and plate included
- Designed for mechanical ramp and door retention on vehicles and machinery
Typical Applications:
Used on truck and trailer ramps, tipper bodies and plant transport to retain tailgates and loading ramps during travel. Also specified on skips, compactors, cardboard balers, agricultural machinery, incinerators and cattle ramps where a compact, positive fastener is needed to secure a hinged leaf, door or access panel.
Also known as:
Ramp latch; Ramp catch; Drop ramp fastener; Door catch; Body latch; Retaining catch; Latch assembly
Product Specifications
| L&S Part No. | 800 1148 |
|---|---|
| Unit of Sale | 1 |
