Description
Overview:

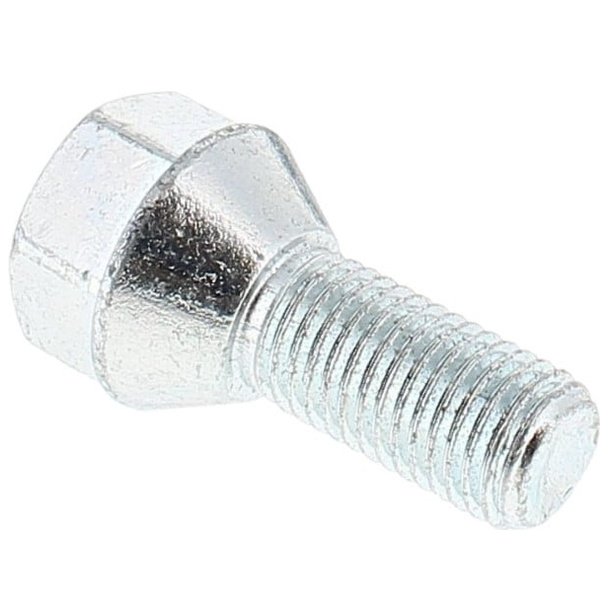

The M12x1.5 Conical Wheel Bolt is a high‐tensile fastener designed to secure wheels to vehicle and machinery hubs. Made from grade 8.8 steel, it provides dependable clamp force and long service life under typical road and site conditions. It features a conical (tapered) seat to centre the wheel correctly on compatible steel or alloy rims. The 23 mm (0.91 in) threaded length offers controlled engagement where a shorter bolt is required to avoid internal interference. Suitable for many cars, vans, trailers, and light plant or garden machinery that specify M12 x 1.5 conical seat bolts. Supplied individually (each) so you can replace a single damaged fixing or purchase the exact quantity needed. MPN: 761 433.
Key Features:
- Thread size M12 x 1.5 with 23 mm (0.91 in) threaded length for precise hub engagement
- Conical seat for secure location and even load distribution on compatible wheels
- Grade 8.8 high‐tensile steel for reliable strength and fatigue resistance
- Precision‐rolled threads for consistent fit and smooth tightening
- Installs with standard hand tools; check and torque to the vehicle/machine specification
- Sold individually (each) to match the exact quantity required
- Suitable for steel or alloy wheels that use conical seats
- Ideal for replacing worn, stretched, or missing wheel bolts
- Helps maintain wheel security and alignment when correctly installed
- MPN: 761 433 for straightforward identification
Typical Applications:
Replacing damaged or corroded wheel bolts during wheel, tyre, brake, or hub service; fitting wheels that use a conical seat; maintaining fleet vehicles, trailers, and site machinery that specify M12 x 1.5 conical bolts with a 23 mm (0.91 in) thread length. Common across passenger vehicles, light commercials, towing equipment, and selected compact machinery where this size and seat type are required.
Also known as:
Lug bolt, wheel fixing bolt, conical seat bolt, taper wheel bolt, hub bolt, wheel fastener, tyre bolt (tire bolt), wheel clamp bolt. Terms vary by manufacturer and region; always match thread size, seat type, and thread length to the original specification.
Product Specifications
| L&S Part No. | 761 433 |
|---|---|
| Unit of Sale | 1 |
