Description
Overview:

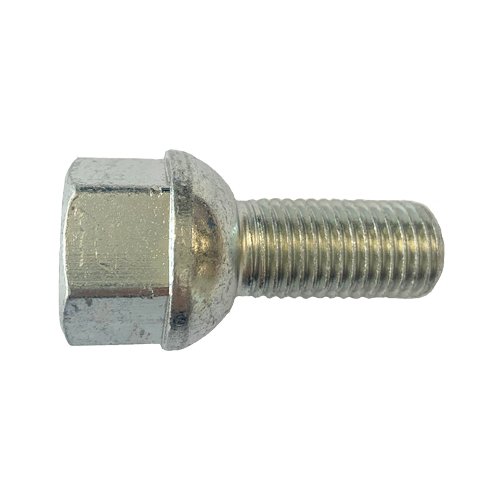

Spherical seat wheel bolt for securing trailer and transporter wheels to compatible hubs. Manufactured to material grade 8.8 for general-duty use. The bolt uses an M12 x 1.5 thread with a 23 mm (0.91 in) threaded section and 44 mm (1.73 in) overall length. Designed for wheels that require a spherical (radius) seat; ensure the wheel seating matches the bolt profile. Fits hubs and drums with M12 x 1.5 threaded holes commonly found on trailers, caravans and light plant/transport equipment.
Specification:
- Thread size: M12 (12 mm / 0.47 in)
- Thread pitch: 1.5 mm (0.059 in)
- Thread length: 23 mm (0.91 in)
- Overall length: 44 mm (1.73 in)
- Seat type: Spherical (radius)
- Material grade: 8.8
- Pack options: Bulk supply, minimum order 10
- Display pack: 4 per pack (MP4194)
- Maypole part number: MP4194B
Typical Applications:
Used to fasten road wheels on trailers, caravans and plant transporters where an M12 x 1.5 threaded hub and spherical-seat wheel fixing are specified.
Product Specifications
| L&S Part No. | 763 027 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
