Description
Overview:

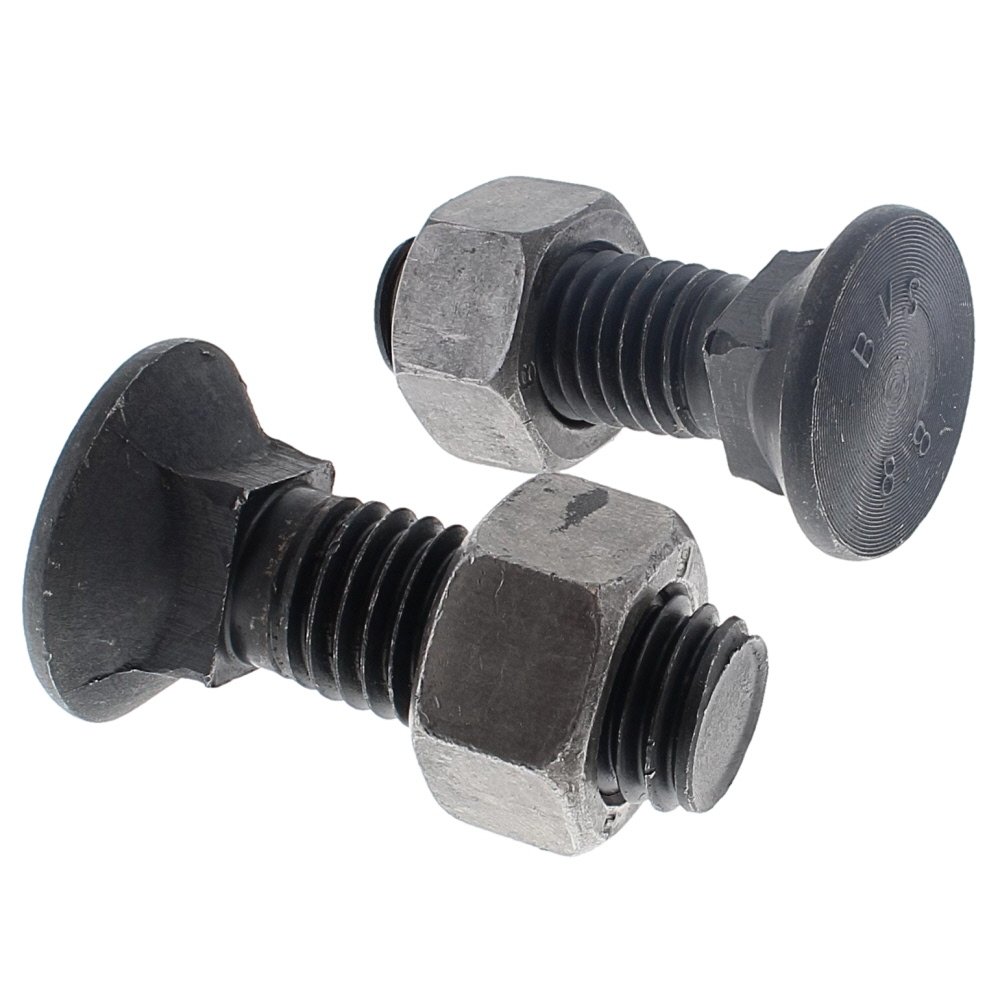

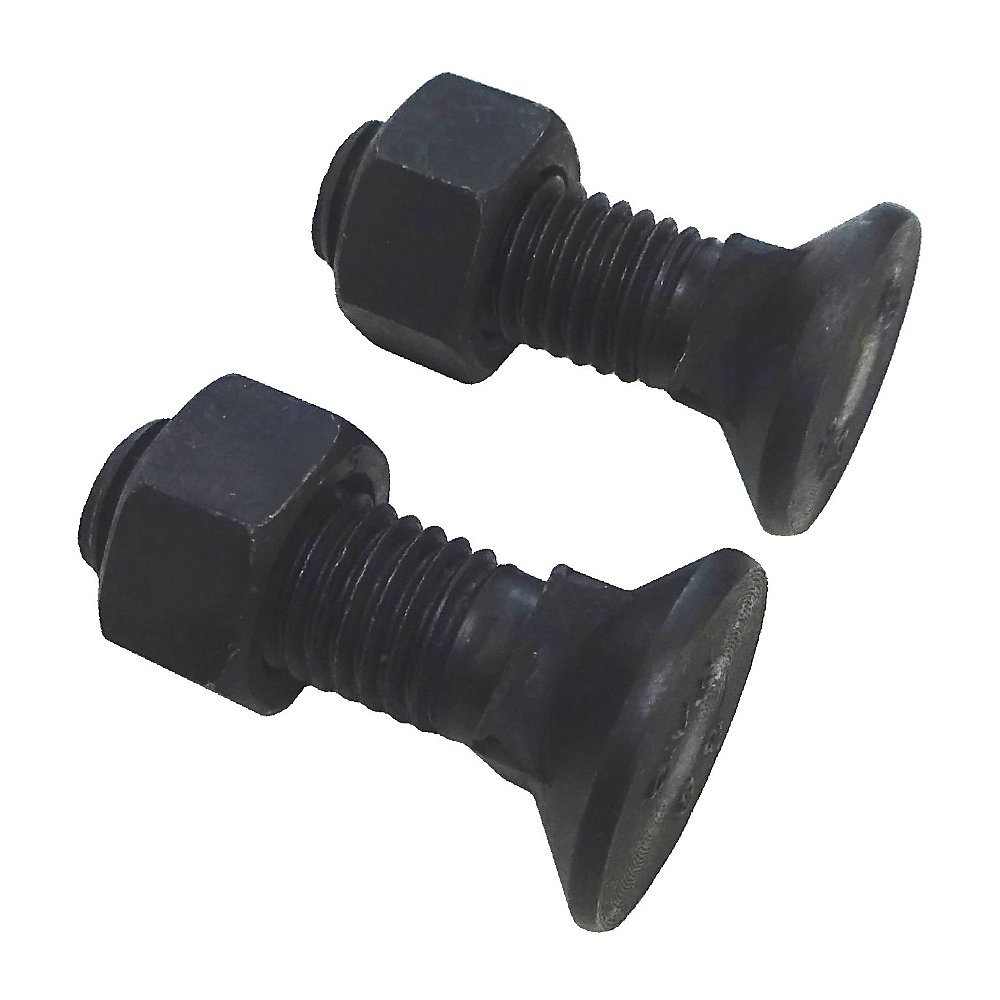

The M14 Plough Bolt Kit (2 Bolts / Nuts) is a durable fixing set for securing plough blades and other wear parts on agricultural and construction machinery. Each bolt is manufactured from strong steel for dependable clamping under vibration and impact. The countersunk head sits flush with the blade, while the square neck locks into the mating hole to prevent the bolt from turning during tightening. Key dimensions: overall length 44mm (1.73 inches), thread length 33mm (1.30 inches), and square neck width 15mm (0.59 inches). Supplied as a pair with matching nuts, the kit provides a straightforward replacement for worn or missing fasteners on ploughs and compatible equipment using an M14 (14mm) metric thread. Designed for tough outdoor use and frequent maintenance cycles.
Key Features:
- Robust steel construction for strength and long service life
- M14 metric thread for compatibility with common agricultural fixings
- Overall length 44mm (1.73 inches) and 33mm (1.30 inches) threaded section for secure clamping
- Square neck (15mm / 0.59 inches) prevents rotation for easier tightening
- Countersunk head sits flush with blade or wear plate to reduce snagging
- Supplied as a matched pair of bolts and nuts for a complete repair
- Suitable for plough blades, shares, wear plates, and similar fixings on machinery
- Simple to fit with standard tools; no special fittings required
- Reliable under vibration and shock loads typical in field and site conditions
- Practical choice for routine maintenance and quick replacements
Typical Applications:
Used to fasten plough blades and shares to mouldboards, secure wear plates and scrapers on agricultural implements, and fix blade-style components on light construction equipment. Ideal where a low-profile, flush head and positive anti-rotation feature are required, such as soil-engaging parts and ground-contact edges that see repeated impact and abrasion.
Also known as:
Countersunk square-neck bolt, mouldboard bolt, share bolt, blade fixing bolt, wear plate bolt, M14 countersunk bolt, M14 square-neck fastener, agricultural blade bolt, ground-engaging tool bolt.
Alternate Part Numbers:
800 759, 800759
Product Specifications
| L&S Part No. | 800 759 |
|---|---|
| Unit of Sale | 1 |
