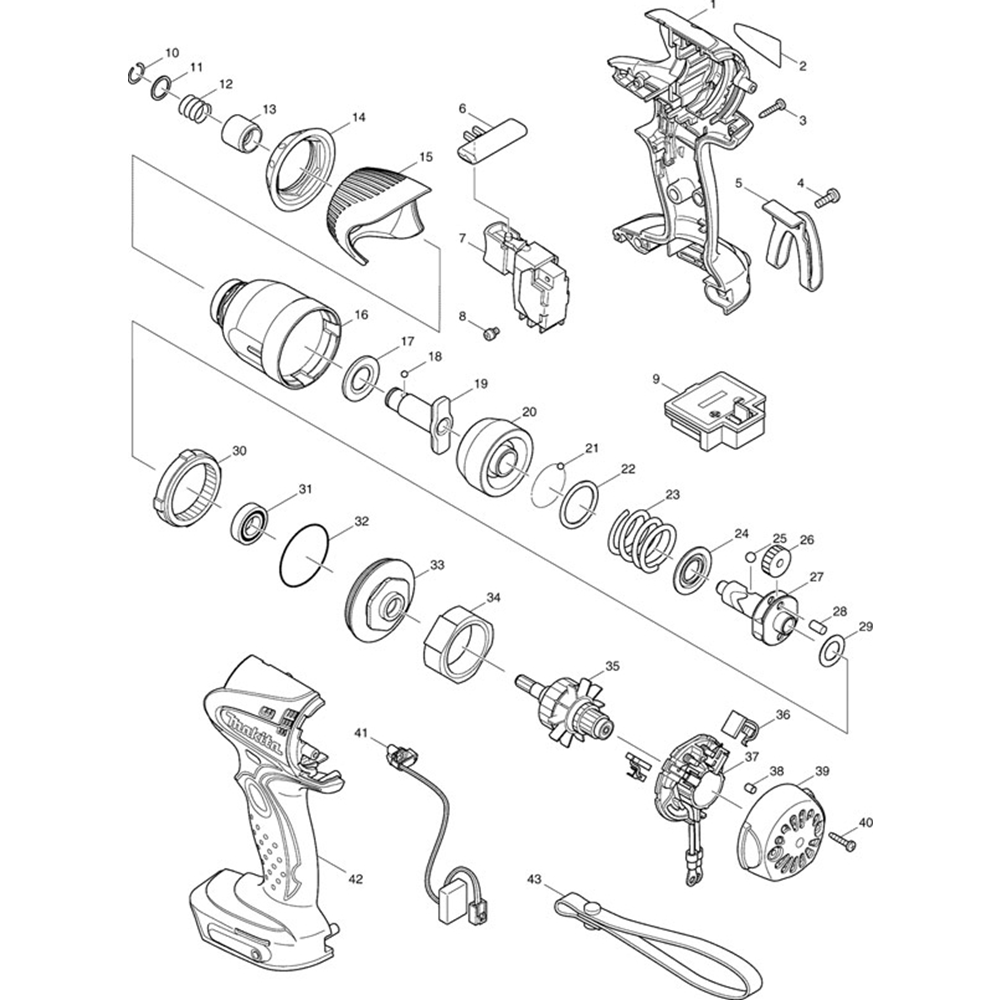

Main Assembly for Makita BTD130F Impact Drivers

Ref. Img. Part No. Details
  2 Name Plate Btd130f Btd130f 861532-0
Name Plate Btd130f Btd130f
Out of Stock
£0.49 £0.41

  4 Special Pan Hd Screw M4X12 251314-2
Special Pan Hd Screw M4X12
In stock
£0.65 £0.54

  5 Belt Hook Bdf440 Bdf441 Bdt140 Bdf452 324705-1
Belt Hook Bdf440 Bdf441 Bdt140 Bdf452
Out of Stock
£1.92 £1.60

  6 F/R Change Lever Btd043/063/1 419041-9
F/R Change Lever Btd043/063/1
In stock
£0.97 £0.81

  7 Switch Btd130f Btd140 Btw152 Btw251 Btw251 650564-0
Switch Btd130f Btd140 Btw152 Btw251 Btw251
Out of Stock
£30.55 £25.46

  8 Ring Spring 11 Btd/Td126/Tl064 231951-8
Ring Spring 11 Btd/Td126/Tl064
In stock
£0.65 £0.54

  8 Panhd Screw M3.5x5 652045-0
Panhd Screw M3.5x5
Out of Stock
£0.48 £0.40

  9 Terminal Btw/Btd/Bls/Bhp Mode 643983-7
Terminal Btw/Btd/Bls/Bhp Mode
Out of Stock
£3.26 £2.72

  9 Narrow Washer 267085-1
Narrow Washer
In stock
£0.82 £0.68

  9 *TERMINAL 14.4v Models Only 643811-6
*TERMINAL 14.4v Models Only
Out of Stock
£3.31 £2.76

  10 Compression Spring 13 Td126 233005-7
Compression Spring 13 Td126
In stock
£0.48 £0.40

  13 Sleeve 6916fd-6980fd/Td126 324420-7
Sleeve 6916fd-6980fd/Td126
In stock
£2.04 £1.70

  14 Bumper Btd130f/btp130/140* 424197-5
Bumper Btd130f/btp130/140*
Out of Stock
£2.14 £1.78

  16 Hammer Case Comp Btd130f/132d Btd145 154590-6
Hammer Case Comp Btd130f/132d Btd145
Out of Stock
£18.05 £15.04

  17 Nylon Washer 261108-7
Nylon Washer
Out of Stock
£0.79 £0.66

  19 Anvil M 6935/80fd/btd132/144 Btd145 324432-0
Anvil M 6935/80fd/btd132/144 Btd145
Out of Stock
£22.76 £18.97

  20 Hammer Btd130f/btd132 Btd133 Btd140 324583-9
Hammer Btd130f/btd132 Btd133 Btd140
Out of Stock
£13.37 £11.14

  21 Steel Ball 3.5 Bpj/Dtd154/Tl06 216001-0
Steel Ball 3.5 Bpj/Dtd154/Tl06
In stock
£0.48 £0.40

  22 Flat Washer 24 Hr1840/Hr1841F 267175-0
Flat Washer 24 Hr1840/Hr1841F
Out of Stock
£0.79 £0.66

  23 Compression Spring 24 Btd134/ 233430-2
Compression Spring 24 Btd134/
In stock
£2.05 £1.71

  24 Cup Washer 14 Btp130/Td126 267766-7
Cup Washer 14 Btp130/Td126
Out of Stock
£0.79 £0.66

  25 Steel Ball 5.6/Dtw285 216011-7
Steel Ball 5.6/Dtw285
In stock
£0.48 £0.40

  26 Spur Gear 12 6503dw/6916d/6990 226336-1
Spur Gear 12 6503dw/6916d/6990
Out of Stock
£4.56 £3.80

  27 Spindle Btd130f/btd132/144 Btd145 324552-0
Spindle Btd130f/btd132/144 Btd145
Out of Stock
£15.16 £12.63

  28 Pin 5 Btd134lf10/Td126 256253-1
Pin 5 Btd134lf10/Td126
Out of Stock
£0.62 £0.52

  29 Flat Washer 12 Td126/6916-691 267212-0
Flat Washer 12 Td126/6916-691
Out of Stock
£0.48 £0.40

  30 Internal Gear 51 227150-8
Internal Gear 51
Out of Stock
£3.17 £2.64

  31 Carbon Brush Cb-440 Btd043/06 195021-6
Carbon Brush Cb-440 Btd043/06
In stock
£5.45 £4.54

  31 Ball Bearing 6901llb 211140-1
Ball Bearing 6901llb
Out of Stock
£5.51 £4.59

  32 O Ring 40 213507-9
O Ring 40
Out of Stock
£3.12 £2.60

  33 Bearing Box Co 154769-9
Bearing Box Co
Out of Stock
£12.13 £10.11

  34 Yoke Unit Btd043/063/103 638396-5
Yoke Unit Btd043/063/103
In stock
£14.41 £12.01

  35 Armature Btd130f/134 Btw152 619244-7
Armature Btd130f/134 Btw152
Out of Stock
£21.37 £17.81

  37 Brush Holder Comp 638895-7
Brush Holder Comp
In stock
£4.18 £3.48

  37 Brush Holder Comp Btd130f Btw152 638387-6
Brush Holder Comp Btd130f Btw152
Out of Stock
£3.72 £3.10

  38 Rubber Pin 4 Btd043/063/103 263032-0
Rubber Pin 4 Btd043/063/103
In stock
£0.48 £0.40

  39 Rear Cover 418981-8
Rear Cover
In stock
£6.73 £5.61

  39 Rear Cover Btd130f Btd130f 418982-6
Rear Cover Btd130f Btd130f
Out of Stock
£6.34 £5.28

  40 Tapping Screw Bind 3 X 16 L14 266130-9
Tapping Screw Bind 3 X 16 L14
In stock
£0.48 £0.40

  41 Light Circuit 631631-0
Light Circuit
Out of Stock
£15.85 £13.21

  42 Housing Set Btd130f Btd130f 188257-4
Housing Set Btd130f Btd130f
Out of Stock
£41.34 £34.45

  42 Housing Set Btd130f 187471-9
Housing Set Btd130f
Out of Stock
£33.35 £27.79


Description

Main Assembly for Makita BTD130F Impact Drivers.
Genuine and Non-Genuine Parts Available.
