Overview:

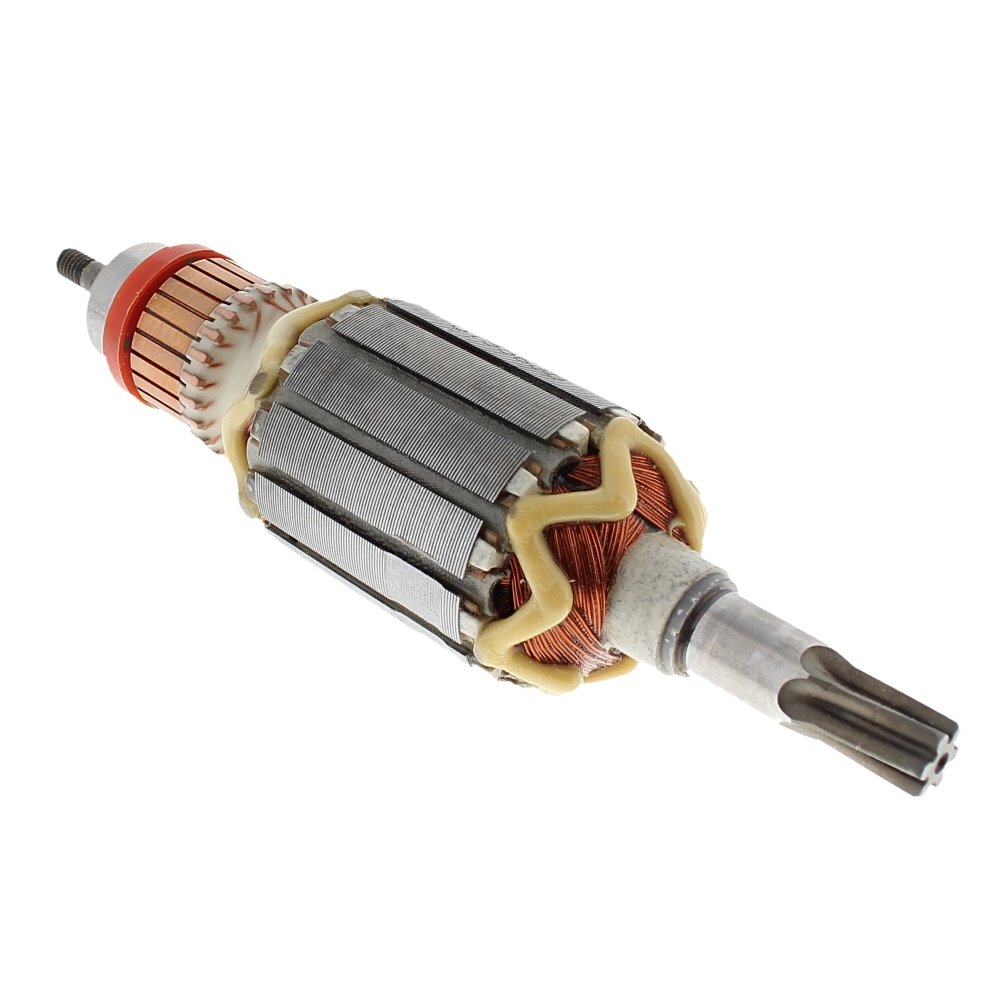

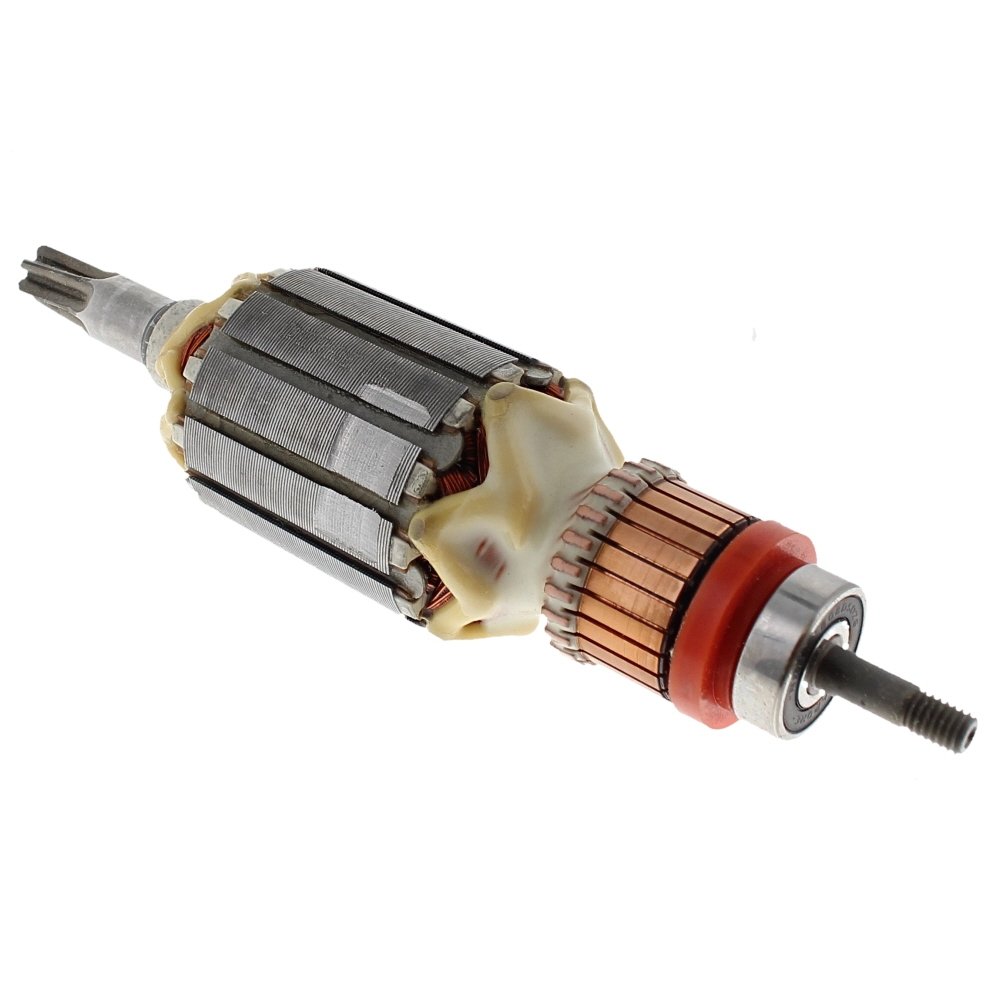

The Armature Assembly 240v for Makita HM0860C is a genuine Makita replacement (MPN 513563-2) designed to restore the driving power of your demolition hammer. It is the rotating core of the motor, built with copper windings on a laminated steel core and a precision-machined commutator mounted on a steel shaft. This assembly converts electrical energy into reliable rotational force to power the hammering mechanism of the HM0860C. Made for 240 V UK mains tools, it offers a direct, like-for-like fit that helps maintain the tool's original performance and service life. Built to cope with dust, vibration and prolonged use, it is a practical fix when the original armature is worn, damaged or has suffered electrical failure.
Key Features:
- Genuine Makita OEM part for assured compatibility and fit with HM0860C
- 240 V specification for UK mains-powered tools
- Copper windings and laminated steel core for dependable performance
- Precision-machined commutator helps reduce sparking and electrical noise
- Robust construction suited to heavy-duty demolition work
- Direct replacement that uses the original housings and fasteners
- Helps restore impact performance, speed stability and efficiency
- Designed to withstand dust and vibration in site conditions
- Supports minimal downtime with straightforward installation
- Reliable choice for trade, hire fleets and DIY maintenance
Typical Applications:
Used to replace a failed or worn motor armature in the Makita HM0860C demolition hammer. Common when symptoms include excessive sparking, burning smell, reduced power, overheating or tripped breakers. Suitable for workshop repairs, site maintenance, and hire fleet servicing to keep tools operating safely and efficiently during concrete breaking, masonry removal and general demolition tasks.
Also known as:
Electric motor armature, rotor assembly, motor rotor, commutator rotor, hammer motor armature, replacement rotor, electric motor core, drive armature for demolition hammer.
Fits Models:
HM0860C
Alternate Part Numbers:
513563 2, 5135632
Product Specifications
| L&S Part No. | 513563-2 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Makita |
| OEM No. | 513563-2 |
| Unit of Sale | 1 |
| Applications | HM0860C |
| Machine Type | Power Demolition Tools |
| Fits Brands | Makita |
| Fits Models | HM0860C |
