Description
Overview:

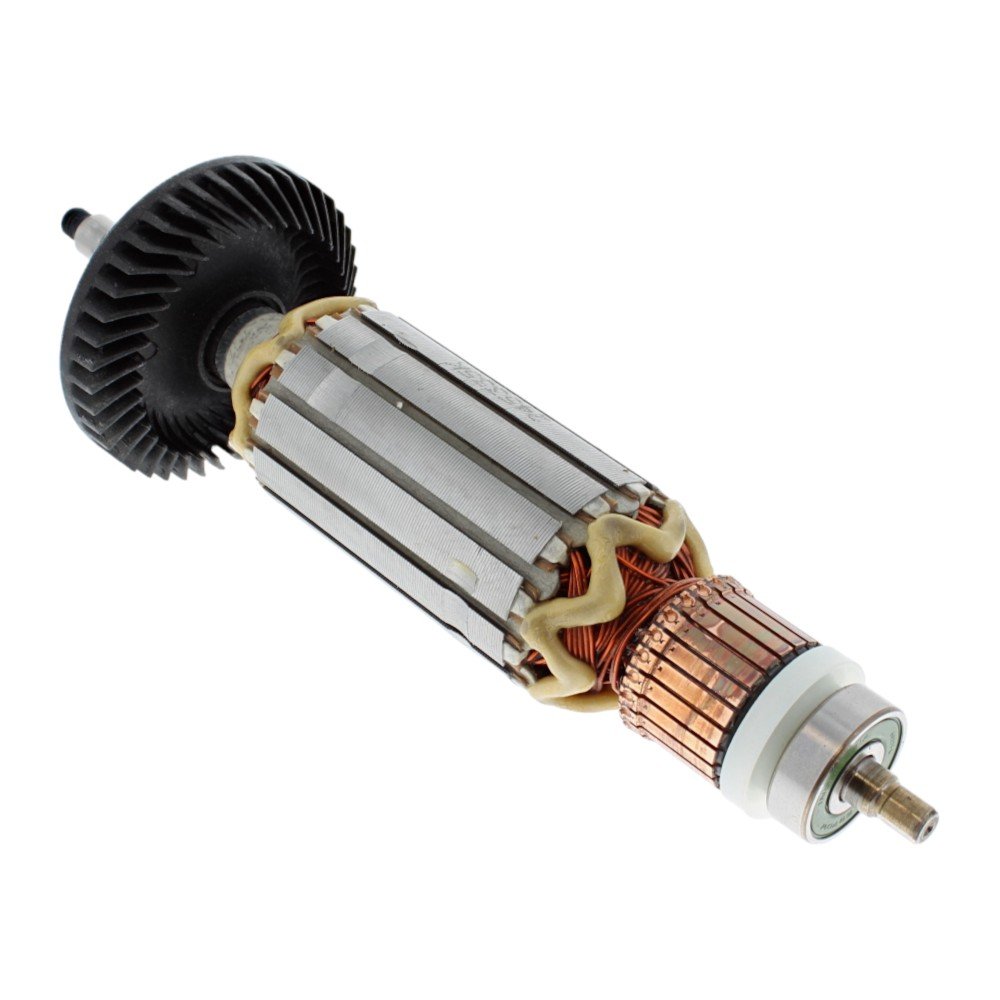

This Genuine Makita Armature Assembly is a 110 V rotor unit for selected Makita angle grinders, including the 9564CV and 9565CV. It is the rotating core of the motor that drives the disc, built with copper windings and a laminated steel core for efficient magnetic performance, and a precision-machined commutator for stable current transfer. Designed specifically for 110 V site tools, it restores lost power and smooth running when the original armature is worn or damaged. The assembly is factory-balanced to minimise vibration and help protect gears and bearings. Suitable for professional and DIY use, it is an exact-fit replacement to keep your grinder performing reliably under regular cutting and grinding workloads.
Key Features:
- Genuine Makita part for assured compatibility and performance (MPN: 515335-1)
- 110 V specification for UK site transformers; not suitable for 230/240 V tools
- Precision-balanced rotor for reduced vibration and smoother operation
- Copper windings and laminated steel core for efficient power delivery and heat control
- Accurate commutator geometry for consistent brush contact and fewer sparks
- Built to withstand heavy, frequent use in demanding environments
- Direct replacement to restore torque, speed stability, and start-up reliability
- Engineered for a snug fit to maintain correct air gap and alignment within the motor housing
- Supports longer tool life when paired with good brushes and clean ventilation paths
Typical Applications:
Ideal for rebuilding or servicing 110 V Makita angle grinders used for metal fabrication, cutting bolts and rebar, preparing welds, grinding masonry, shaping stone, surface preparation, and site tasks where a compact 115-125 mm grinder is needed. Suitable for workshop maintenance schedules and on-site repairs to keep tools safe, powerful, and compliant with 110 V site standards.
Also known as:
Armature rotor, electric motor armature, motor rotor, replacement rotor, rotor core, commutator rotor, grinder motor core.
Fits Models:
9564CV, 9564PCV, 9565CV, 9565PCV
Alternate Part Numbers:
5153351
