Overview:

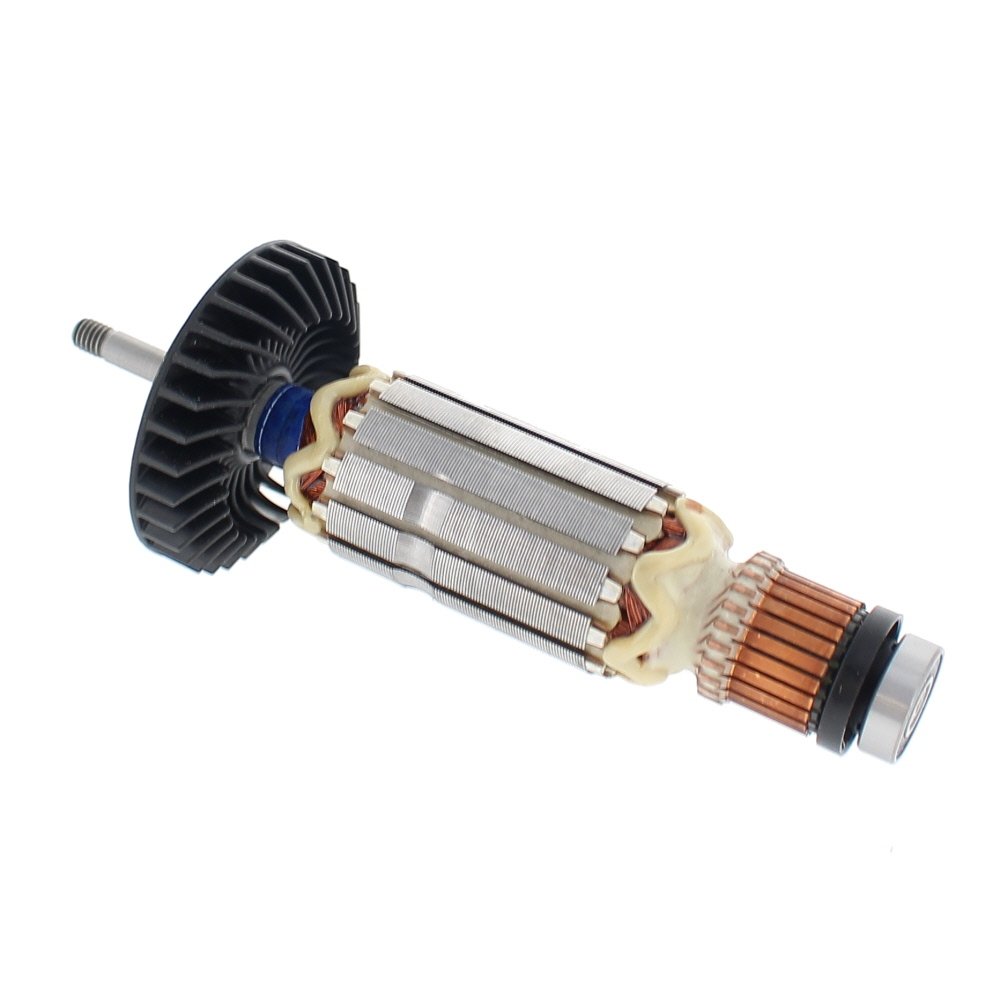

This Genuine Makita Armature Assembly (515619-7) is a 240V motor rotor for compact Makita angle grinders, including the 9553NB and 9554NB. It is built around a laminated steel core with tightly wound copper coils and a precision-machined commutator to deliver smooth, efficient power transfer to the gearbox. A moulded black cooling fan is integrated on the shaft to move air through the motor housing and help manage heat during continuous use. The assembly restores performance where the original armature has worn, burned, or become noisy. Manufactured to Makita's specifications for fit and balance, it is designed to handle the rigours of site, workshop, and DIY work. Key dimensions: overall length 152 mm, body diameter 31.5 mm, fan (black wheel) diameter 56 mm, threaded end diameter 5.9 mm.
Key Features:
- Genuine Makita part for assured compatibility and build quality
- Designed for 240V grinders used on UK mains supply
- Precise fit for listed models to help reduce vibration and noise
- Copper windings and steel laminations for reliable power and durability
- Integrated cooling fan (56 mm) to aid airflow and thermal control
- Smooth commutation for consistent speed and reduced sparking
- Dimensions supplied (152 mm length, 31.5 mm body, 5.9 mm threaded end) to support accurate identification
- Helps restore torque, speed stability, and overall grinder efficiency
- Suitable for routine maintenance or full motor rebuilds
- Straightforward like-for-like replacement using standard workshop tools
Typical Applications:
Used to replace a failed or worn rotor in Makita angle grinders that cut, grind, sand, or deburr metals, masonry, tiles, and concrete. Suitable for trades such as fabrication, construction, fit-out, and maintenance, as well as tool hire servicing and DIY repairs. Ideal when encountering symptoms like heavy sparking, loss of power, overheating, or a seized/rough-running motor.
Also known as:
Grinder armature, motor rotor, electric rotor, armature rotor, replacement rotor assembly, 240V rotor for angle grinder.
Fits Models:
9553NB, 9554NB, 9555NB
Alternate Part Numbers:
515619 7, 5156197
