Description
Overview:

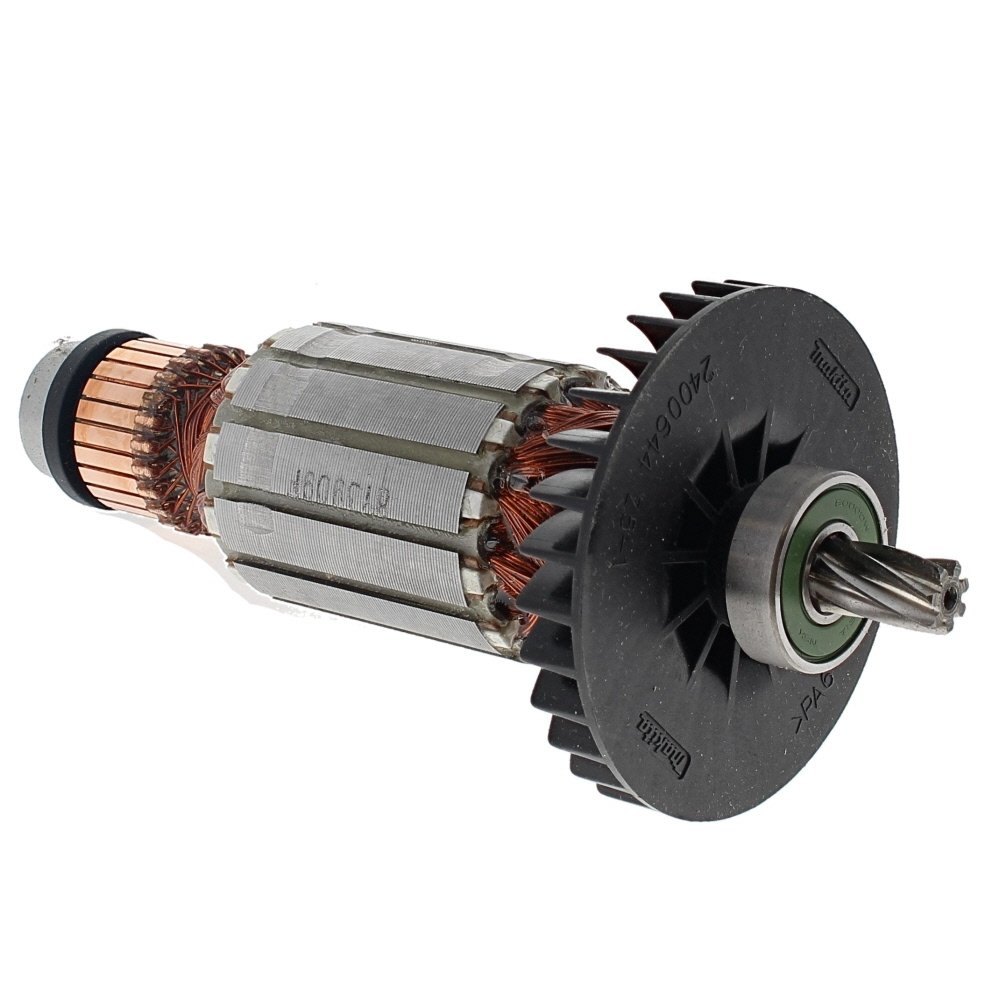

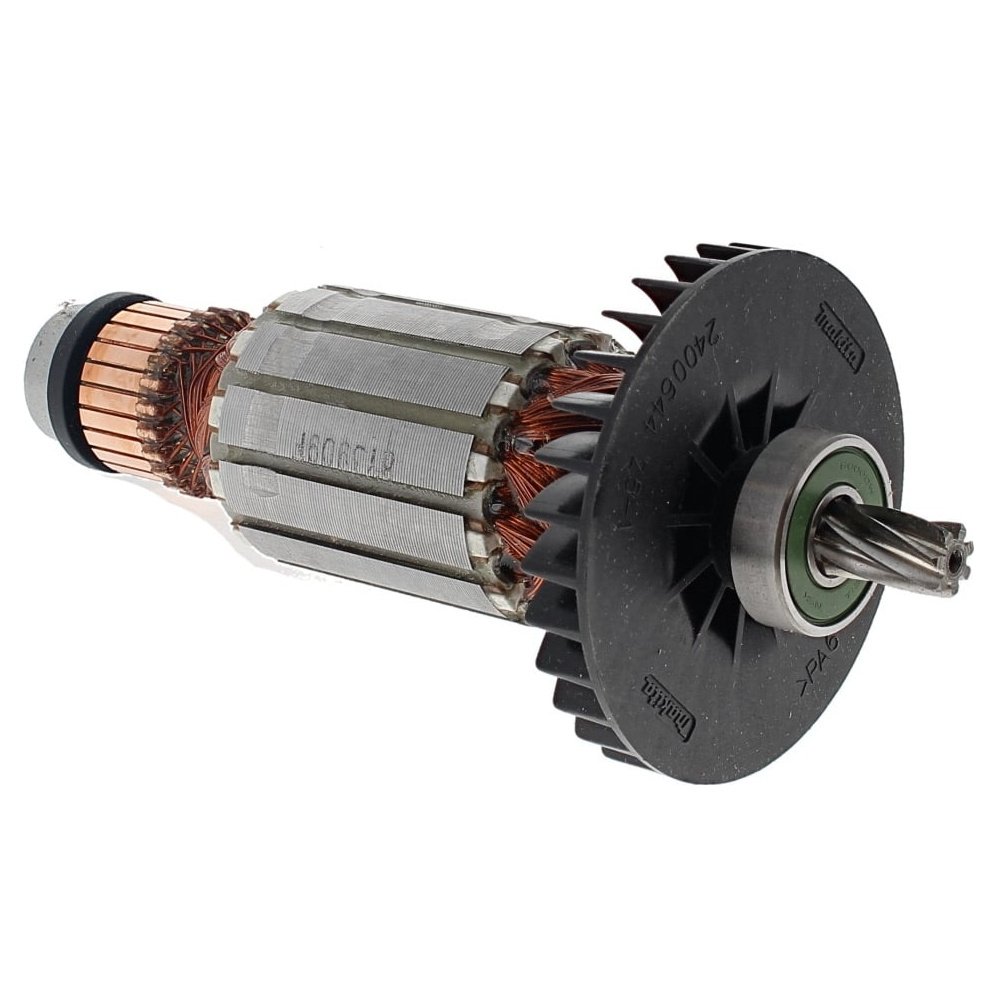

The Armature Assembly 240v for Makita HS7601 Circular Saw (MPN 513909-2) is a genuine Makita motor rotor designed to restore cutting performance and reliability. Built with tightly wound copper windings on a laminated steel core, a precision-machined commutator, and an integrated cooling fan, it delivers smooth power under load. The shaft carries a correctly profiled pinion to drive the HS7601 gear train, ensuring proper meshing and long gear life. Made for 240 V mains tools commonly used in the UK, this armature is engineered to match the original specification for fit and balance. It is the key rotating component of the motor, replacing worn, burnt, or damaged rotors to bring your HS7601 back to consistent speed, torque, and clean cutting accuracy for site and workshop use.
Key Features:
- Genuine Makita OEM armature (MPN 513909-2) for assured compatibility with HS7601
- 240 V specification for UK and EU mains-powered circular saws
- Factory balanced to reduce vibration and improve cut quality
- High-conductivity copper windings with durable insulation for long service life
- Precision commutator promotes stable brush contact and reduced sparking
- Integrated cooling fan helps manage motor temperature during continuous use
- Correctly machined pinion for smooth engagement with the HS7601 gearbox
- Direct-fit replacement with no modifications required
- Works with original Makita field coil and carbon brushes (check wear when replacing)
- Restores lost power, speed stability, and efficiency after armature failure
Typical Applications:
Ideal for restoring performance in a Makita HS7601 used for first and second fix carpentry, joinery, framing, and cutting sheet materials. Replace the armature when symptoms such as excessive arcing, burning smell, overheating, rough running, or poor torque appear. Suitable for trade users, facilities teams, and DIY users who need dependable daily cutting performance.
Also known as:
Rotor assembly, motor rotor, electric motor armature, commutator rotor, circular saw rotor, drive armature, replacement motor core for HS7601, rotor and pinion assembly.
Fits Models:
HS7601
Alternate Part Numbers:
5139092
Product Specifications
| L&S Part No. | 513909-2 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Makita |
| OEM No. | 513909-2 |
| Unit of Sale | 1 |
| Applications | HS7601 |
| Machine Type | Circular Saw |
| Fits Brands | Makita |
| Fits Models | HS7601 |
