Description
Overview:

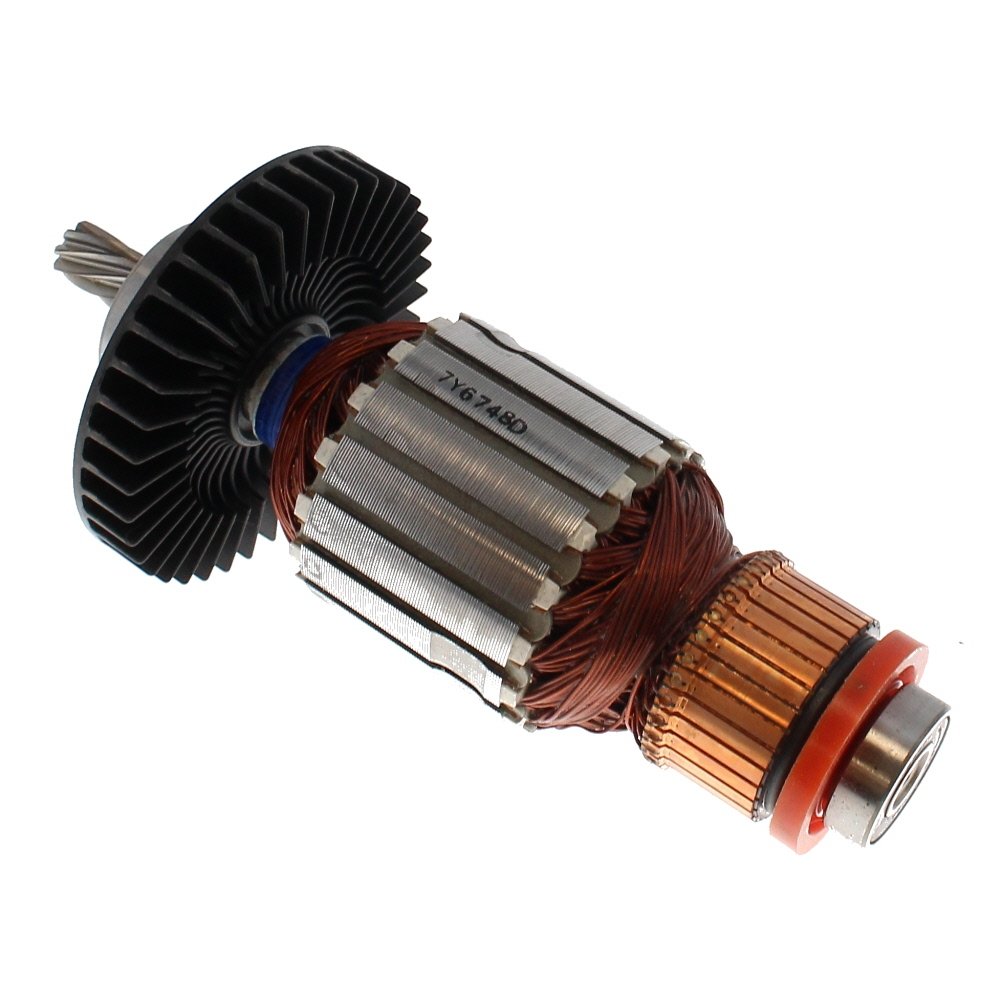

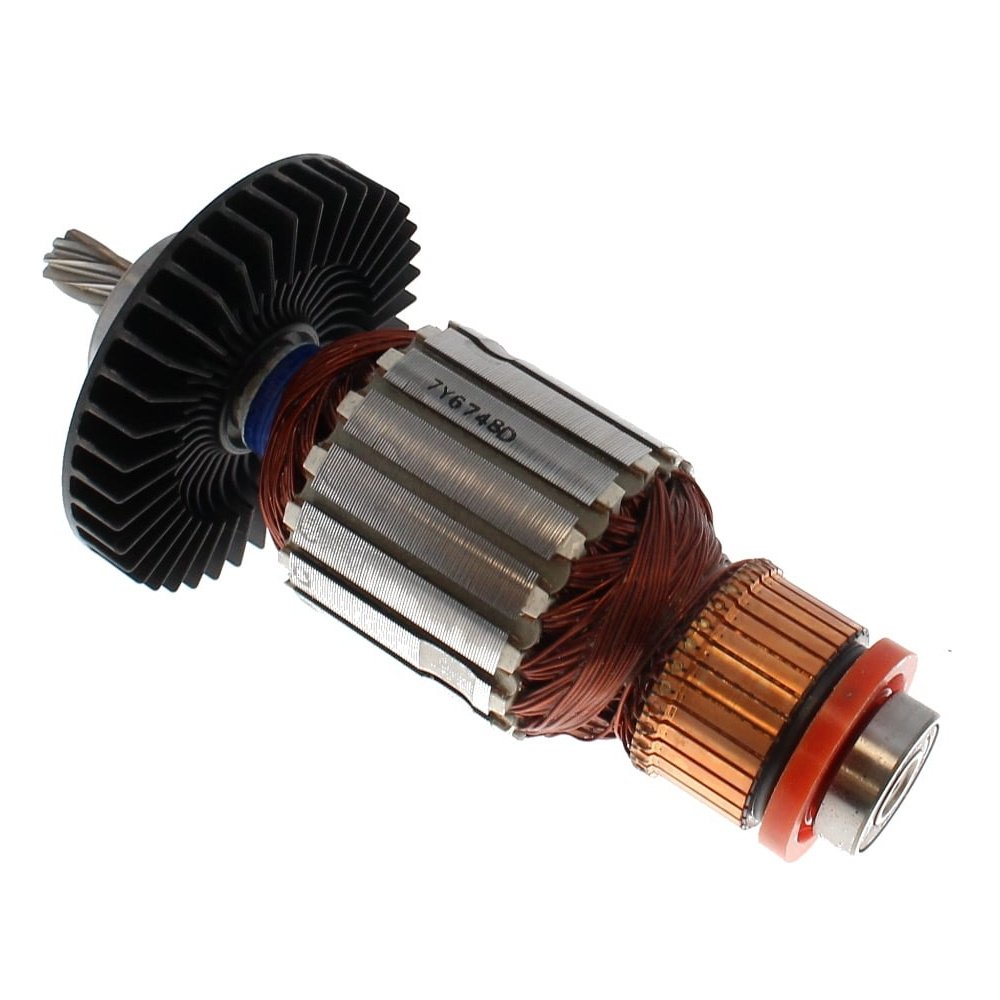

The Armature Assembly 240V for Makita LF1000 Flip Over Saw (part no. 516748-9) is a genuine Makita motor rotor unit designed to restore smooth, reliable drive to your saw. It sits at the heart of the electric motor, using copper windings on a laminated steel core with a precision-machined shaft and commutator to deliver efficient power transfer. Built for 240V operation, it suits the Makita LF1000 and LF1000 260mm flip over saws used in workshops and on construction sites. Durable materials and careful balancing help reduce vibration and maintain cutting accuracy. This assembly is a direct-fit replacement for worn or damaged armatures, helping to recover torque, speed stability, and service life without modifying the tool.
Key Features:
- Genuine Makita replacement part for assured fit and performance (516748-9)
- 240V specification for UK site and workshop use
- Direct fit for Makita LF1000 variants, maintaining original motor geometry
- Robust construction with copper windings and laminated steel core for long service life
- Factory-balanced rotor helps reduce vibration and motor noise
- Easy to install with accessible design to minimise downtime
- Supports consistent cutting accuracy and efficient power delivery
- Shaft length: 170 mm (6.7 in)
- Front bearing diameter: 35 mm (1.4 in)
- Back bearing diameter: 26 mm (1.0 in)
- Rotor diameter: 80 mm (3.1 in)
- Coil diameter: 54 mm (2.1 in)
- End of drive to front bearing: 140 mm (5.5 in)
Typical Applications:
Used to replace a failed or worn armature in the Makita LF1000, restoring motor output and reliability. Ideal when symptoms include excessive sparking, burnt windings, loss of power, overheating, or noisy operation. Suited to site carpentry, joinery, and workshop tasks where the flip over saw handles ripping, crosscutting, mitring, and general timber preparation.
Also known as:
Motor armature, commutator rotor, armature rotor pack, motor core stack, drive armature unit, commutator assembly, replacement motor rotor for flip over saws, electric motor rotor cartridge.
Fits Models:
LF1000, LF1000 260mm
Alternate Part Numbers:
5167489
Product Specifications
| L&S Part No. | 516748-9 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Makita |
| OEM No. | 516748-9 |
| Unit of Sale | 1 |
| Machine Type | Table Saws |
| Fits Brands | Makita |
| Key Features | - Genuine Makita replacement part for LF1000 saws - 240V specification for UK site and workshop use - Copper windings and laminated steel core for durability - Factory-balanced rotor reduces vibration and noise - Shaft length: 170 mm, rotor diameter: 80 mm |
| Fits Models | LF1000 260mm |
