Description
Overview:

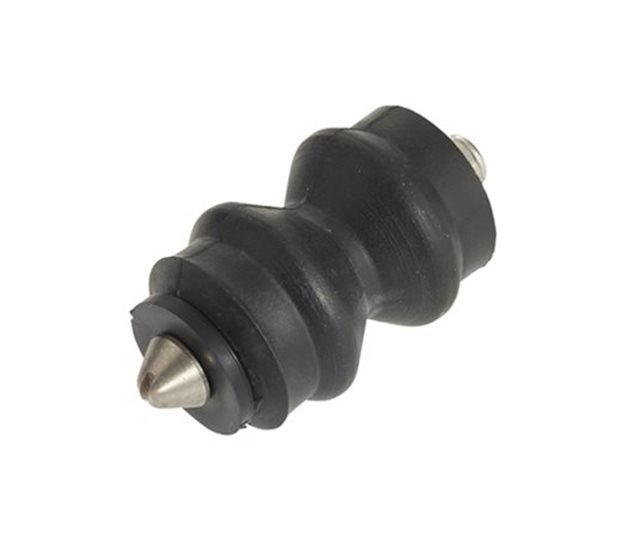

Heavy Duty Male Door Retainer, 12.5mm Pin, 304 Stainless Steel (MPN 800 1044) is a robust hold‐open component for doors on commercial vehicles and site equipment. The unit features a spring‐loaded Ø12.5 mm (0.49 in) stainless steel pin with nylon impact washers to absorb shocks and reduce rattle when the door is engaged. Constructed from 304 stainless steel with rubber components and supplied in a black finish, it is suited to demanding use where corrosion resistance and durability are required. The compact form factor helps in tight mounting spaces: overall body length is 48.5 mm (1.91 in), flange/washer diameter is Ø34 mm (1.34 in), and projection/depth is 30 mm (1.18 in). Typically paired with a corresponding female cup or socket (not included), this male retainer provides a positive, repeatable hold for doors on cabs, truck bodies, service cabinets and modular or welfare buildings used in plant hire and construction fleets.
Key Features:
- Male door retainer with heavy duty spring mechanism
- Ø12.5 mm (0.49 in) stainless steel pin for positive engagement
- Nylon impact washers to cushion contact and minimise vibration
- Material: 304 stainless steel with rubber components
- Finish: black for a discrete, professional appearance
- Length: 48.5 mm (1.91 in) overall
- Flange/washer diameter: Ø34 mm (1.34 in)
- Projection/depth when fitted: 30 mm (1.18 in)
- Corrosion resistant construction suitable for exterior use
- Designed to mate with a compatible female door retainer (sold separately)
Typical Applications:
Used on vehicle cabs, truck and trailer body doors, plant and service cabinets, and modular or site welfare buildings to hold doors open during loading, inspection or servicing. Common on box bodies, dropsides, tipper rear doors, tool lockers and site cabins where a secure, repeatable door hold‐back is required.
Also known as:
Door hold‐back
Door stay
Male door holder
Door peg
Spring‐loaded peg
Body side pin
Retaining pin assembly
Product Specifications
| L&S Part No. | 800 1044 |
|---|---|
| Unit of Sale | 1 |
