Description
Overview:

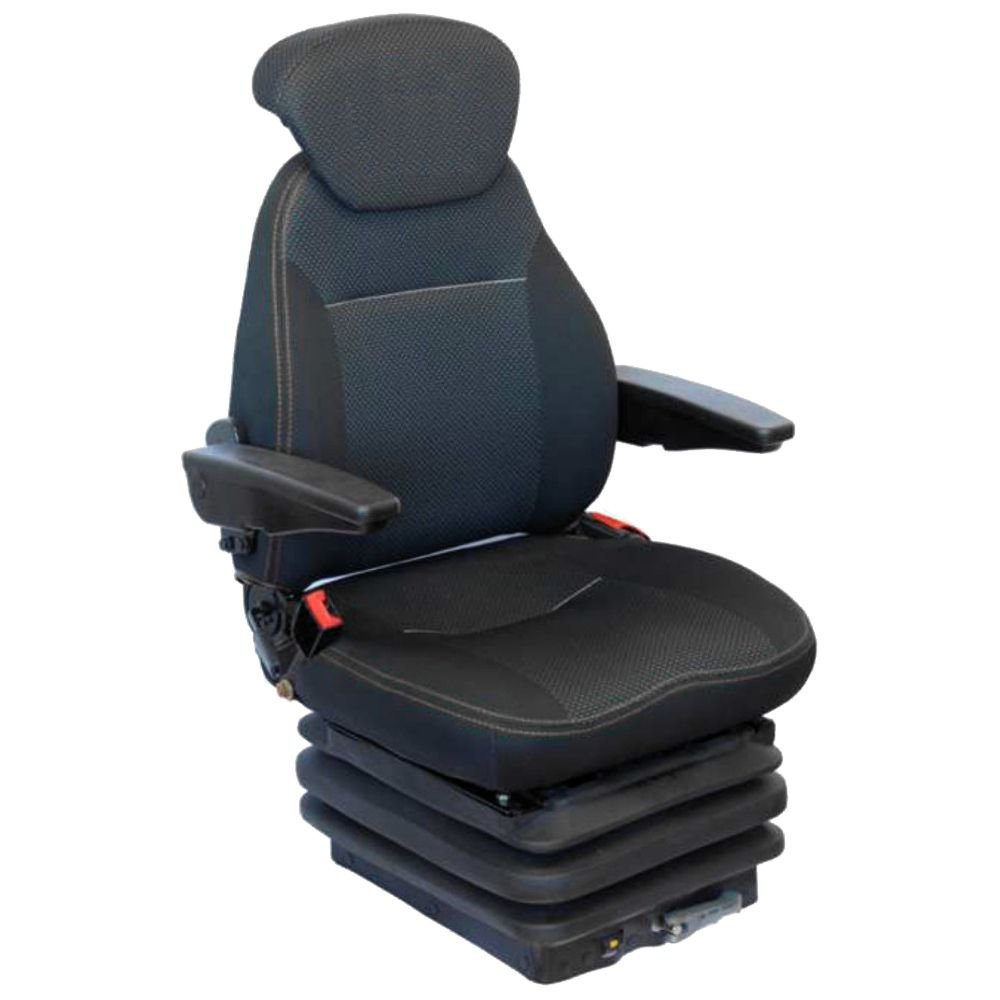

The Mechanical Suspension Adjustable Seat is a robust replacement operator seat for mini excavators, telehandlers, and backhoe loaders. It is trimmed in durable fabric over a sturdy frame to withstand daily site use, while a mechanical suspension helps absorb shocks and vibration on rough ground. Slide rails and a three-stage height setting make it easy to achieve a correct driving position, and the suspension can be tuned to the operator's weight for consistent support. The backrest angle and lumbar support are adjustable to promote better posture during long shifts. A right‐hand side provision is included for a seat belt (seat belt not supplied). Designed for compact plant cabins, it offers a practical upgrade where comfort and reliability are essential.
Key Features:
- Mechanical suspension with 90 mm (3.54 inches) of travel for shock absorption
- 150 mm (5.91 inches) slide rail travel for straightforward fore-aft positioning
- Three-stage height adjustment up to 60 mm (2.36 inches) for ergonomic setup
- Manual weight adjustment to match operator mass for consistent ride comfort
- Adjustable backrest angle and lumbar support to reduce fatigue
- Right‐hand side seat belt provision; belt not included
- Durable fabric trim for long-lasting wear in dusty, muddy environments
- Supportive cushioning and contoured base for stable seating during manoeuvres
- Simple to fit on machines that accept slide-rail mounted seats (check brackets)
- Low-maintenance mechanical design with no electrics to service
Typical Applications:
Direct replacement or upgrade seat on mini excavators, telehandlers, and backhoe loaders used for digging, lifting, loading, trenching, and material handling. Suitable for construction sites, utilities maintenance, landscaping, groundwork, yard operations, and plant hire fleets where operators spend extended hours in the cab and require consistent comfort and support.
Also known as:
Plant machinery seat, suspension operator chair, mini digger seat, construction cab seat, machinery operator chair, compact plant seat, handler cab seat, suspension driver seat, equipment seat, machinery seating.
Product Specifications
| L&S Part No. | 084 085 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Excavators, Telehandlers |
| Key Features | - Mechanical suspension with 90 mm travel for shock absorption - 150 mm slide rail travel for fore-aft positioning - Three-stage height adjustment up to 60 mm - Manual weight adjustment for consistent ride comfort - Adjustable backrest angle and lumbar support |
