Description
Overview:

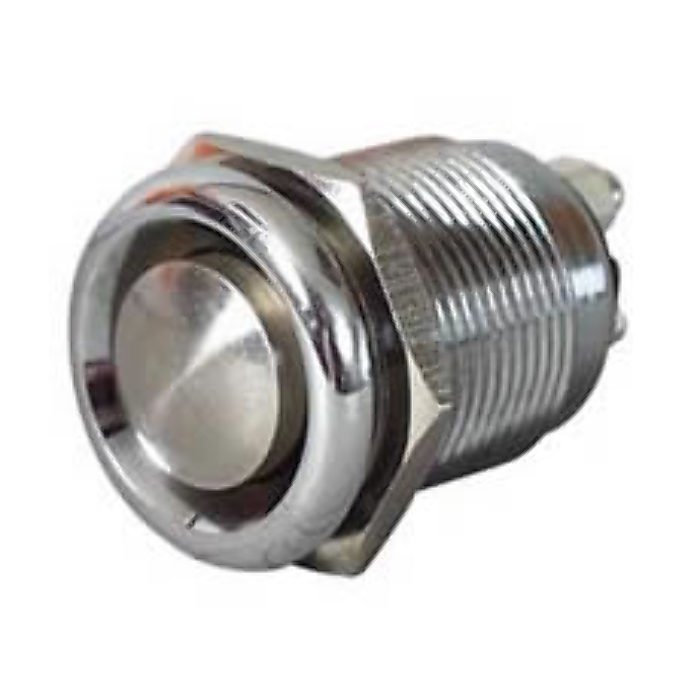

The Metal Momentary On Push Switch is a robust, panel‐mount switch from Durite for temporary circuit activation on vehicles, plant, machinery, and electrical control panels. Built with a stainless steel button and a nickel‐plated brass body, it offers long service life and resistance to wear and corrosion. The switch has a momentary (spring‐return) push‐to‐make action, so the circuit is only made while the button is pressed. Rated at 6A, 12V DC, it suits most 12V systems found across automotive and industrial applications. A 19mm panel hole is required for fitting, making it a common, easy‐to‐source size for retrofits and new builds. Screw terminals provide a secure and straightforward wiring method. Genuine Durite part number 0-485-03 ensures consistent quality and reliability.
Key Features:
- Genuine Durite part for assured quality and consistency
- Momentary (spring‐return), non‐latching push‐to‐make action for safe, temporary control
- Rated 6A at 12V DC for common 12V vehicle and machinery systems
- Fits a standard 19mm panel cut‐out for easy installation and replacement
- Stainless steel button with nickel‐plated brass body for durability and corrosion resistance
- Screw terminals for secure, serviceable connections
- Compact, round metal bezel suits dashboards, switch panels, and enclosures
- Suitable for frequent use in demanding environments
Typical Applications:
Used for start, horn, test, reset, or auxiliary function control on vehicles, plant machinery, agricultural equipment, boats, and static control panels. Ideal where a temporary contact is needed, such as energising relays, triggering control circuits, or performing momentary overrides during setup, testing, and diagnostics.
Also known as:
Pushbutton switch, NO (normally open) push switch, spring‐return button, momentary contact pushbutton, start button, panel‐mount push switch, PB switch.
Alternate Part Numbers:
0-485-03, 048503
Product Specifications
| L&S Part No. | 125 2564 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Durite |
| OEM No. | 0-485-03 |
| Unit of Sale | Each |
