Description
Overview:

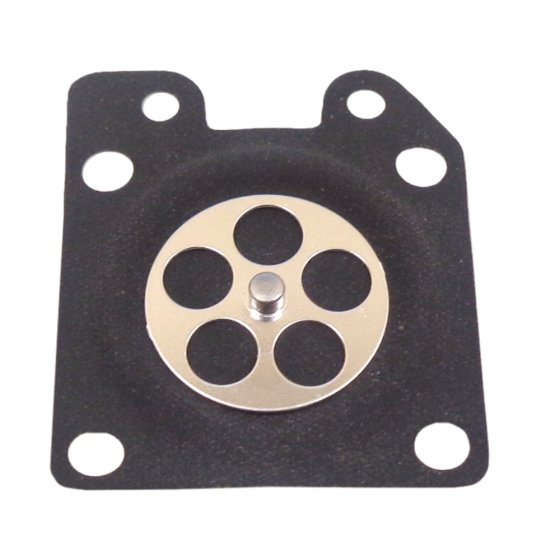

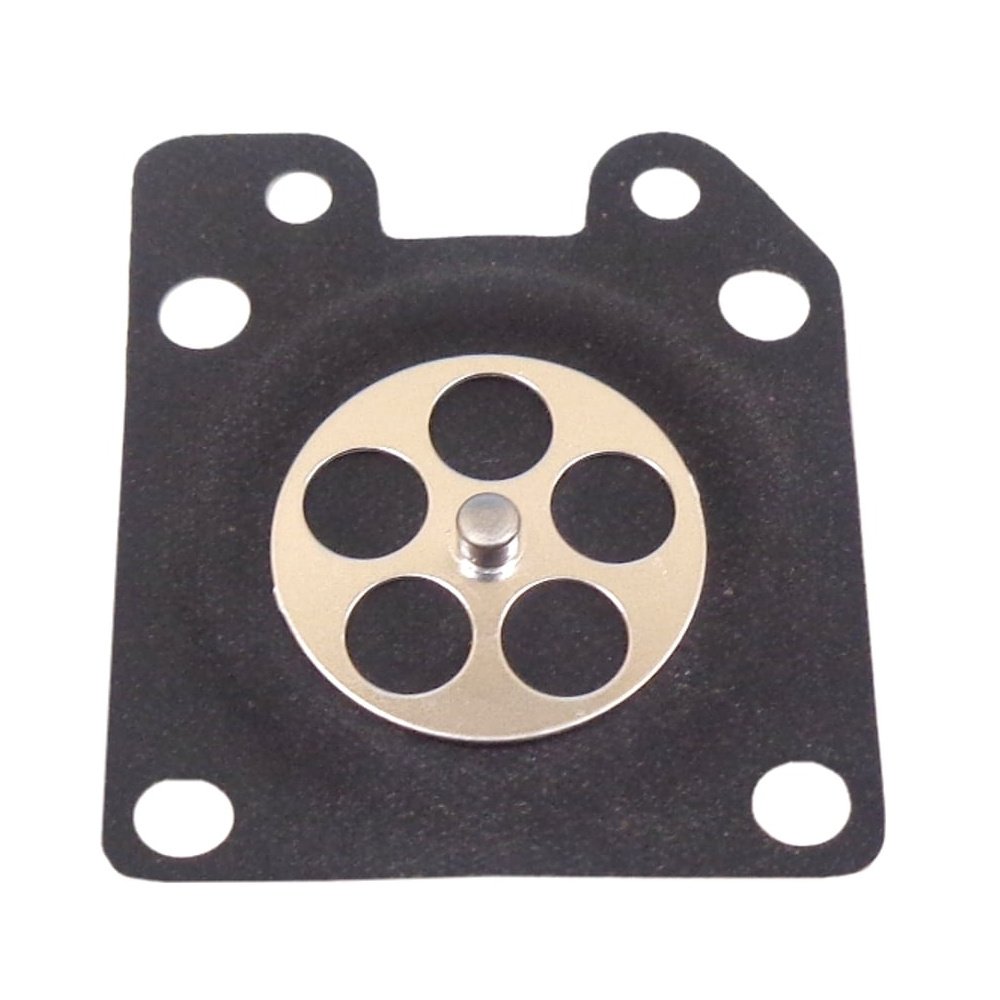

This genuine Husqvarna metering diaphragm (MPN 503 89 67-01 / 503896701) is a thin, fuel‐resistant membrane that controls fuel delivery inside the carburettor. By regulating the metering needle, it keeps the fuel‐to‐air ratio stable for reliable starting, clean acceleration and consistent running. Made from durable elastomer composite suitable for petrol use, it is a direct replacement part designed for small Husqvarna 2‐stroke machines. It is commonly used on chainsaws such as the Husqvarna 136 and 141, and also fits selected trimmers, brushcutters and blowers in the 225, 227 and 240 series. As a genuine part, it maintains factory performance and helps extend the service life of your equipment when carrying out a routine carburettor overhaul.
Key Features:
- Genuine Husqvarna OEM diaphragm for accurate, consistent fuel metering
- Direct-fit replacement: restores correct carburettor function with no modification
- Helps cure hard starting, bogging, poor throttle response and hunting idle
- Durable fuel‐resistant construction for long service in demanding conditions
- Supports smooth idle, clean pick‐up and full‐load power under varied workloads
- Suitable for routine carburettor service on compatible Husqvarna 2‐stroke machines
- Clearly identified by OEM No. 503 89 67-01 (alternate 503896701) for easy matching
- Compatible with popular models including 136 and 141, plus selected 225/227/240 series
Typical Applications:
Used during carburettor maintenance to restore proper fuel control on Husqvarna chainsaws, trimmers, brushcutters and blowers. Ideal when addressing running issues after long storage, replacing aged or stiff membranes, or as part of a full carburettor rebuild to maintain reliable everyday performance.
Also known as:
Metering membrane, carb diaphragm, fuel metering membrane, carburettor gasket‐diaphragm, metering film, diaphragm membrane for small 2‐stroke carburettors.
Fits Models:
132R
132RJ
133R
136
141
225 AI 15
225 AI 25
225 E
225 L
225 LD
225AI15
225AI25
225B
225BV
225E
225H60
225H75
225HBV
225L
225LD
225R
225RD
225RJ
227 L
227 LD
227L
227LD
227R
227RD
227RJ
23 COMPACT
232R
232RBD
232RD
232RJ
235FR
235P
235R
235RII
23COMPACT
240
240 L
240L
240RBD
240RJ
245
245R
245RX
333
335XPT
Alternate Part Numbers:
503 89 67-01, 503896701
Product Specifications
| L&S Part No. | 503 89 67 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503896701 |
| Unit of Sale | 1 |
| Applications | 132R, 132RJ, 133R, 136, 141, 225 AI 15, 225 AI 25, 225 E, 225 L, 225 LD, 225AI15, 225AI25, 225B, 225BV, 225E, 225H60, 225H75, 225HBV, 225L, 225LD, 225R, 225RD, 225RJ, 227 L, 227 LD, 227L, 227LD, 227R, 227RD, 227RJ, 23 COMPACT, 232R, 232RBD, 232RD, 232RJ, 235FR, 235P, 235R, 235RII, 23COMPACT, 240, 240 L, 240L, 240RBD, 240RJ, 245, 245R, 245RX, 333, 335XPT |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Fits Models | 136 | 225H60 | 225H75 | 235P | 141 | 23 COMPACT | 333 | 335XPT | 132R | 132RJ | 133R | 225R | 225RD | 225RJ | 227RD | 227R | 227RJ | 232R | 232RD | 232RJ | 235FR | 235R | 235RII | 240 | 240RBD | 240RJ | 245 | 245R | 245RX | 225B | 225BV | 225HBV | 225 E | 225 L | 225 LD | 227 L | 227 LD | 240 L | 225 AI 25 | 225 AI 15 |
