Description
Overview:

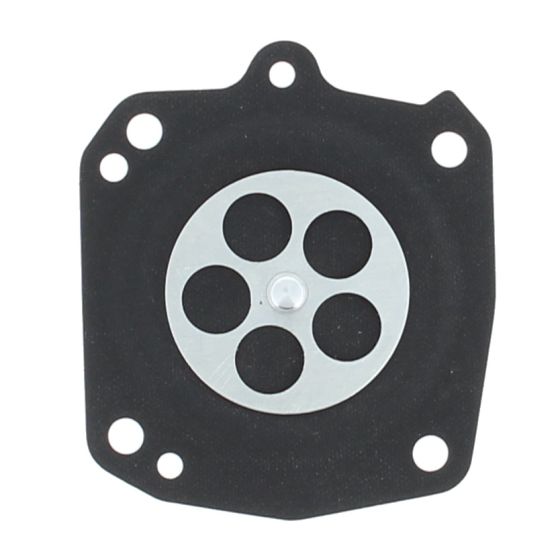

This Metering Diaphragm is a Genuine Stihl part that regulates fuel delivery inside the carburettor to keep your machine running smoothly and efficiently. Made from fuel‐resistant elastomer with fabric reinforcement, it maintains flexibility and sealing under heat and vibration, even in demanding conditions. By controlling the needle/lever action, it helps deliver the correct fuel‐air mix from idle to full load. Designed for Stihl cutting tools, it suits both disc cutters and chainsaws, including the TS700 and 056. Choosing a genuine component helps ensure proper fit and consistent performance, reducing the likelihood of tuning issues and restoring reliable starting, clean acceleration and stable running after wear or long storage.
Key Features:
- Genuine Stihl replacement for assured compatibility and quality
- Precise fuel metering for stable idle, clean throttle response and full power
- Fuel‐resistant materials for durability with modern pump fuels
- Fabric-reinforced membrane helps resist stretching, tearing and deformation
- Helps cure symptoms of a stiff or damaged diaphragm (hard starting, bogging, flooding)
- Easy to fit during routine carburettor servicing; straightforward, no special tools
- Supports reliable performance in high‐duty environments and frequent stop/start use
- Suitable for use across multiple Stihl machines to simplify spares holding
Typical Applications:
Used during carburettor maintenance or rebuilds on Stihl disc cutters and chainsaws to restore correct fuel control. Ideal after long storage, when fuel has aged, or when engines show poor idle, hesitation, or rich/lean running. Common on site for cut‐off saw servicing and in workshops maintaining forestry and grounds equipment.
Also known as:
Metering membrane, fuel control diaphragm, carb metering diaphragm sheet, regulator diaphragm for carburettor, fuel metering membrane.
Fits Models:
041, 041AV, 041FB, 041G, 045, 050, 051, 056, 075, 076, 084, 088, FS20, FS360C, FS410, FS410AV, FS410C, MS880, P835, P840, TS400, TS460, TS50, TS510, TS700, TS760, TS800
Alternate Part Numbers:
1110 121 4700, 11101214700
Product Specifications
| L&S Part No. | 1110 121 4700 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 11101214700 |
| Unit of Sale | 1 |
| Applications | 041, 041AV, 041FB, 041G, 045, 050, 051, 056, 075, 076, 084, 088, FS20, FS360C, FS410, FS410AV, FS410C, MS880, P835, P840, TS400, TS460, TS50, TS510, TS700, TS760, TS800 |
| Machine Type | Disc Cutters, Chainsaws, Brushcutters |
| Fits Models | TS400 | TS700 | TS510 | TS460 | FS360C FS410C | TS50 | FS20 | FS410AV (old model) | TS800 | MS880 | 041 | 050, 051 | 056 | 076 | 075 | 084 | 088 | 045 | P835, P840 | TS760 |
