Description
Overview:

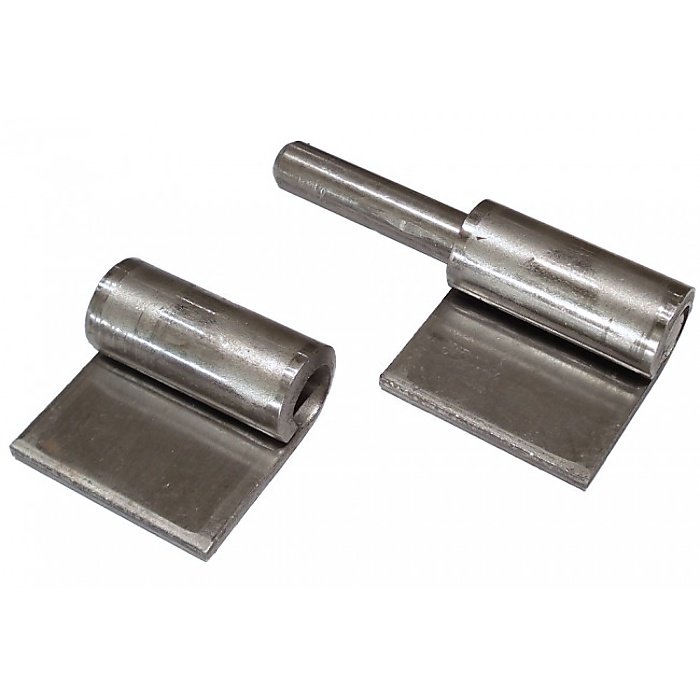

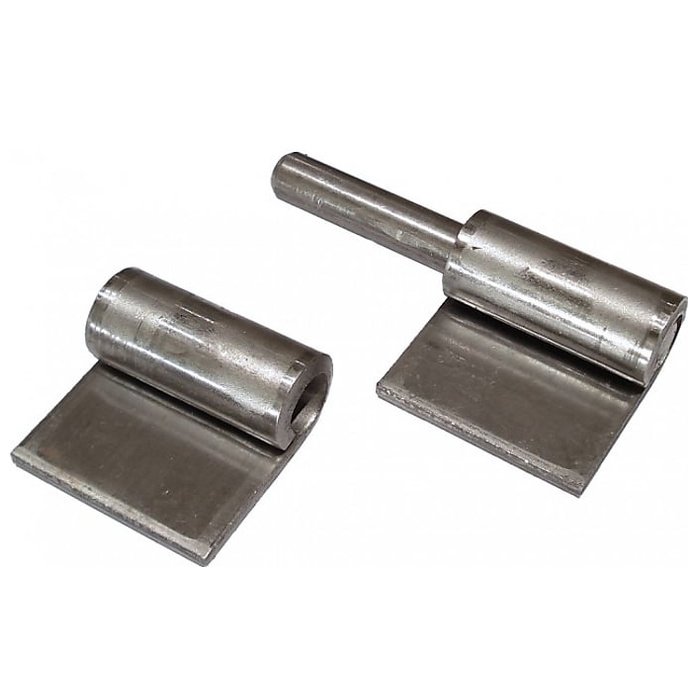

The Mild Steel Lift Off Hinge - 102mm x 76mm is a robust, loose-joint hinge for doors and access panels that need to be removed quickly without undoing fixings. Manufactured from durable mild steel, it has 4.5mm thick leaves and a 12.7mm (0.5 inches) pin for solid alignment and repeatable, wobble-free refitting. Dimensions suit many cabinet and door applications: 102mm (4 inches) length and 76mm (3 inches) open width. Commonly used on plant and machinery guards, site storage cabinets, service hatches, workshop doors, and utility enclosures in industrial and residential settings. Fit with appropriate screws or bolts to suit timber, steel, or composite frames. Manufacturer Part Number (MPN): 803 207. Check the hand of your door (left or right) to ensure the correct orientation for installation.
Key Features:
- Durable mild steel construction for dependable everyday use in busy environments
- Lift-off design enables tool-free removal and refitting of doors and panels for fast access
- 102mm (4 inches) length and 76mm (3 inches) open width suit common doors, cabinets, and enclosures
- 4.5mm leaf thickness with 12.7mm (0.5 inches) pin diameter for stable alignment under frequent cycling
- Smooth knuckle action for easy lift-off and accurate realignment
- Countersunk fixing holes allow a flush fit with standard wood screws or machine screws (select to suit substrate)
- Suitable for timber, steel, and composite doors and frames when used with appropriate fixings
- Practical choice for maintenance-heavy setups where quick, safe access is required
- Compact form factor fits narrow frames and machinery panels without interfering with operation
- Identified by MPN 803 207 for straightforward reference and reordering
Typical Applications:
Access doors and inspection panels on generators, compressors, and plant enclosures; machine guards in workshops; site tool cabinets and storage boxes; service hatches, utility cupboards, and indoor gates where panels are removed regularly for cleaning, inspection, or repair. Suitable for both industrial and residential use when a reliable, quickly detachable hinge is preferred.
Also known as:
Loose joint hinge, take-apart hinge, detachable hinge, split hinge, butt hinge (lift-off type), cabinet lift-off hinge, service panel hinge, access hatch hinge, lift-off butt, machine enclosure hinge.
Product Specifications
| L&S Part No. | 803 207 |
|---|---|
| Unit of Sale | 1 |
| Size | Length: 102mm Open Width: 76mm Thickness: 4.5mm Pin Diam: 12.7mm |
