Description
Overview:

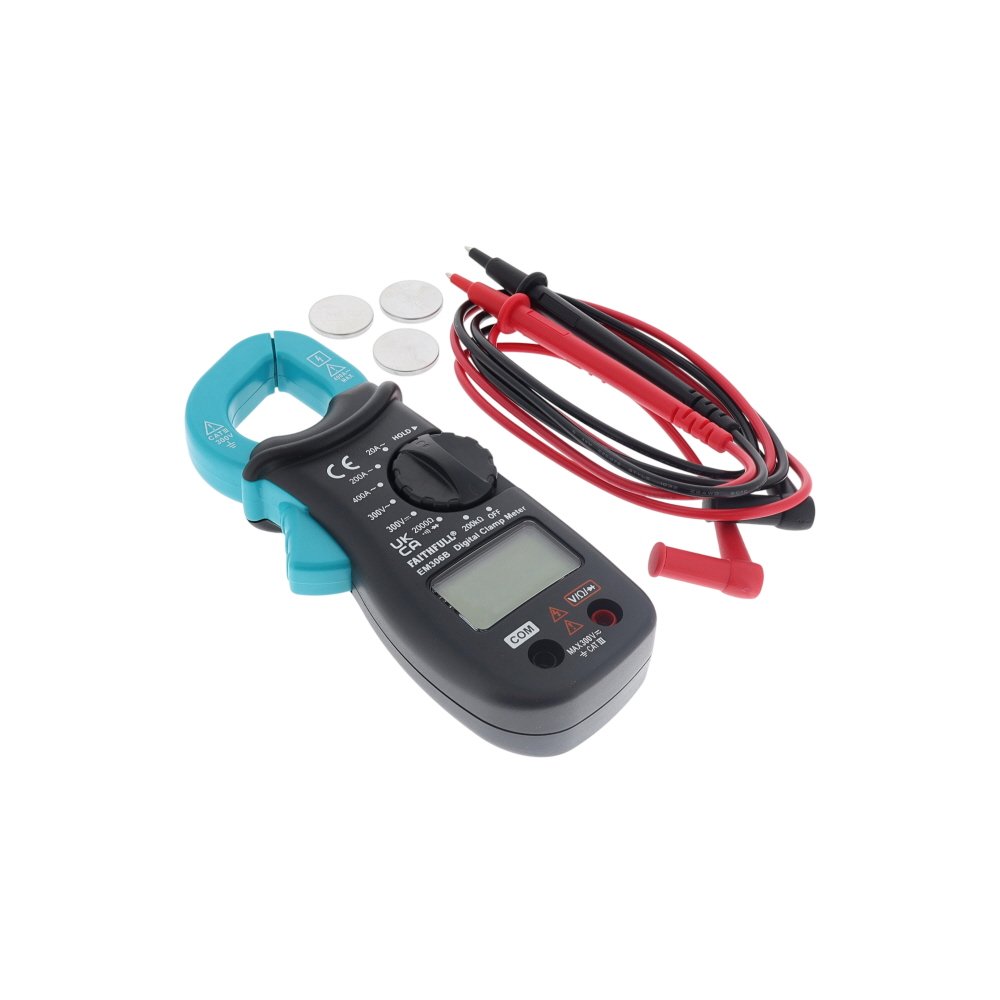

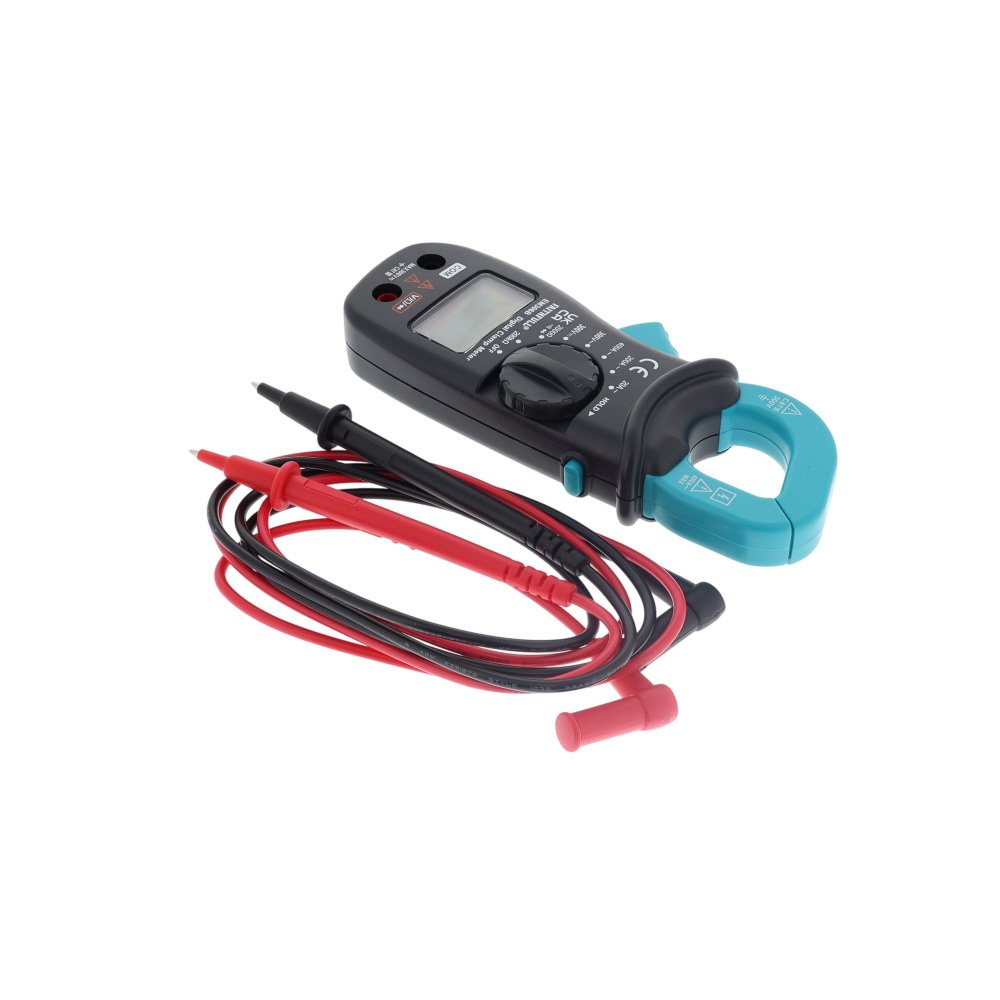

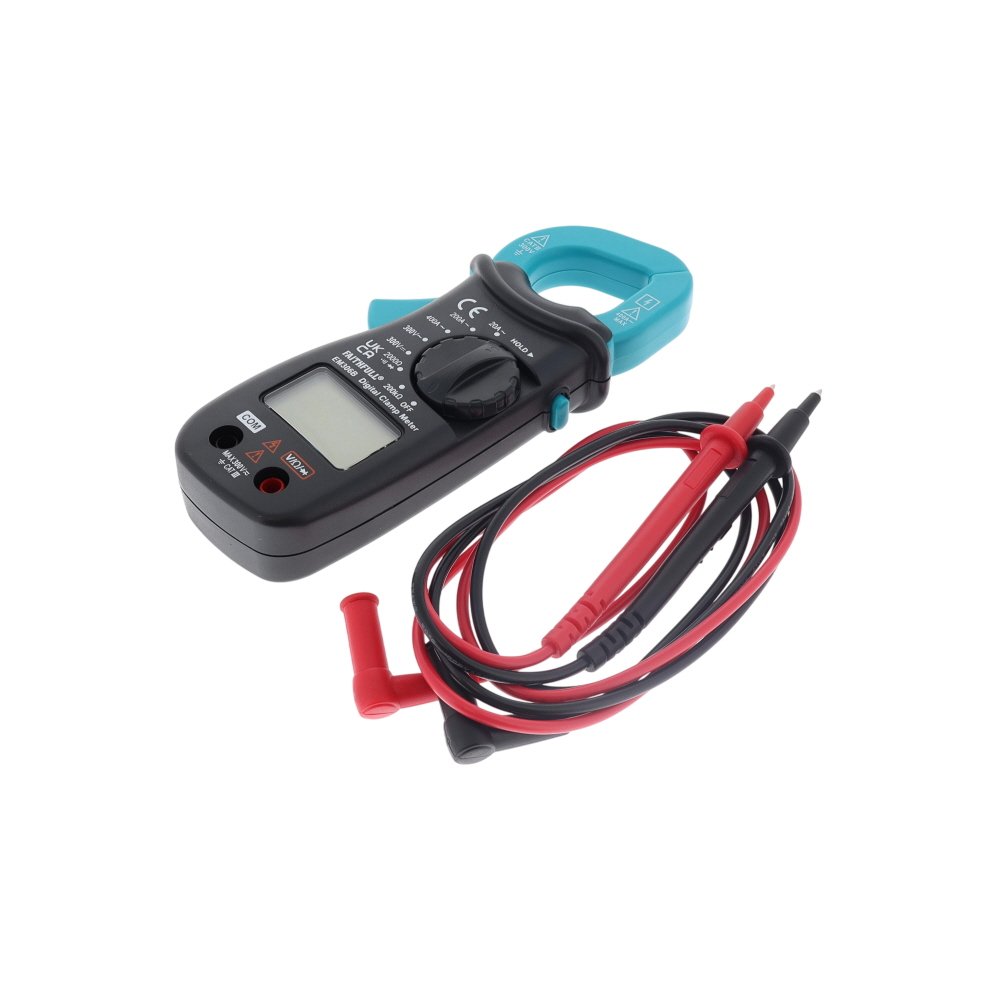

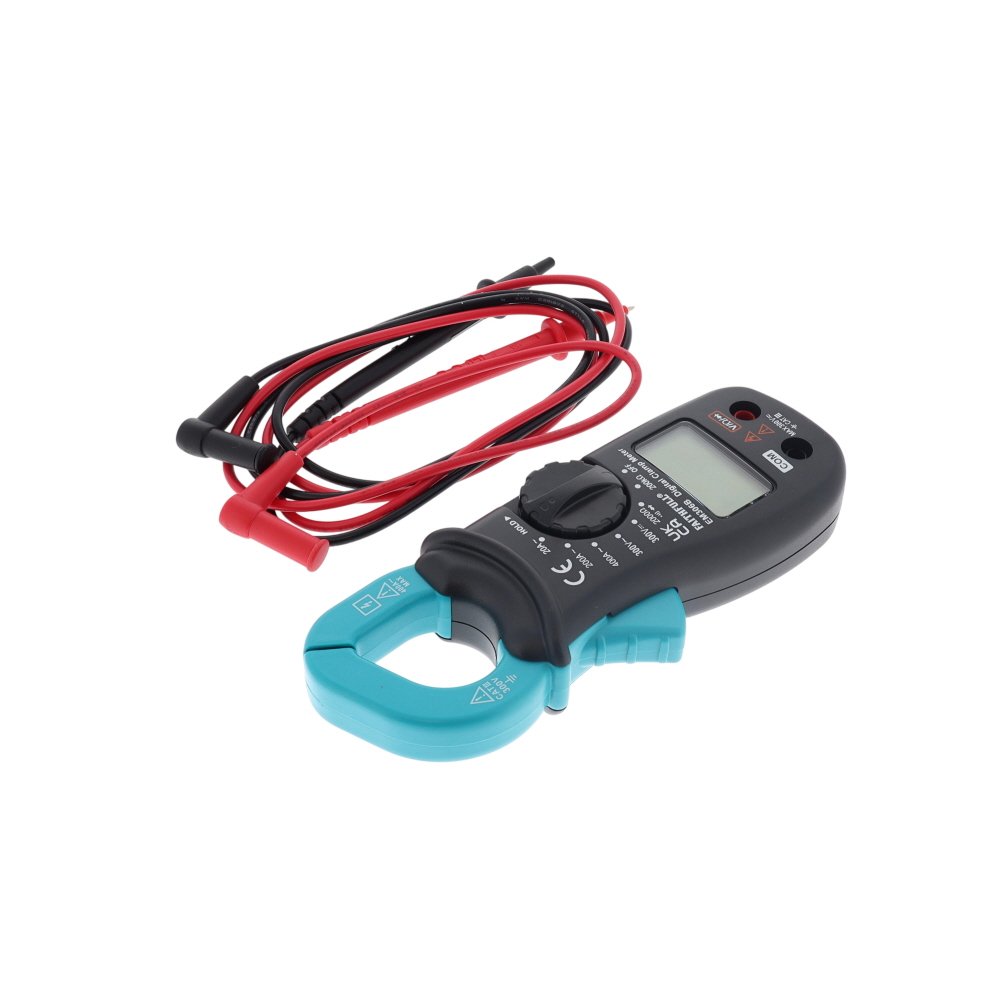

The Faithfull Mini Clamp Meter is a compact electrical testing tool suitable for various applications including laboratories, factories, warehouses, and homes. This versatile instrument merges the functionality of a digital multimeter with a current sensor, allowing precise current measurement via its clamp and voltage measurement through probes. Constructed with a robust setup, it is tailored to help professionals and DIY enthusiasts measure AC/DC voltage, AC current, resistance, and diodes effortlessly. The tool is equipped with a 3.1/2 digit LCD display and includes a data hold function for convenient reading.
Key Features:
- Measures DC voltage up to 300V with 9MΩ input impedance
- AC voltage handling up to 300V, frequency response from 40~400Hz
- AC current measuring capacity: 20/200/400A with a frequency range of 50~60Hz
- Resistance measurements: 2000/200kΩ range
- Diode check resolution: 1mV with approximately 3V open circuit voltage
- Continuity testing for resistance less than 30Ω
- Compact 25mm clamp capacity
- Dimensions: 151 x 65 x 34mm, weight: approx. 125g

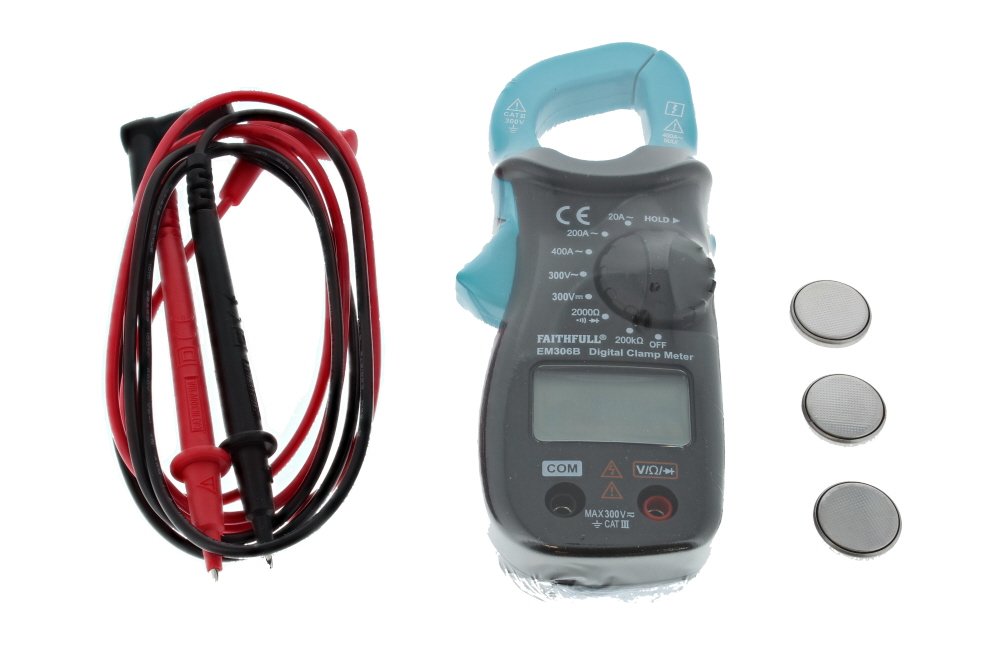

- Powered by 3 x 3V CR2032 batteries (included)
Typical Applications:
The Faithfull Mini Clamp Meter is optimally used in environments requiring monitoring of electrical systems, such as factories and laboratories. It is also highly functional for home users needing to measure various electrical components, ensuring safe and accurate readings in equipment maintenance and repair tasks.
Also known as:
Miniature Clamp Meter, Current Clamp Multimeter, Digital Clamp Meter, Electrical Clamp Tester.
Product Specifications
| L&S Part No. | FAIDETCLAMP |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Measures AC current up to 400A. - Digital display with data hold function. - Measures AC/DC voltage up to 300V. - Includes batteries and test leads. - Compact size: 151 x 65 x 34mm. |
